BENEFITS
- Compact housing requires less space
- Multiple mounting points for easy integration
- Advanced design provides superior wet and dry print capture
- Intuitive instructions via external screen
- Fully certified and ready for integration

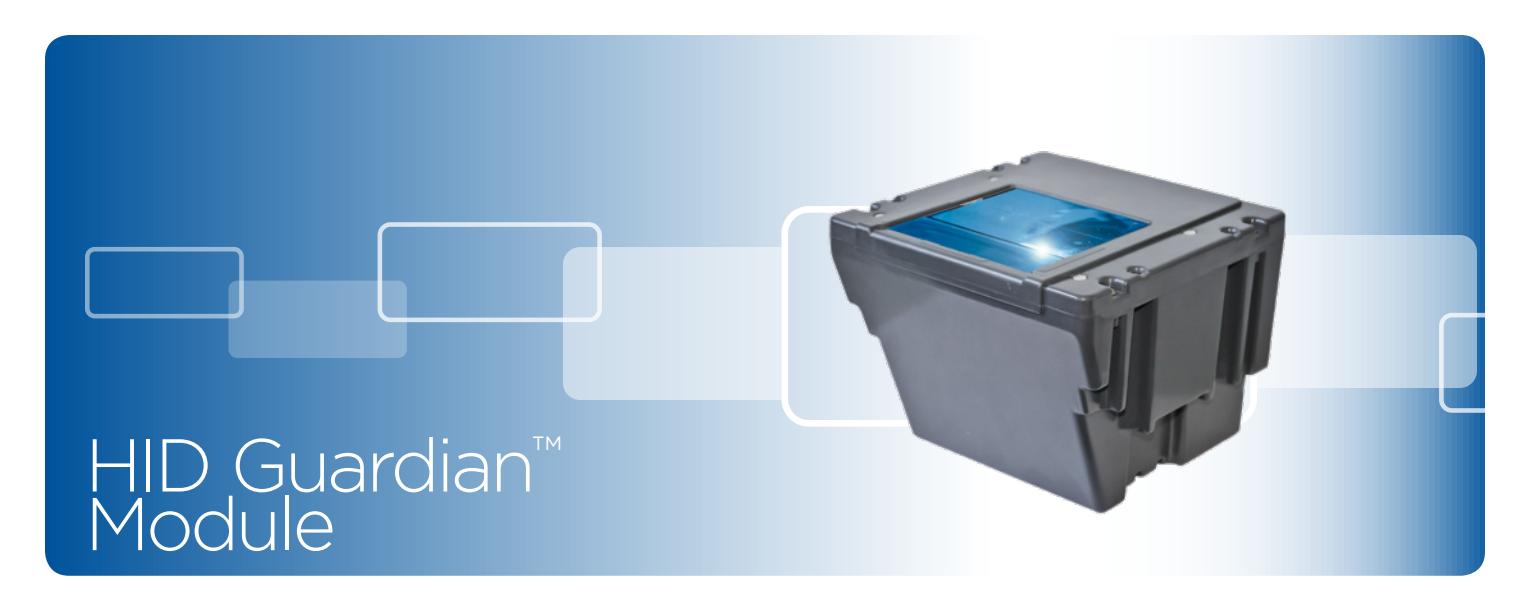

APPENDIX F CERTIFIED TENPRINT LIVESCAN MODULE
Leveraging industry leading technology that has made the HID Guardian product line the benchmark in tenprint livescan, the new Guardian Module has been designed and built for integration into the most advanced biometric identity management kiosks, e-Gates, and workstations. Delivering the same superior performance and reliability, with all the features of the new Guardian, the Guardian Module has a minimalist profile, multiple mounting points, and a flush platen for seamless incorporation into a surrounding housing.
The Guardian Module combines the latest HID Global optical design, illumination and software to accurately and rapidly capture quality images from both wet and dry fingers without the need to
recalibrate. This capability proves essential when processing large volumes of individuals as no further conditioning is required to complete the capture process. The interactive user guidance intuitively prompts the applicant with universal pictograms to indicate proper finger sequencing, positioning and pressure. These enhanced features not only improve the user experience, but dramatically reduce the time required to capture high quality prints and process the applicant.
Ideally suited for integration into kiosks, e-Gates, or workstations for border control, national ID, and other expedited, high volume or unattended processing applications, the Guardian Module delivers enhanced security, proven reliability and a reduced total cost of ownership.
SPECIFICATIONS
Best image quality from dry and wet fingers
Multiple mounting points
Flush-mount housing for seamless integration
| Product Name | HID Guardian™ Module |
|---|---|
| Image Resolution | 500 ppi |
| Image Greyscale | 8 bit, 256 |
| Dimensions |
6" x 4.8" x 6.2"
(15.24 cm x 12.19 cm x 15.75 cm) |
| Capture Platen | 3.2" x 3.3" (8.13 cm x 8.38 cm) |
| Weight | 3.0lbs (1.4 kg) |
|
Operating
Temperatures |
32°F to 122°F (0° C to +50° C) |
| Power Supply | USB |
|
Ingress Protection
Rating |
IP 31 |
| Operating Systems |
Windows® XP 32-bit; Windows 7/8.1/10 32 and
64-bit |
| Certifications |
FBI EBTS Appendix F, UL, IEC, DIN, FCC, CE,
RoHS |
| Device Interface | USB 2.0 high speed |
| BIOMETRIC CAPTURE | |
| Fingerprint | Flats and Rolls |
| Capture Features |
Auto-Capture, FlexFlats, FlexRolls, wet and dry
finger image capture without pretreatment of hands or device recalibration |
| Image Quality | FBI Appendix F, Livescan and ID Flat |
| APPLICATIONS | |
| Software |
HID Crossmatch L Scan™ Master (optional)
HID Crossmatch L Scan Essentials SDK (included) |
| SDK | HID Crossmatch L Scan Essentials SDK 7.0 or later |
Data subject to change without notice.
