Glass Tag Mini

Safe, reliable, effective micro-sized tags for small pets and lab animals

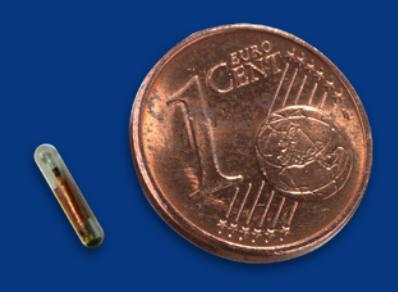

Smaller than a grain of rice, the HID Global Glass Tag Mini transponder delivers big performance. Patented HID direct-bonding technology enables the compact tag design and optimized read range featured in the Glass Tag Mini. This tiny tag implants subcutaneously with minimal invasiveness. Even small animals, like fish and mice, will experience negligible injection trauma and excellent acceptance. The enclosed technology chip meets ISO 11784-85.

As with the entire line of Glass Tag contactless RFID transponders, HID employs fully automated processes to ensure consistent quality and reliability. Standard Glass Tag units are enclosed in biocompatible glass, making them harmless to animals. The optional parylene coating improves and accelerates tissue adhesion, preventing the movement of tags implanted subcutaneously.

Veterinary professionals trust Genuine HID™ quality transponders for implantation. Glass Tag units perform reliably over the long term, minimizing the potential for traumatic tag removal and replacement procedures. The Glass Tag Mini tag is the smallest tag in HID Global's broad glass tag portfolio. The variety of sizes available ensures HID has a tag available to fit any animal, from fish and small mammals to cats, dogs, goats, sheep and horses.

For further information, contact tagsales@hidglobal.com

KEY BENEFITS:

• Unsurpassed quality Fully automated manufacturing and direct-bonding technology ensure tag reliability
• Smallest subcutaneous tag Minimal injection perforation ensures fast animal recovery and excellent acceptance
• Optimum operation The highest out-of-box performance ratings in the industry

T E C H N O LO G Y H I G H L I G H T S :

• Less than 1/3 in (8 mm) long; thinner than a grain of rice
• ISO 11784 and ISO 11785 compliant
• Bioglass capsules with optional parylene coating ensure optimal biocompatibility
• Unlimited resistance to water and chemical absorption
• 512 bit user memory

Glass Tag Mini

HID Global can create a custom tag solution to fit your application requirements for chip type, dimensions, programming and materials.

APPLICATION AREAS:

• Animal Identification
  • Laboratory and exotic animals: - Mice, Rats, Fish, Ferrets...etc.
  • Small pets:
    • Cats, Dogs, Birds...etc.

• Industry & Logistics

• Custom enclosure
• Inventory tracking
• Warranty validation
• Equipment calibration

Glass Tag Mini

Base Model Number	684290
	ELECTRONIC
Operating Frequency	134.2 kHz*
Chip Type	EM 4305
Memory	512 bit EEPROM
Reading Distance	Dependent upon reader, environment and application
	PHYSICAL
Dimensions	Ø 0.05 x 0.31 in (Ø 1.4 x 8 mm)
Tagging Method	Subcutaneous
Housing Material	Bioglass
Weight	0.001 oz (0.03 g)
	CHEMICAL AND MECHANICAL RESISTANCE
Water IP68	IP68, 68° F (20° C), 3.3 ft (1 m) x 24 h
Withstands Exposure To	Alcohol, ammonium chloride 25%, fuel B, hydrochloric acid 10%, saltwater
Environmental Test Conditions	68° F (20° C), 100 h
Vibration	IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h] IEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times]
Shock
	THERMAL
Storage	-40° to +158° F (-40° to +70° C)
Operating	-40° to +158° F (-40° to +70° C)
Peak	248° F (120° C), 100 h; 284° F (140° C), 10 h
	OTHER
Standards	ISO 11784, ISO 11785
Options	Parylene coating (when ordering coating, increase base model number by one), custom programming
Box Size	5.000 pcs.
Warranty	2 years

*Also available in 125 kHz, ATEX certified for industrial applications, model number 684294.
