View PDFFARGO® HDP®600ii High Definition Card Printer/Encoder
Model: X002200-003
User Guide
PLT-05146, A.1 August 2022
Copyright
© 2020 - 2022 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
This document may not be reproduced, disseminated or republished in any form without the prior written permission of HID Global Corporation.
Trademarks
HID GLOBAL, HID, the HID Brick logo, the Chain Design, FARGO, HDP, SecureMark, UltraCard, and OMNIKEY are trademarks or registered trademarks of HID Global, ASSA ABLOY AB, or its affiliate(s) in the US and other countries and may not be used without permission. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
Contacts
For technical support, please visit: https://support.hidglobal.com .
What's new
| Date | Description | Revision |
|---|---|---|
| August 2022 | Updated specifications for print ribbon and HDP film options. | A.1 |
A complete list of revisions is available in Revision history .
| Specifications | 4 |
|---|---|
| 1.1 Specifications overview | 5 |
| 1.2 Regulatory compliance | 5 |
| 1.2.1 United States | 5 |
| 1.3 Safety messages-United States | 6 |
| 1.4 Technical specifications | 7 |
|
Setup
and installation |
9 |
| 2.1 Setup and installation overview | 10 |
| 2.2 Selecting a good location | 10 |
| 2.3 Moisture condensation | 10 |
| 2.4 Unpacking and inspection | 10 |
| 2.5 Installing the HDP film | 11 |
| 2.6 Installing the print ribbon | 14 |
| 2.7 Installing the cleaning roller | 17 |
| 2.8 Installing blank cards into the input card hopper | 18 |
| 2.8.1 General card information | 20 |
| 2.9 Connecting the Ethernet cable | 21 |
| 2.10 Connecting the power cable | 21 |
| Troubleshooting | 22 |
| 3.1 Troubleshooting overview | 23 |
| 3.2 Error message table | 23 |
| 3.3 Resolving common errors | 28 |
Section 01 Specifications
1.1 Specifications overview
This section provides specific information on the Regulatory Compliances, Agency Listings, Technical Specifications and Functional Specifications for the HDP®600ii card printer.
1.2 Regulatory compliance
| UL |
The card printer is listed under UL 60950-1 (2nd edition)
Information Technology Equipment. |
|
|---|---|---|
| File number: E145118 | ||
| FCC | The card printer complies with the requirements in Part 15 of the FCC rules for a Class A digital device. | |
| Emissions and Immunity | FCC Part 15 Class A. | |
| Standards | ||
| Safety Standards | UL IEC 60950-1 (2nd edition). | |
1.2.1 United States
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
- l This device may not cause harmful interference.
- l This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference; in which case, you are required to correct the interference at your expense.
Important: Changes or modifications to an intentional or unintentional radiator not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING DIISONONYL PHTHALATE (DINP), WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV.
1.3 Safety messages-United States
Symbol Critical instructions for safety purposes
Danger Failure to follow these guidelines results in personal injury or death. To prevent personal injury or death, reference the following safety messages before performing an operation:
- l Always remove the power cord prior to performing repair procedures, unless otherwise specified.
- l Ensure only qualified personnel perform these procedures.
ESD This device is electrostatically sensitive. Damage to the device may occur if it is exposed to static electricity discharges. To prevent damage, reference the following safety messages before performing an operation:
- l Observe all established Electrostatic Discharge (ESD) procedures while handling cables in or near the circuit board and print head assemblies.
- l Always wear an appropriate personal grounding device.
- l Always remove the ribbon and cards from the printer before making any repairs, unless otherwise specified.
- l Remove jewelry and thoroughly clean hands before working on the printer.
Caution This symbol warns of an electrical hazard that could result in personal injury or death.
Caution For safety purposes, do not use Ethernet for a direct connection outside of the building.
Warning This symbol warns of a hot surface that could result in personal injury.
1.4 Technical specifications
| Component | Description |
|---|---|
| Card cleaning |
Replaceable cleaning roller (included with each print ribbon). Recommended cleaning cycle
after 2,000 cards. |
| Card materials and types |
Press polished PVC
l Composite (PET/PVC with PVC as an outer layer) l Laminated PVC (credit card construction) l 100% PETG l 100% Polycarbonate l |
| Card sizes supported |
These card printers accept standard CR-80 sized cards (3.370" L x 2.125" W / 85.6 mm L x 54
mm W) with a thickness of 30 mil. |
| Dimensions (H x W x D) | Printer with dual-sided module: 11.50" x 19.75" x 12" (292 mm x 501 mm x 305 mm) |
| Display | OLED graphical display |
| Encoding options |
Magnetic stripe: ISO compliant, dual high/low coercivity, Tracks 1 and 2
Contact/HF encoder: OMNIKEY® 5122 |
| HID Global certified supplies |
The HDP600ii printer requires highly specialized print ribbons to function properly. To maximize
printer life, reliability, printed card quality and durability, you must use only HID Global certified supplies. For this reason, your HID Global warranty is void, where not prohibited by law, if you use non-HID Global certified supplies. To order additional materials, please contact your authorized reseller. |
| Hopper capacity—input | 100 cards, 30 mil—standard hopper |
| Hopper capacity—output | 200 card output hopper capacity, 30 mil |
| Interface |
Ethernet (100 Mbps) with internal print server
l Interfacing information for E-card options l |
| HDP film options | Clear film, 750 cards |
| HDP film storage temperature | 77° F (25° C) or lower for no longer than 1.5 years. |
| Memory | 1 GB |
| Operating conditions |
Operating temperature: 65 to 90° F (18 to 32° C)
Humidity: 20 to 80% non-condensing |
| Options |
Dual-sided module
l Magnetic stripe encoder l Contact / HF encoder l Printer cleaning kit l |
| Print area | Over-the-edge on CR-80 cards |
| Print colors | Up to 16.7 million and 256 shades per pixel |
| Print method | HDP dye-sublimation / resin thermal transfer |
| Print nodes | HDP600ii DPI print head only |
| Print resolution | 600 DPI |
| Component | Description |
|---|---|
| Print ribbon options | YMCKIKI*—400 cards per roll |
| *Indicates the ribbon type and the number of ribbon panels printed. | |
| Key: Y = Yellow, M =Magenta, C = Cyan, K = Resin Black, and I = Inhibitor Panel | |
| Print speed | YMCK—Up to 60 cards per hour/60 seconds per card |
| Power source voltage, current, and | Supply voltage / Current: 100 to 240V AC, 3.5A maximum |
| frequency | Supply frequency: 50 Hz and 60 Hz |
| Ship weight | Printer with dual-sided module: 24.50 lbs (11.11 kg) |
| Warranty | Printer: Three-years |
|
Three-year factory warranty
l |
|
|
Covers parts and depot repair
l |
|
|
On-Call-Express available for a fee (only available in the US).
l |
|
| Print head: Lifetime; unlimited pass with HID Global certified card |
Section 02 Setup and installation
2.1 Setup and installation overview
This section describes the setup and installation for the HDP600ii card printer.
2.2 Selecting a good location
The following guidelines help to ensure optimal printing performance:
- l Place the unit in a location with adequate air circulation to prevent internal heat buildup.
- l Use the dimensions of the printer as a guideline for the minimum clearances to the unit.
- l Allow for adequate clearance in front of the unit to accommodate the unit with its covers open.
- l Do not install the unit near heat sources such as radiators or air ducts or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.
2.3 Moisture condensation
If the unit is brought directly from a cold to a warm location or is placed in a a very damp room, moisture may condense inside the unit. Should this occur, print quality may not be optimal.
Leave the unit unplugged in a warm, dry room for several hours before using to allow any moisture to evaporate.
Caution: For safety purposes, Ethernet is not intended for a direct connection outside of the building.
Attention : Pour des raisons de sécurité, Ethernet n'est pas conçu pour une connexion directe à l'extérieur du bâtiment.
2.4 Unpacking and inspection
While unpacking the printer, inspect the carton to ensure that damage did not occur during shipping.
Make sure that all supplied accessories are included with the unit:
- l US power cable
- l Card input cartridge
- l Card output hopper
- l Ferrite
Make sure you have these accessories that are supplied separately:
- l HDP film
- l Print ribbon
- l Cards
2.5 Installing the HDP film
FARGO® High Definition printers require highly specialized supplies to function properly. This printer uses a refillable HDP film drawer. To maximize the printer durability, reliability and printed card quality, you must use only FARGOcertified supplies. If not using FARGO-certified supplies, your FARGO warranty is void, where not prohibited by law.

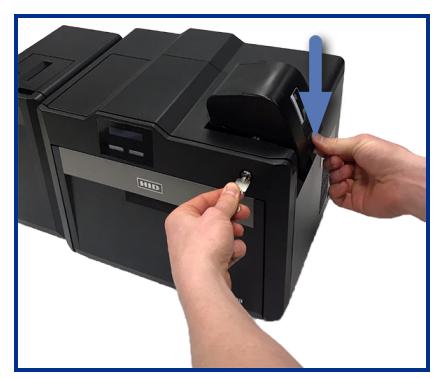

1. Use the supplied key to unlock the card input cartridge lock.

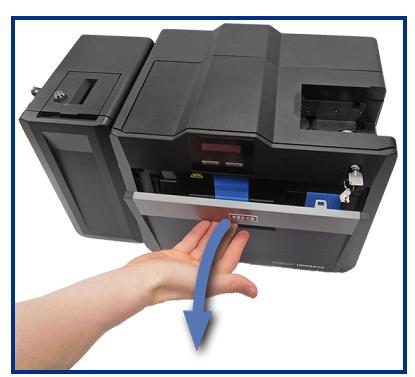

2. Open the front door.
3. Slide out the HDP film drawer by pulling on the gray handle.
Caution: Be careful not to touch the hot roller surface.

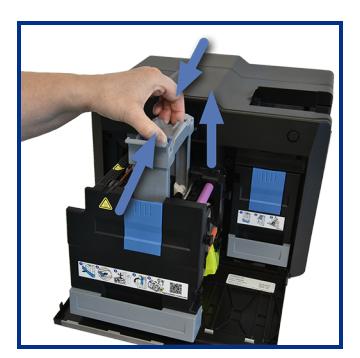

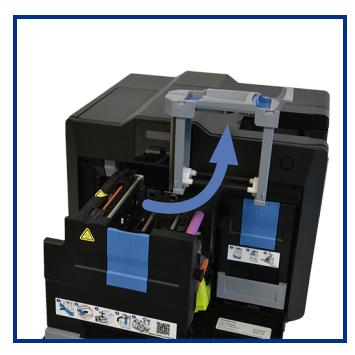

4. Unlatch and raise the accumulator unit.
5. Twist the accumulator unit 90° to the right.

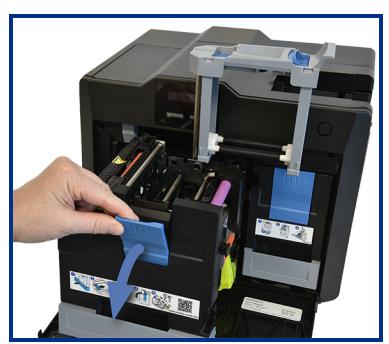

6. Pull down the HDP film loading handle.

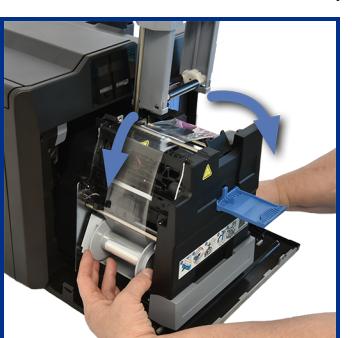

7. Load the HDP film, ensuring that each spool is correctly fitted to the corresponding color cartridge, and the film is not loose.
Used film should have used panels to the left of the purple roller and new panels to the right of the purple roller.

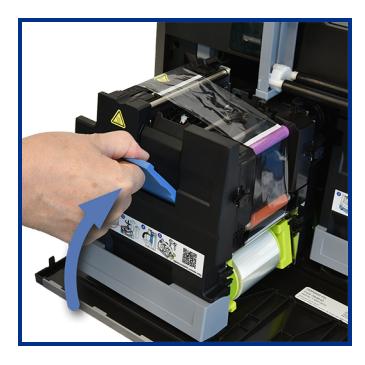

8. Push up the HDP film loading handle.

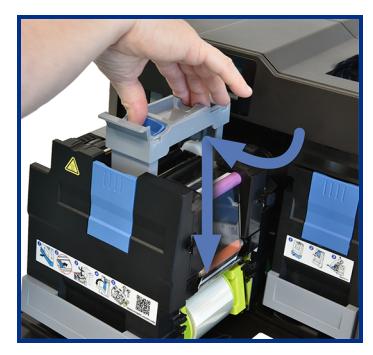

9. Twist the accumulator unit 90° to the left. Push down in the enter of the accumulator unit until it clicks into place.

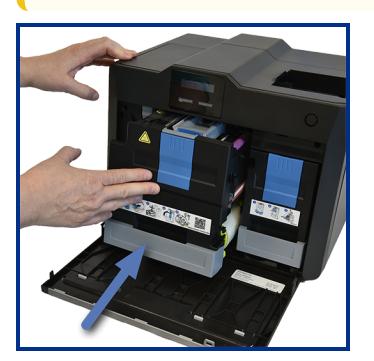

10. Slide the HDP film drawer in until the gray handle clicks/latches.
11. Close the printer front cover.
2.6 Installing the print ribbon
Important: Do not connect the power supply or communication cable (Ethernet) at this stage.
FARGO High Definition printers require highly specialized supplies to function properly. This printer uses a refillable ribbon drawer. To maximize the printer durability, reliability and printed card quality, you must use only FARGO-certified supplies. If not using FARGO-certified supplies, your FARGO warranty is void, where not prohibited by law.
Each print ribbon includes a replaceable cleaning roller. The recommended cleaning cycle is after every 2,000 cards printed.

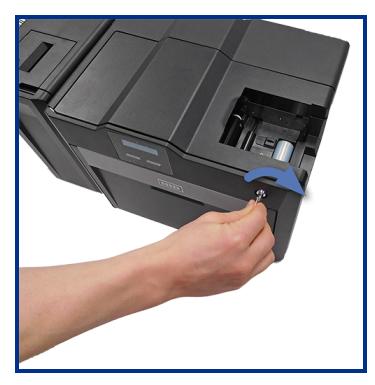

1. Use the supplied key to unlock the card input cartridge lock.
2. Open the front door.

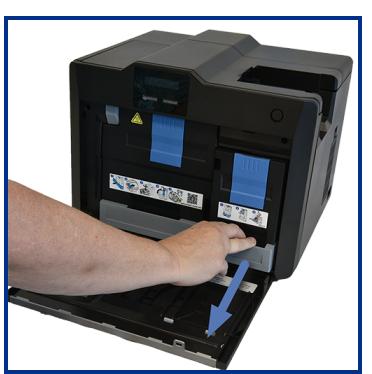

3. Slide out the ribbon drawer by pulling on the gray handle.

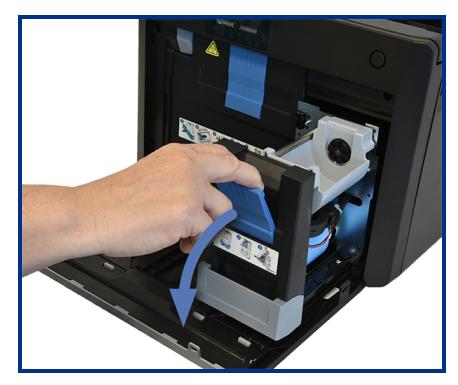

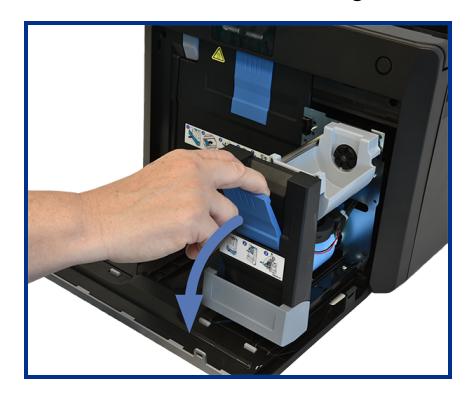

4. Pull down the ribbon loading handle.
5. Pull down the ribbon loading handle.

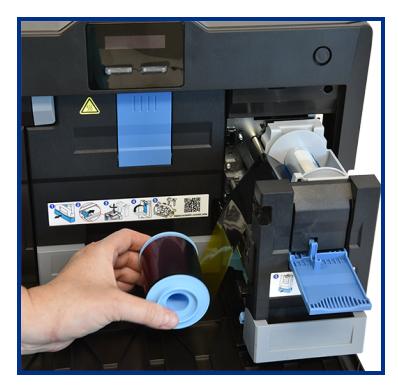

6. Load the ribbon, ensuring that each spool is correctly fitted to the corresponding color cartridge, and the ribbon is not loose.

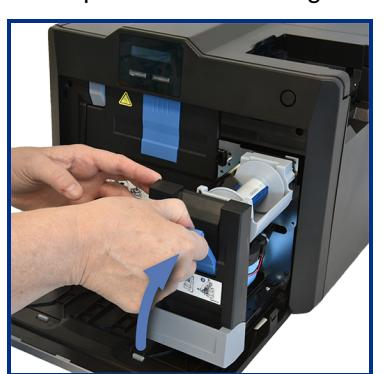

7. Push up the ribbon loading handle.

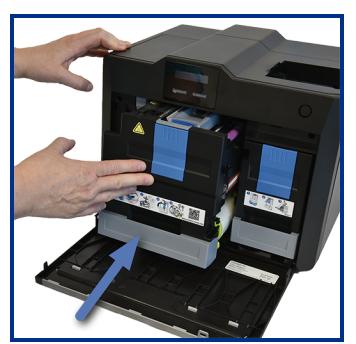

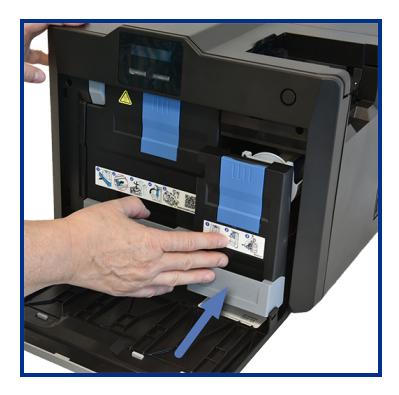

8. Slide in the ribbon drawer until the handle clicks/latches.

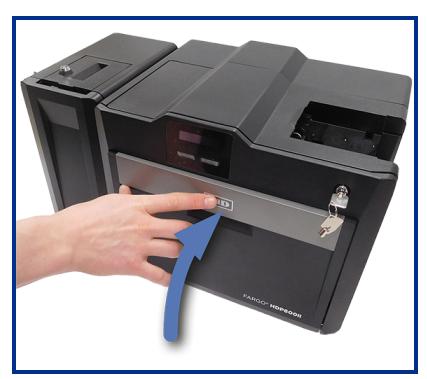

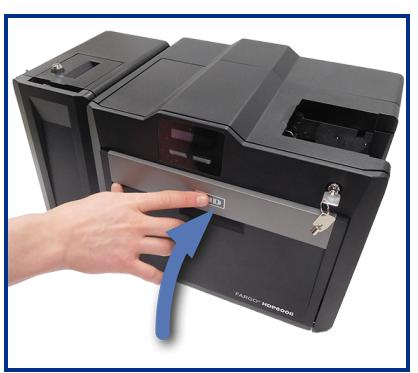

9. Close the printer front cover.
10. Close the printer front cover.
2.7 Installing the cleaning roller
Every HDP print ribbon contains a cleaning roller. Each time a new HDP print ribbon is inserted, a new cleaning roller should be installed.

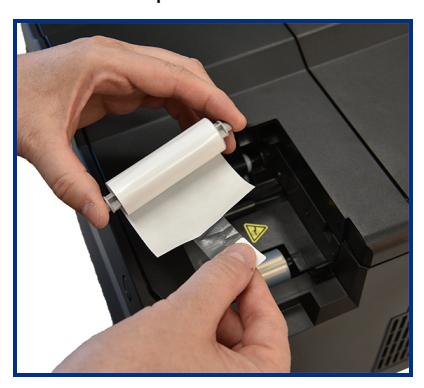

1. Remove the protective sleeve from the cleaning roller.

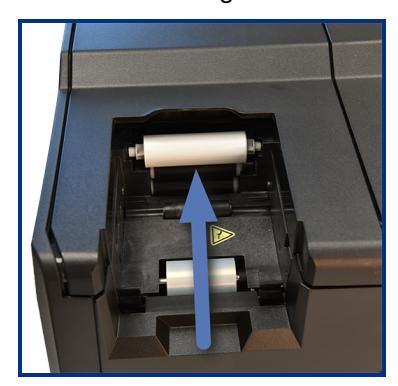

2. Insert the cleaning roller into the card input area.

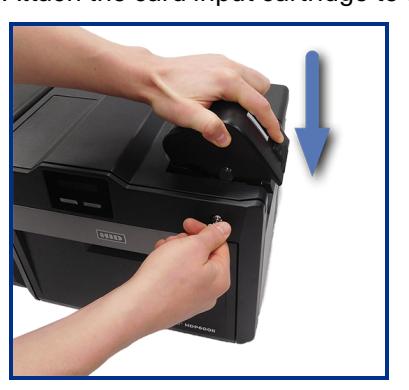

3. Attach the card input cartridge to the printer.
2.8 Installing blank cards into the input card hopper
Load the cards with the print side down and (if applicable) the magnetic stripe up and towards the front of the printer.
Notes:
- l FARGO UltraCard® Premium card types are recommended (see 2.8 Installing blank cards into the input card hopper ).
- l Cards eject into the output hopper or reject hopper.
- l Each input hopper holds 100 cards.
- 1. Press the button to open the card input cartridge.

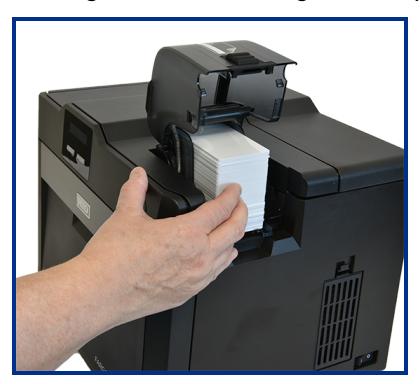

2. Load blank cards then close the card input cartridge. If using cards with a magnetic stripe, load the cards with the strip facing up and towards the front of the printer.

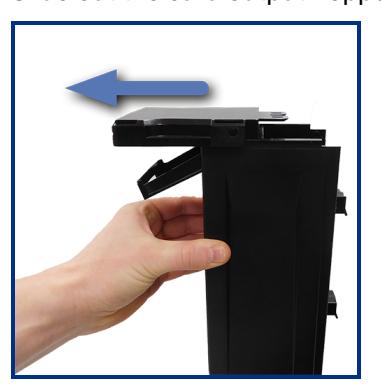

3. Slide out the card output hopper tray.

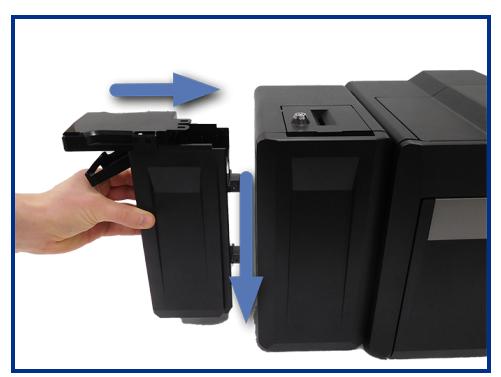

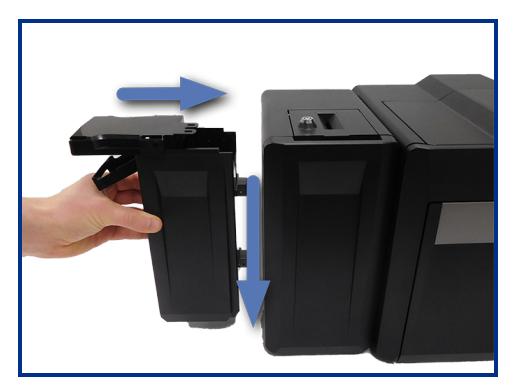

4. Attach the card output hopper to the printer.
5. Attach the card output hopper to the printer.

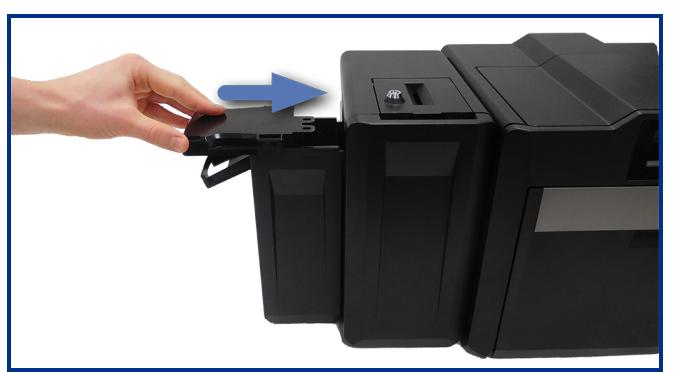

6. Slide in the card output hopper tray.
2.8.1 General card information
Important: For the best results and ISO card specification compliance, composite PVC is recommended over straight PVC.
- l The printer prints onto any card with a clean, level, and polished PVC surface.
- l Suitable cards must have a polished PVC surface free of fingerprints, dust, or any other types of embedded contaminants.
-
l
For best results, HID recommends UltraCard cards. UltraCard cards stock has a glossy PVC laminate on top and bottom and is optically inspected to provide the cleanest, most scratch and debris-reduced cards possible. Two types of UltraCard card stock are available.
- l UltraCard stock contains 100% PVC and offers medium card durability.
- l UltraCard Premium stock contains 40% polyester and offers high durability (recommended).
Both types of UltraCards produce printed images with a glossy, photo-quality finish.
2.9 Connecting the Ethernet cable

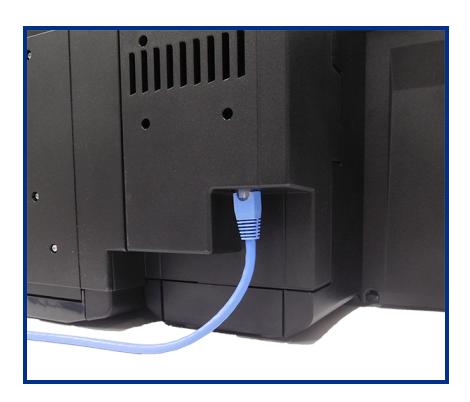

Plug in the Ethernet cable.
2.10 Connecting the power cable

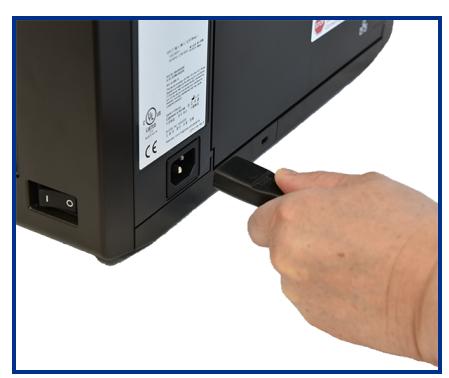

1. Connect the power cable to the printer.
- 2. Plug the wall power cable into a standard 100-240 VAC power outlet.

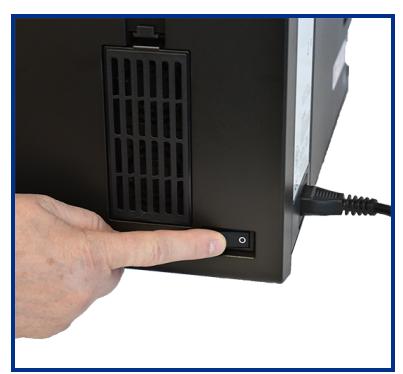

- 3. Switch on the printer.
If the physical switch is left on and the printer is left idle, the printer enters a low power state. When a print job is sent, the printer restores full power and the print job commences.
Section 03 Troubleshooting
3.1 Troubleshooting overview
This section provides specific procedures relating to diagnosing error messages shown on the printer display.
3.2 Error message table
If you encounter problems beyond the capabilities of this table, visit: www.hidglobal.com/support .
The printer display shows the current status of the printer.
| Printer Display Error Message | Cause | Solution |
|---|---|---|
|
Calibrate Failed
Error Message No. 508, 535 |
Film or ribbon calibration has failed. |
Verify the film is installed correctly and
there is not a ribbon installed. If this problem persists, call for technical assistance. |
|
Calibrate Film
Error Message No. 504 |
Film sensors need to be calibrated. | Perform the film calibration procedure. |
|
Calibrate Ribbon
Error Message No. 527 |
The print ribbon sensor is out of calibration. | Perform the ribbon calibration procedure. |
|
Card Jam
Error Message No. 467, 476, 484 |
A card is jammed in the print station or card
flipping area of the printer. |
Clear the jam. |
|
Card Jam: Smart Card
Error Message No. 469 |
A card is jammed in the smart card
encoding area of the printer. |
Clear the jam. |
|
Card Jam
Error Message No. 466 |
Card became jammed in the printer during
transfer. |
Clear the jam. |
|
Card Not Found
Error Message No. 465 |
Card cannot be found in the printer. |
Verify that the card is not jammed in the
printer. |
|
Check Film
Error Message No. 501 |
The film is not able to move correctly.
Check for jams/breaks. |
Check for obstruction. If the problem
persists, call for technical assistance. |
|
Film Sensor Calibration Failure
Error Message No. 508 |
Film sensor failure. |
Reset the printer. Make sure film is installed
correctly. Try again. |
|
Ribbon Sensor Calibration Failure
Error Message No. 535 |
Ribbon sensor failure. |
Reset the printer and try again. If failure
persists, call for technical assistance. |
|
Empty Reject Bin
Error Message No. 490 |
The reject bin is full. |
Remove the large number of rejected cards
from the reject bin. Press OK to clear the notification message. In some cases, rejected cards are incomplete or pose a security risk, and should be disposed of properly. |
|
Check Film
Error Message No. 500, 501, 506 |
The film is not able to move correctly.
Check for jams/breaks. |
Check for obstruction. If the problem
persists, call for technical assistance. |
|
Film Low
Error Message No. 503 |
The HDP film will soon run out. |
If printing a large number of cards, replace
the film now or monitor the printer until the film is gone and install a new film. |
| Printer Display Error Message | Cause | Solution |
|---|---|---|
| Film Out | The HDP film has run out. | Install a new roll of film. |
| Error Message No. 497, 499 | ||
|
Invalid Film
Error Message No. 493 |
The HDP film has been programmed
incorrectly or is damaged. |
Verify the correct film is installed in the film
cartridge. If this problem persists, call for technical assistance. |
|
Failed to Initialize
Error Message No. 455, 456 |
An error has occurred during printer start
up. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
Check Options File
Error Message No. 458 |
Printer not set up correctly or hardware
failure. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
No Film
Error Message No. 498 |
Error reading film tag. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
Ribbon Tag Error
Error Message No. 524 |
Error reading ribbon tag. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
Heater Error
Error Message No. 558, 559 |
The flattener is too hot. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
Flipper Jam
Error Message No. 480, 481 |
A card is jammed in the card flipping area
of the printer. The flipper table is jammed or non functional. |
Open the printer flipping module cover.
Clear any cards in the flipping module by opening the printer cover and pressing the Forward and/or Back buttons located on the printer display. Ensure that the flipper module can rotate freely. Close the printer flipping module cover. |
|
Head Resistance
Error Message No. 434 |
The EE setting for head resistance is out of
range. |
Enter a value for Head Resistance in the EE
settings. If this problem persists, call for technical assistance. |
|
See Manual
Error Message No. 435, 440 |
A hardware fault has prevented setting the
correct printhead voltage. |
Verify Head Resistance EE setting is
correct. Reset the printer and try again. If this problem persists, call for technical assistance. |
|
Headlift Error
Error Message No. 436, 437, 442, 443 |
This is a problem with the printhead lift. |
Reset the printer and try again.
If this problem persists, call for technical assistance. |
|
Heater Error
Error Message No. 551, 557 |
The transfer heater roller is too hot. |
Reset the printer and try again.
If this problem persists, call for technical assistance. |
| Printer Display Error Message | Cause | Solution |
|---|---|---|
| Invalid Ribbon | An unauthorized ribbon is installed in the | Get the correct ribbon from your dealer. |
| Error Message No. 519 | printer. | |
|
Headlift Error
Error Message No. 553, 554, 555, 556 |
There is a problem with the transfer roller
headlift. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
Headlift Error
Error Message No. 560 |
There is a problem with the transfer roller
headlift. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
Job Data Error
Error Message No. 544 |
The print data sent to the printer is corrupt
or has been interrupted. |
Reset the printer and try again.
If this problem persists, call for technical assistance. |
|
Mag Verify Error
Error Message No. 487 |
Printer could not verify mag write.
OR The magnetic stripe was not encoded properly. |
Check the cards for correct mag stripe
orientation and try again. |
|
Multiple Feed
Error Message No. 475 |
Multiple cards were fed into the printer. | Remove all cards and try again. |
|
No E-card Encoder
Error Message No. 451 |
You are trying to send encoding data, but
the printer is not configured with this encoder type. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
No Film
Error Message No. 492 |
Film is not installed in the printer.
OR Film RFID tag is bad. |
Install the film. |
|
No Flip Module
Error Message No. 482 |
Loss of connection to flipper module. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
No Mag Module
Error Message No. 486 |
Loss of connection to mag module. |
Reset the printer and try again. If this
problem persists, call for technical assistance. |
|
No Ribbon
Error Message No. 518, 524 |
No ribbon is installed in the printer.
OR The ribbon RFID tag is bad. |
Install a valid ribbon. |
| See Manual | An error was detected during printing. | Reset the printer and try again. |
| Error Message No. 444 |
If this problem persists, call for technical
assistance. |
|
| Reboot Required |
Unspecified system error detected by the
printer firmware. |
Reset the printer and try again. |
| Error Message No. 430 |
If this problem persists, call for technical
assistance. |
|
| Remove Card | A card is jammed in the print station or card | Open cover and remove jam. |
| Error Message No. 464 | flipping area of the printer. |
| Printer Display Error Message | Cause | Solution |
|---|---|---|
| Remove Ribbon | The print ribbon is installed and needs to be | Remove the ribbon. |
| Error Message No. 533 | removed. | |
|
Ribbon Break/Jam
Error Message No. 523, 537 |
The ribbon is not able to find the next panel
correctly. Check for jams/breaks. |
If jammed, clear the jam. If broken, repair
the ribbon by taping the ribbon back on to |
| the take-up core. | ||
|
Ribbon Low
Error Message No. 528 |
The ribbon will soon run out. |
If printing a large number of cards, replace
the ribbon now or monitor the printer until the ribbon is gone and install a new ribbon. |
| Check Ribbon |
The ribbon is not able to find the next panel
correctly. Check for jams/breaks. |
If jammed, clear the jam. If broken, repair
by taping the ribbon back on to the take-up |
| Error Message No. 530 | core. | |
| Ribbon Out | The ribbon has run out. | Install a new ribbon. Send the job again. |
| Error Message No. 526, 538 | ||
|
Invalid Ribbon
Error Message No. 519, 531 |
The ribbon is not installed properly or has
been damaged. |
Verify the correct ribbon is installed in the
ribbon cartridge. |
| Unable to Feed | The printer is unable to feed a card from | Verify there are cards in the card cartridge. |
| Error Message No. 474 | the card hopper. |
Verify cards are not stuck together or
jammed, and they are the correct thickness. |
| See Manual | Command resulted in an error. | Verify correct utility command is sent to the |
| Error Message No. 453 | printer. | |
| Waiting for Data | The printer has stopped receiving data from | Reset the printer and try again. |
| Error Message No. 454 | the PC. |
If this problem persists, call for technical
assistance. |
|
Wrong Film
Error Message No. 494 |
The print film installed in the printer does
not match the film type selected in the printer. OR A self-test job cannot be printed with the print media installed. |
Verify the correct ribbon is installed. |
|
Wrong Ribbon
Error Message No. 520 |
The ribbon installed in the printer does not
match the ribbon type selected in the printer. OR A self-test job cannot be printed with the print media installed. |
Verify the correct ribbon is installed. |
|
See Manual
Error Message No. 431, 432, 433, 452, 457, 485, 547, 548, 549, 550 |
Unspecified system error is detected by
printer firmware. |
Reset printer and try again. If problem
persists, call for technical assistance. |
| See Manual | The print head has become too hot. | Allow to cool off and try again. |
| Printer Display Error Message | Cause | Solution |
|---|---|---|
| Ribbon Temp Error | The ambient temperature of the printer is | Allow to cool off and try again. If problem |
| Error Message No. 441 | too high. | persists, call for technical assistance. |
| OR | ||
| Sensor failure. | ||
| Please Install Film and Close Cover | Film is not installed. | Install the film. Press OK and run the |
| Error Message No. 536 | calibration routine again. | |
| Check Film/Card | Card became jammed in printer during | Clear the jam. |
| Error Message No. 552 | transfer. |
3.3 Resolving common errors
-
l
Determine the problem with printing from the application:
- l Print a self-test from the printer.
- l On the printer display, select > Test Prints > Settings to ensure that the printer is functioning properly.
-
l
When contacting HID Global Technical Support:
- l Position a phone near the printer and computer so the Technician can help to troubleshoot the printer.
- l Have a self-test and a sample card ready.
-
l
Read the serial numbers on a FARGO printer.
-
l
Determine when the card printer was manufactured. See the serial number (affixed to the card printer). For example:
Serial Number C0050028 (2020)
- l The first two digits indicate the year the printer was built ( C0 indicates the year 2020).
- l The third and fourth digits indicate the week the printer was built ( 05 indicates week 5 of that year).
- l The last four digits indicate the sequence number for the numeric order in which the printers were built.
-
l
Determine when the card printer was manufactured. See the serial number (affixed to the card printer). For example:
Serial Number C0050028 (2020)
- l Contact the HID Global Technical Support Group at www.hidglobal.com/support .
Revision history
| Date | Description | Revision |
|---|---|---|
| August 2022 | Updated specifications for print ribbon and HDP film options. | A.1 |
| December 2020 | Initial release. | A.0 |
For technical support, please visit: https://support.hidglobal.com
© 2022 HID Global Corporation/ASSA ABLOY AB. All rights reserved. PLT-05146, Rev. A.1
Part of ASSA ABLOY
