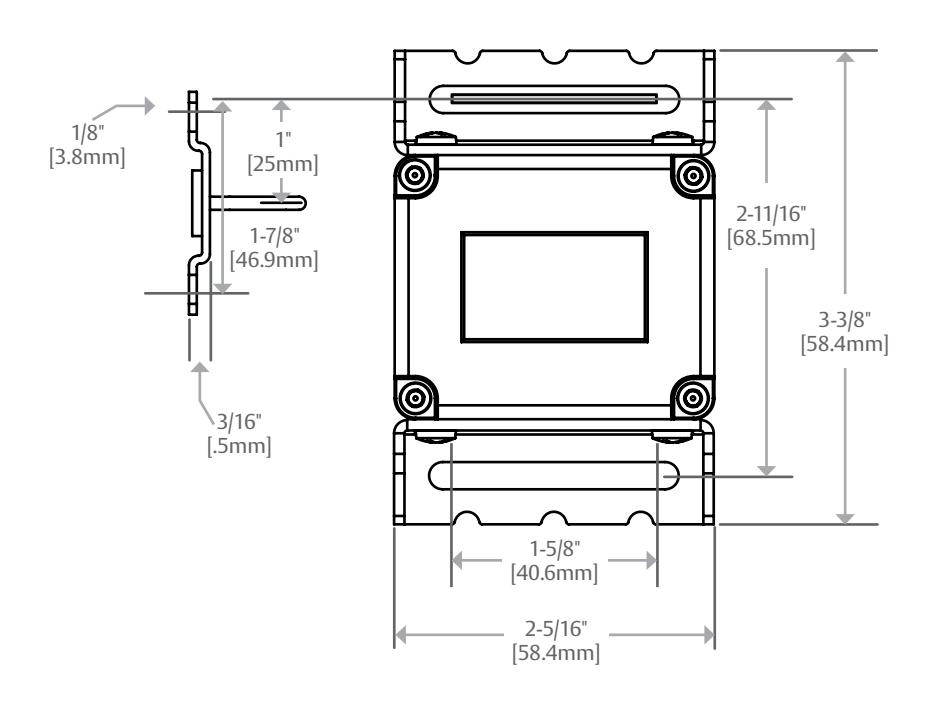

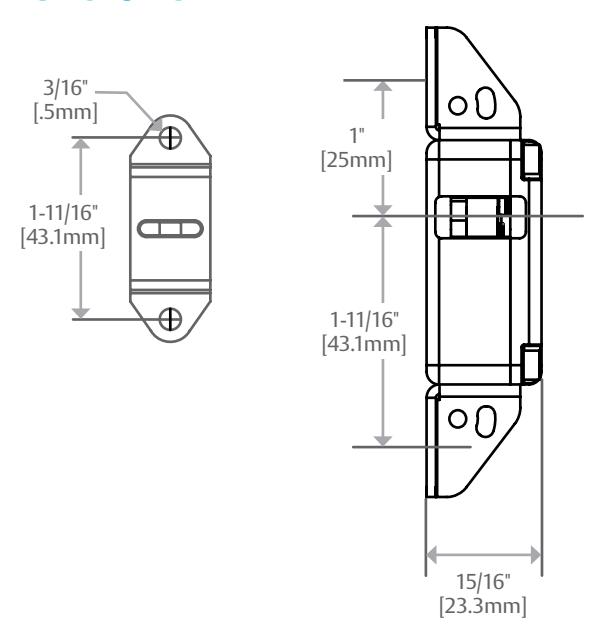

Dimensions Specifications

Certifications

• RoHS compliant

Electrical

• 12 or 24 VDC ± 10%
  • 240 mA at 12 VDC / 120 mA at 24 VDC (continuous duty) 700 mA at 12 VDC / 350 mA at 24 VDC (preload option)
  • Monitored contact rating 25V / 1A

Holding Force

• Static strength 1,000 lbs
• Dynamic strength over 100 ft-lbs

Environmental

• Indoor use

How to Order

Series	Voltage	Option (s)
660	– 12V	– LBSM – Preload
	12V 12 Volt	(blank) No preload, no monitoring
	24V 24 Volt	Preload Up to 15 lbs
		LBSM Locked state monitoring
		LBSM–Preload Locked state monitoring with preload

HES® KP20 Cabinet Lock

Stand-Alone Keypad Cabinet Lock

The cost effective solution for stand-alone keypad access control to secure drawers or doors.

The battery operated HES KP20 Cabinet Lock is the flexible, low cost cabinet locking solution for low to medium security applications with 75 lbs of holding force.

Features

Standard Features

• Stand-alone access control
• No audit trail
• Public (one-time) or Private (continuous) mode configuration options
• 12 button keypad
• LEDs indicate valid/invalid access
• Supports one (4 12 digit) master code
• Supports one (4 12 digit) user code
• Aluminum die-cast construction
• Non-handed
• Installs on wood or metal cabinet drawers or doors 1/16" to 7/8" [1.5 – 22.2 mm] thick
• Micro USB for emergency override upon loss of power
• SecuriCare three-year, no-fault, no questions asked warranty

Optional Features

• Supports 3rd party locking cams (i.e. hook)
