Electronic Security Hardware

HES | Securitron Product Catalog

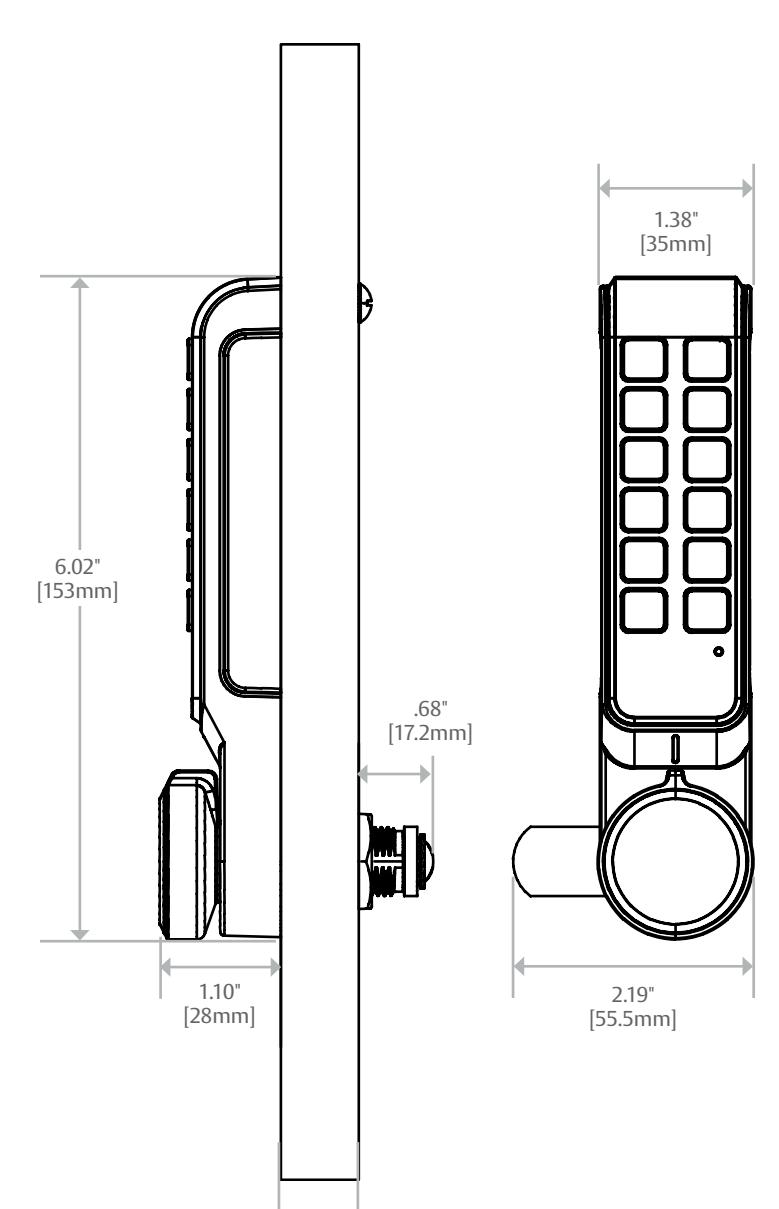

.71" [18mm]

Dimensions Specifications

Certifications

• FCC Part 15 & Industry Canada compliant
• EU/CE Mark (EN 300 & 301)
• RoHS compliant

Electrical

• 30,000 cycles
• 3 x AAA alkaline batteries (sold separately)
• External emergency power through micro USB

Holding Force

• Static strength 75 lbs

Environmental

• Operating Temperature: 32˚ to 122˚F [0˚ to 50˚C]
• Humidity: 0 to 90% RH
• Indoor use

Keypad Technology

• 12-Button Keypad
  • − One master code (4 12 digit)
  • − One user code (4 12 digit)

HES® K20 Cabinet Lock

Stand-Alone RFID Cabinet Lock

The cost effective solution for stand-alone RFID access control to secure drawers or doors.

The battery operated HES K20 Cabinet Lock is the flexible, low cost cabinet locking solution for low to medium security applications with 75 lbs of holding force.

Features

Standard Features

• Stand-alone access control
• No audit trail
• Public (one-time) or Private (continuous) mode configuration options
• 13.56 MHz RFID card technology (cards sold separately)
• LEDs indicate valid/invalid access
• Supports 1 to 20 master credentials
• Supports 1 to 20 user credentials
• Aluminum die-cast construction
• Non-handed
• Installs on wood or metal cabinet drawers or doors 1/16" to 7/8" [1.5 – 22.2 mm] thick
• Micro USB for emergency override upon loss of power
• SecuriCare three-year, no-fault, no questions asked warranty

Optional Features

• Supports 3rd party locking cams (i.e. hook)
• 13.56 MHz MIFARE Classic credentials (sold separately)
