HES K20/KP20 Series Cabinet Locks

The battery powered K20/KP20 Series Cabinet Locks are the flexible, cost effective solution for low to medium security applications with 150 lbs of holding force.

The K20/KP20 Series Cabinet Locks offer affordable yet polished solutions to secure stand-alone lockers, drawers and doors for residential, commercial and institutional applications including:

• Hospitals
• Schools
• Offices
• Gyms
• Amusement Parks
• Garages
• File Storage
• Liquor Cabinets

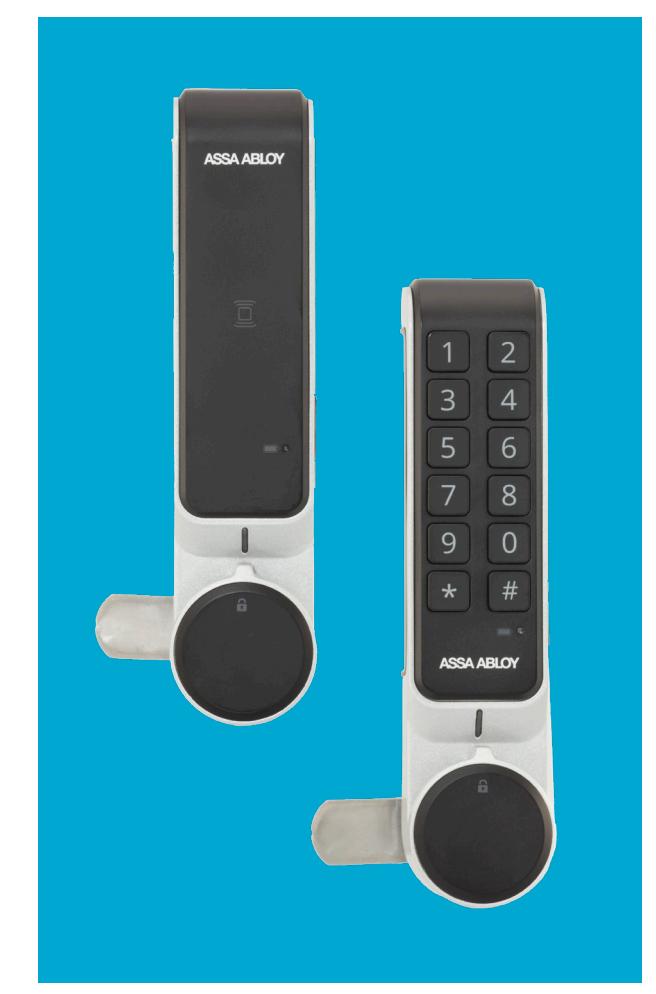

K20/KP20 Cabinet Locks

• Stand Alone, No Audit Trail
• Battery operated by 3 x AAA alkaline batteries (not included)
• Accommodates door thickness 1/16" to 7/8" [1 23 mm] thick

K20, 13.56 MHz RFID

• 1 to 20 Master Credentials
• 1 to 20 User Credentials
• Cards Sold Separately

KP20, Keypad PIN Code

• Supports One (4 12 digit) Master Code
• Supports One (4 12 digit) User Code

Stand-Alone | Cabinet Locks

Specifications

Certifications

• FCC Part 15 & Industry Canada compliant
• EU/CE Mark (EN 300 & 301)
• RoHS compliant

Electrical

• 30,000 cycles
• 3 x AAA alkaline batteries (not included)
• External emergency power through micro USB

Holding Force

• Static strength 150 lbs

Environmental

• Operating Temperature: 32˚ to 122˚F (0˚ to 50˚C)
• Humidity: 0 to 90% RH
• Indoor use

Card Technology (K20 only)

• High Frequency (13.56 MHz)
  • MIFARE Classic™
  • MIFARE Ultralight™

Keypad Technology (KP20 only)

• 12-Button Keypad
  • One master code (4 12 digit)
  • One user code (4 12 digit)

Features

• Stand-alone access control
• No audit trail
• LEDs indicate valid/invalid access
• Aluminum die-cast construction
• Non-handed
• Installs on wood or metal cabinet drawers or doors 1/16" to 7/8" [1 – 23 mm] thick
• SecuriCare three-year, no-fault, no questions asked warranty

Options

• Supports 3rd party locking cams (i.e. hook)
