Cabinet Lock Overview
ELECTRONIC SECURITY HARDWARE HES & SECURITRON | MEDECO
Big Things are Happening in Small Spaces
In today's world, you don't have to look far before you find a cabinet or enclosure that is protecting some kind of a physical asset, data, or access to critical infrastructure.
Emerging trends such as enterprise managed employee lockers tell us that access control is as much about convenience as it is security. Whether you're securing lockers, drawers, doors or enclosures, we want to hear from you.

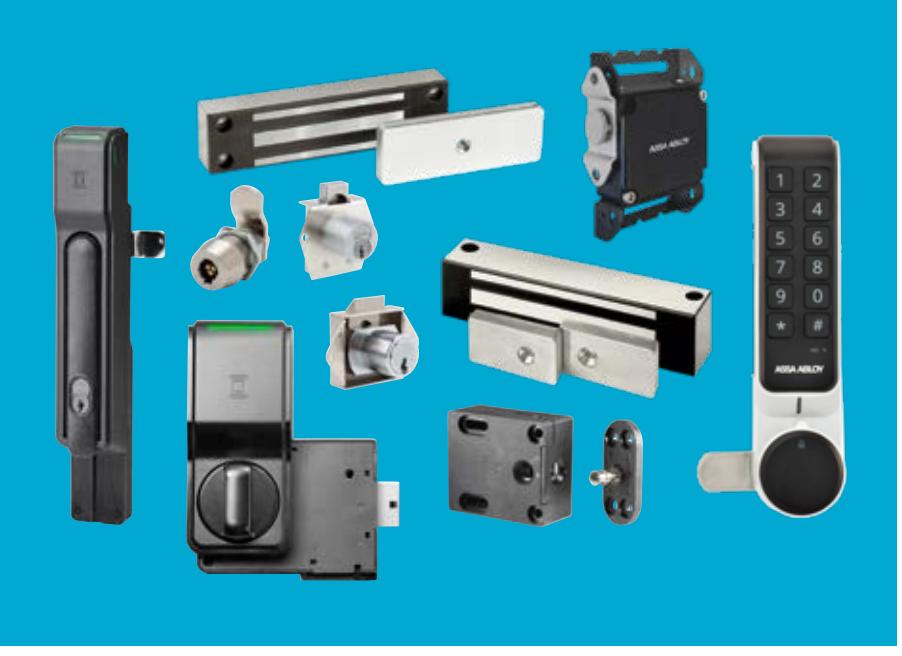

We offer a wide range of flexible, scalable solutions to meet your needs ranging from server cabinets to employee lockers and other secure storage enclosures.
- Cost effective, aesthetically pleasing low profile solutions
- Mechanical, electromagnetic, electromechanical and integrated access control options
- Your choice of wired or wireless
Contact us today: customerservice.esh@assaabloy.com
Areas of Application
- Secure file storage
- Document & equipment storage
- Chemical storage
- Display cases
- Mailrooms
- Employee lockers
- Pharmaceuticals lockers (controlled substances)
- Evidence storage (CoC – Chain of Custody)
- Data server cabinets
- Unmanned infrastructures
- Visitor lockers (or storage)
Medeco M3
Latchbolt
Medeco X4
Deadbolt
Medeco XT
Utility Cam Lock
How to Order
| Model |
Cylinder
Technology |
Finish | Keyway | Pinning |
|---|---|---|---|---|
| Χ | G | 26 | LT | Р |
| T Medeco³ | 26 Satin chrome | S Sub-assembled | ||
| N Medeco X4 |
finish standard.
Other finishes available, depending on volume |
P Pinned | ||
| G MedecoXT | M Master Keyway |
Mechanical
A cabinet lock is only as secure as the key override that protects it. From mechanical to integrated access control cabinet locks, Medeco provides flexible, scalable mechanical and intelligent key override options to provide the highest level of security.
All Medeco mechanical cabinet locks feature solid brass and steel construction, available with either fixed or removable mechanical or intelligent key override options. Featuring patented key programs to prevent the unauthorized duplication of keys and maintain system integrity.
-
Mechanical key override options: M3 & X4 (SFIC)
- Available keyed alike, keyed different, or master keyed
- Patented key control
- Electronic intelligent key override options: XT
HES K20
- Supports 13.56 MHz RFID card technologies MIFARE Classic™ or MIFARE Ultralight™
- Up to 20 Master credentials
- Up to 20 User credentials
How to Order
Model Series K20
HES KP20
- 12-button keypad
- One master code
- One user code
How to Order
Stand Alone Keypad
HES K20 & KP20
The low cost HES K20 (13.56 MHz RFID) and KP20 (12-button) cabinet locks with over 75 lbs of holding force for low to medium security applications.
- User friendly programming
- No audit trail
- Supports both Public (one time use) and Private (on-going) programming modes
- Accommodates door thickness 1/16" to 7/8" [1 to 23 mm]
- Battery powered by 3x AAA alkaline batteries (est. battery life 30K cycles)
Wireless | Aperio®

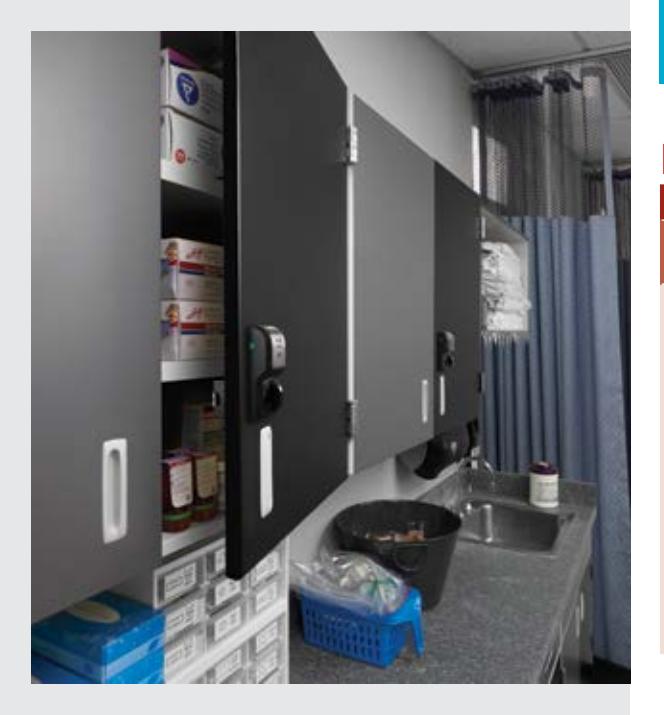

HES K100

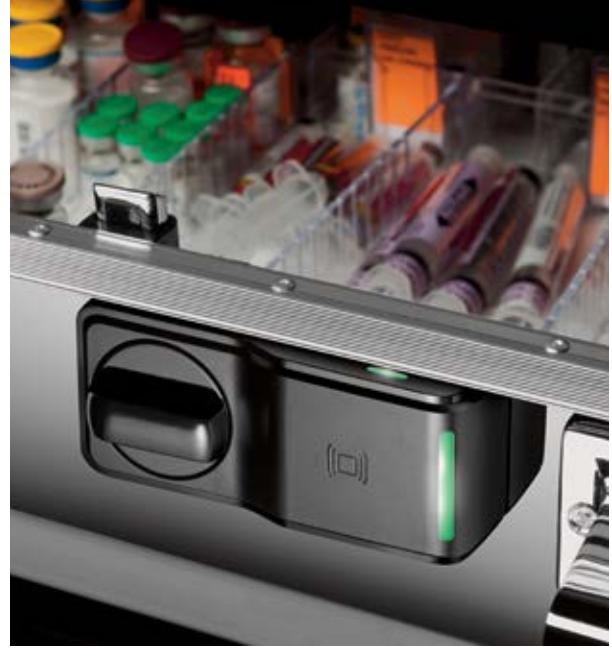

The flexible integrated cabinet locking solution for use with swinging and sliding cabinet doors and drawers with a door thickness of up to 2-1/4". The HES K100 comes standard with locked state and tamper monitoring, optional mechanical key override and over 150 lbs of holding force. It uses local 2.4 GHz wireless communication, between the lock and an Aperio® hub, to bring access control to cabinet doors and drawers where audit trail and real-time monitoring are required.
HES KS100
Designed to install easily on most cam-activated swing handle server cabinet doors with a 150 x 25 mm lock prep, the HES KS100 comes standard with locked state monitoring and supports a 6 or 7-pin SFIC (Small Format Interchangeable Core) mechanical key override. For high security applications, an optional extended DPS monitoring sensor can be connected to ensure that the cabinet is closed, locked and secure. It uses local 2.4 GHz wireless communication, between the lock and an Aperio® hub, to bring real-time monitoring and managed access to server cabinet doors that protect against malicious attacks or tampering.
HES K100
- Supports HID multiCLASS SE® card technologies
- Battery powered by 2x AA lithium batteries (est. battery life 50K cycles)
- Pinch (P) and Lever (L) knob options
Accessories
OBS-622 Open back strike plate for drawers
How to Order
| Series | Model | Card Technology | Color |
Knob
Type |
Shaft Length
(Door Thickness) |
|---|---|---|---|---|---|
| K100 |
–
622 |
–
IPS |
– B | P | 2 |
|
622 Non
Paired for Doors |
IPS HID Prox®,
Kantech ioProx, HID |
B Black | P Pinch |
(Blank)
1/16" to 1/2" |
|
|
(standard)
622D Non Paired for Drawers |
iCLASS®, HID iCLASS
SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE® SE, HID DESFire® EV1 SE, MIFARE Classic, MIFARE DESFire EV1, NFC-enabled mobile phones |
L Lever |
2 ≥ 1/2" to 1-1/2"
3 ≥ 1-1/2" to 2-1/4" |
||
|
622H Factory
Paired for DOORS with AH20 1:1 Wiegand Hub |
HES KS100
- Supports HID multiCLASS SE® card technologies
- Battery powered by 2x AA lithium batteries (est. battery life 50K cycles)
- Integrated locked state (handle), cam rotation and tamper monitoring
- Optional external DPS sensor for real-time door status monitoring
Accessories
SFIC Medeco X4 SFIC cylinder and 2 keys (1 control, 1 user)
SFIC-BC KS SFIC blank, black plastic core
KS-DPS Surface mount DPS (external)
KS-CAM38 CAM: 38MM-1 KS-CAM45 CAM: 45MM-5
How to Order
| Series | Model | Card Technology | Color | Key Override (Optional) |
|---|---|---|---|---|
| KS100 |
–
S |
–
IPS |
– B | – K1 |
|
S Non-Paired
for Swing Handle Server Cabinet Doors (standard) |
IPS HID Prox®,
Kantech ioProx, HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE® SE, HID DESFire® EV1 SE, MIFARE Classic, MIFARE DESFire EV1, NFC-enabled mobile phones |
B Black |
(Blank) No SFIC or Blank
Plastic Core (Standard) BC SFIC blank, black plastic core K1 Medeco X4 SFIC, Keyed Differently (DGV Commercial Keyway), with 2 Keys (1 Control & 1 User Key) MK-XXXXXX Medeco X4 SFIC, Master Keyed (DGV Commercial Keyway), with 2 Keys(1 Control & 1 User Key) |
HES K200
- Supports HID multiCLASS SE® card technologies
- Hard powered by 12-24VDC (+/-10%)
- ElectroLynx® connectors for plug-n-play connectivity
Accessories
OBS-622 Open back strike plate for Drawers
CBL6-QC12 6 ft, K200/KS200 lock side interface cable, 12 conductor with Molex on both ends
CBL12-QC12 12 ft, K200/KS200 system side interface cable, 12 conductor with Molex on one end, pinned one end
WT-1 Wiegand test box with LED indicators
WT-2 Wiegand test box with LCD backlit display and LED indicators
How to Order
| Series | Model | Color | Knob Type |
|---|---|---|---|
| K200 |
–
622 |
–
B |
2 |
| 622 Non-Paired for Doors (standard) | B Black | 2 Pinch |
HES KS200
- Supports HID multiCLASS SE® card technologies
- Hard powered by 12-24VDC (+/-10%)
- Integrated locked state (handle), cam rotation and tamper monitoring
- Optional external DPS sensor for realtime door status monitoring
- ElectroLynx® connectors for plug-n-play connectivity
Accessories
SFIC Medeco X4 SFIC cylinder and 2 keys (1 control, 1 user)
SFIC-BC KS SFIC blank, black plastic core
KS-DPS Surface mount DPS (external)
KS-CAM38 CAM: 38MM-1
KS-CAM45 CAM: 45MM-5
CBL6-QC12 6 ft, K200/ KS200 lock side interface cable, 12 conductor with Molex on both ends
CBL12-QC12 12 ft, K200/KS200 keep side interface cable, 12 conductor with Molex on one end, pinned one end
WT-1 Wiegand test box with LED indicators
WT-2 Wiegand test box with LCD backlit display and LED indicators
How to Order
| Series | Model |
|---|---|
| KS200 |
–
640 |
| 640 Wiegand, MultiCLASS SE |
Online Integrated Wiegand
HES K200
The flexible integrated cabinet locking solution for use with swinging and sliding cabinet doors and drawers with a door thickness of up to 1-1/2". The HES K200 comes standard with locked state and tamper monitoring, optional mechanical key override and over 150 lbs of holding force. The lock connects using hard wired integrated Wiegand communication to bring access control to cabinet doors and drawers where audit trail and real-time monitoring are required.

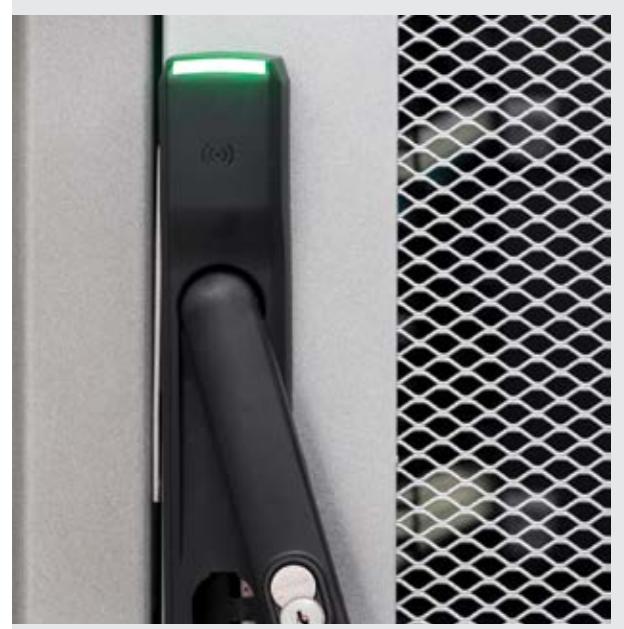

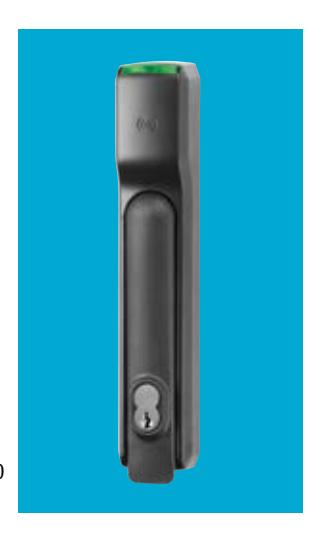

HES KS200
Designed to install easily on most cam-activated swing handle server cabinet doors with a 150 x 25 mm lock prep, the HES KS200 comes standard with locked state monitoring and supports a 6 or 7-pin SFIC (Small Format Interchangeable Core) mechanical key override. For high security applications an optional extended DPS monitoring sensor can be connected to ensure that the cabinet is closed, locked and secure. It uses hard wired integrated Wiegand communication to bring real-time monitoring and managed access to server cabinet doors that protect against malicious attacks or tampering.
Online Wired
How to Order
| Series | Option (s) | |
|---|---|---|
| 610 |
–
LM |
|
| (blank) No Monitoring | ||
| LM Locked State Monitoring | ||
HES 610

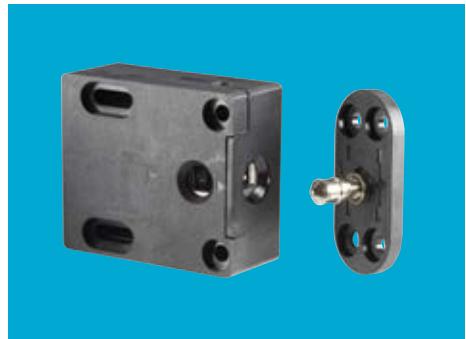

The versatile, compact, cost effective cabinet lock with over 200 lbs of holding force that can be used to secure sliding or swinging drawers or doors. Available with or without locked state monitoring.
- Hard powered by 12-24VDC (+/-10%)
- Fail safe / fail secure operation (field selectable)
- Surface mounts easily with minimal tools
Accessories
KO 660 Mechanical Key Override

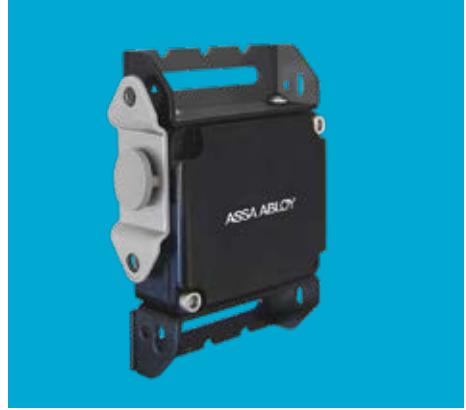

HES 660
The strongest multi-purpose cabinet lock available from ASSA ABLOY with over 1,000 lbs of holding force that can be used to secure sliding or swinging drawers or doors. Available with or without locked state monitoring and a preload release function, allowing for smooth functional operation under a variety of environmental conditions.
- Hard powered by 12-24VDC (+/-10%)
- Fail secure operation
- Surface mounts easily with minimal tools
- Includes 6 feet [1.8m] of jacketed cable
How to Order
| Series | Voltage | Option (s) | |
|---|---|---|---|
| 660 |
–
12V |
–
LBSM – Preload |
|
|
12V
12 Volt |
(blank) No Preload, No Monitoring | ||
|
24V
24 Volt |
Preload Up to 15 lbs | ||
| LBSM Locked State Monitoring | |||
| LBSM–Preload Locked State Monitoring with Preload | |||

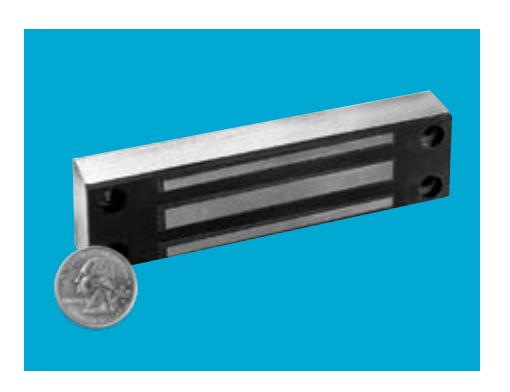

Securitron MCL
The durable and compact 170 lb electromagnetic cabinet lock that is ideal for extending access control to secure sliding or swinging cabinet doors – indoors or out.

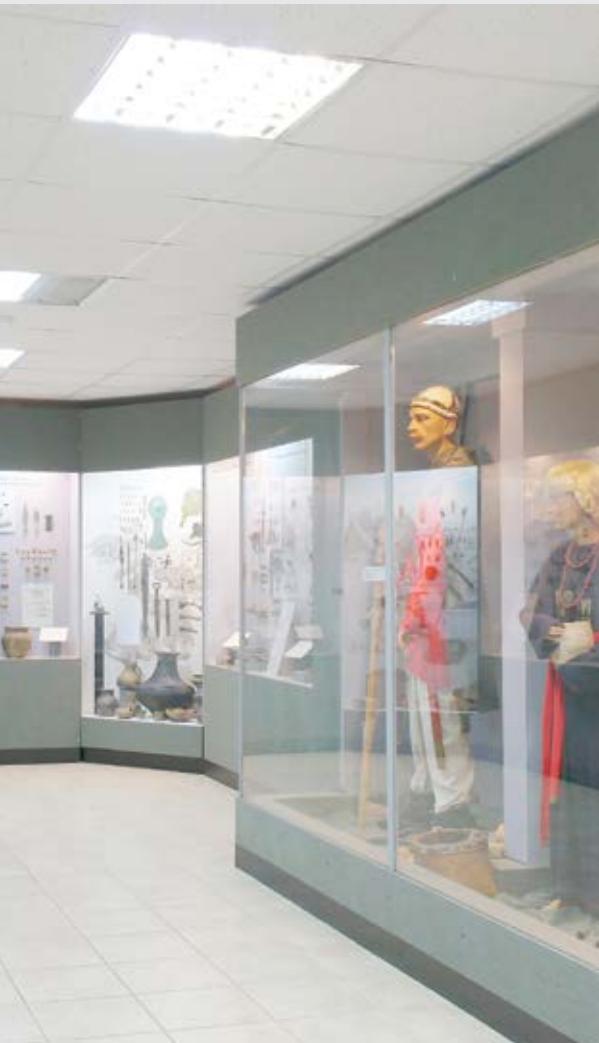

Typical applications include jewelery cases, museum displays, gun cabinets, pharmaceutical storage cabinets or cash drawers.
- Fully sealed electronics tamper proof and weatherproof
- Surface mounts easily with minimal tools using universal mounting bracket
- Includes 6 feet [1.8m] of jacketed cable
How to Order
Model Series
MCL-24
MCL-24
Online Wired

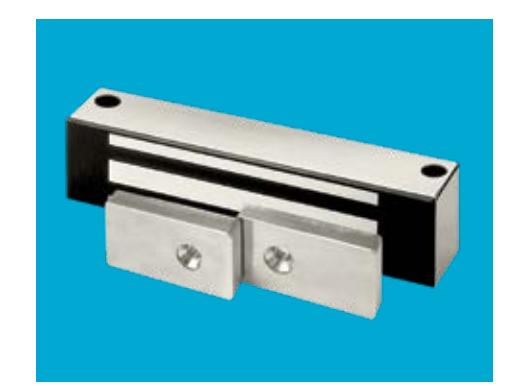

Securitron M32-SS
The durable split strike 600 lb (300 lbs per strike) electromagnetic cabinet lock that is ideal for extending access control to secure large double-door cabinet and enclosure outswinging door applications that share a center latching point – indoors or out.
- Supports 5/8" to 7/8" [15.75mm to 23 mm] door thickness
- Fully sealed electronics tamper proof and weatherproof
- Surface mounts easily with minimal tools
- Includes 10 feet [1.8m] of jacketed cable
- Optional BondSTAT magnetic bond sensor
How to Order
| Model Series | Monitoring Options | Strike Plate Options |
|---|---|---|
| M32 | BD | -SS |
| M32 (600 lbs) | (blank) No Monitoring | SS Split Strike |
| BD BondSTAT Monitor |
