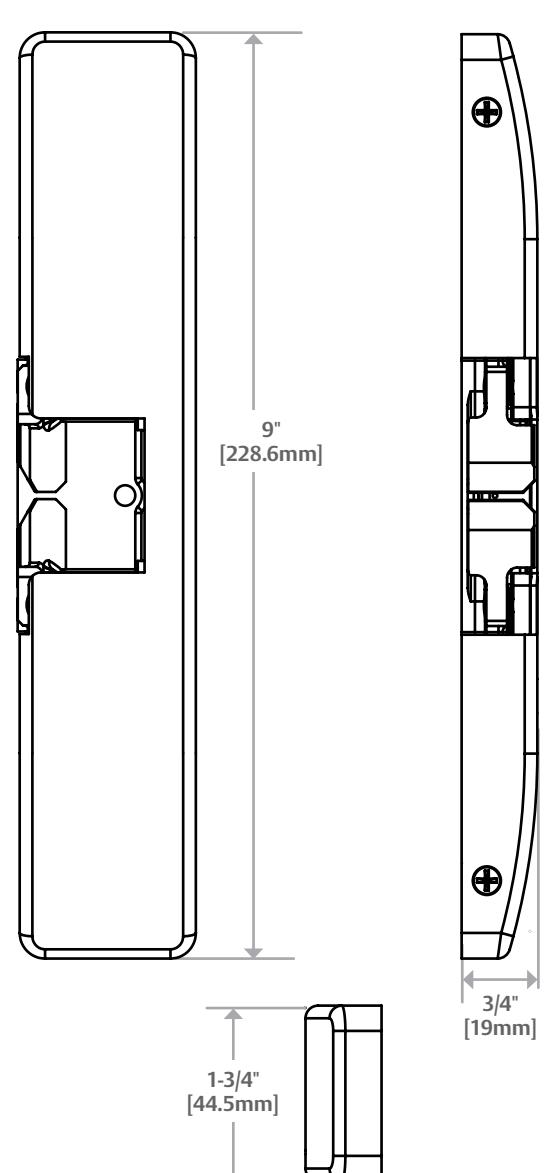

Dimensions

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1
• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL 294 listed
• RoHS compliant
• ANSI/SDI A250.13 windstorm resistant
• Florida Building Code approved TAS 201, 202, 203
• ANSI-ASTM E330

Frame Application

• Metal
• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC
• 450 mA at 12 VDC/250 mA at 24 VDC

How to Order

Series	Finish	Option (s)
9600	– 630	– LBM
9600 Surface-Mounted Electric Strike for 3/4" Pullman Rim Exit Devices, non-fire rated; no faceplates required	605 Bright Brass	LBM Latchbolt Monitor
	606 Satin Brass	LBSM Latchbolt Strike Monitor
	612 Satin Bronze
	613 Bronze Toned
	613E Dark Oxidized Satin Bronze Powder
	629 Bright Stainless Steel
	630 Satin Stainless Steel
	BSP Black Suede Powder

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

55

HES® 9700 Surface Mounted Electric Strike

Works with Corbin Russwin SecureBolt® and Yale SquareBolt® exit devices

The stylish windstorm resistant and fire rated, squarebolt solution.

The HES 9700 Series Electric Strike is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt® and Yale SquareBolt® exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.

The HES 9700 is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire rated frames.

Features

Standard Features

• Installs in metal or wood (wood screws not included)
• Separate base and decorative cover for easy adjustments
• Stainless steel construction
• Tamper resistant
• Static strength to 2,000 lbs
• Dynamic strength to 120 ft-lbs
• Endurance 1 million cycles
• Field selectable fail safe/fail secure
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor
• LBSM Latchbolt strike monitor

Accessories

• 9000-116-XXX 1/16" Spacer plate (Available in 613E, 628E, 630 & BSP finishes)
• 9000-108-XXX Spacer plate (BSP, 613E, 630, 628E)
• 9000-MTK Metal template kit
• SMB Surface mounting box
• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2 005M3 SMART Pac® III
• 2006M Plug-in buzzer
