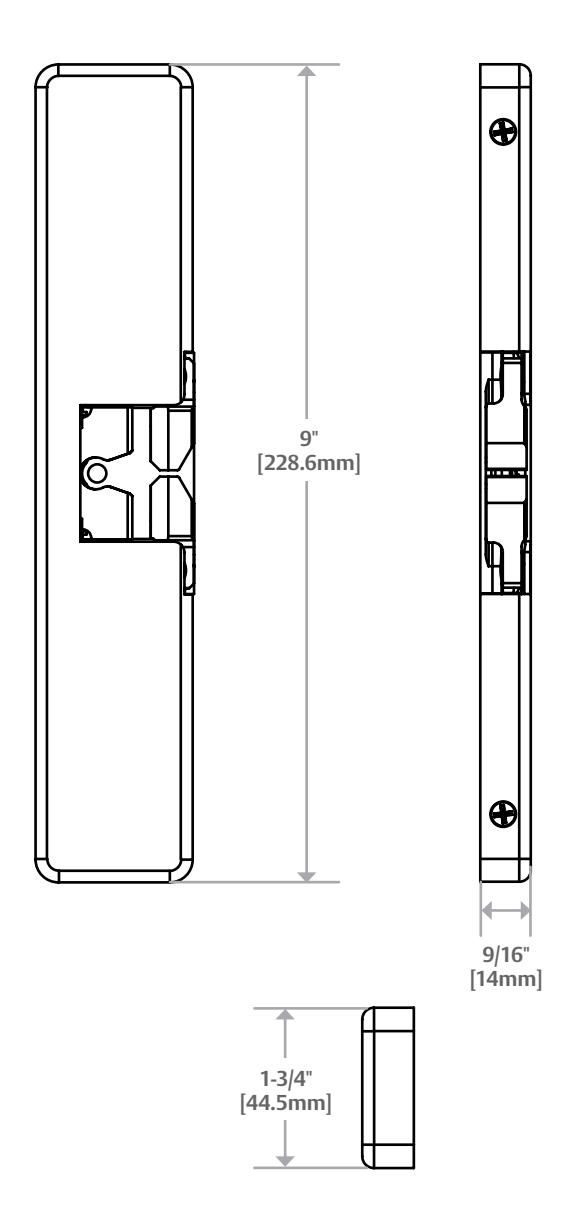

Dimensions
Specifications
Certifications
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
Frame Application
- Metal
- Wood
Electrical (DC Continuous Duty)
- Dual voltage 12/24 VDC
- 450 mA at 12 VDC/250 mA at 24 VDC
How to Order
| Series | Finish | Option (s) | |
|---|---|---|---|
| 9400 |
–
630 |
–
LBM |
|
| 9400 |
Surface-Mounted Electric Strike
for 1/2" Pullman Rim Exit Devices; no faceplates required |
605
Bright Brass |
LBM
Latchbolt Monitor |
|
606
Satin Brass |
LBSM
Latchbolt Strike Monitor |
||
|
612
Satin Bronze |
|||
|
613
Bronze Toned |
|||
|
613E
Dark Oxidized Satin Bronze Powder |
|||
|
629
Bright Stainless Steel |
|||
|
630
Satin Stainless Steel |
|||
|
BSP
Black Suede Powder |
NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.
51
HES® 9500 Surface Mounted Electric Strike
Works with rim exit devices up to 3/4" throw Pullman latchbolt
The durable, fire rated surface mounted solution.
The HES 9500 Series Electric Strike is a three hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.
The HES 9500 exceeds Grade 1 standards for strength and performance. It is field selectable for fail safe / fail secure operation, and for 12 or 24 VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire rated frames.
Features
Standard Features
- Installs in metal or wood frames (wood screws not included)
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Horizontal adjustability
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" [19mm] Pullman latch
- SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)
Optional Features
- LBM Latchbolt monitor
- LBSM Latchbolt strike monitor
Accessories
- 9000-116-XXX 1/16" Spacer plate (Available in 613E, 628E, 630 & BSP finishes)
- 9000-108-XXX 1/8" Spacer plate (Available in 613E, 628E, 630 & BSP finishes)
- 9000-MTK Metal template kit
- SMB Surface mounting box
- 2001M Plug-in bridge rectifier
- 2004M ElectroLynx® adapter
- 2005M3 SMART Pac® III
- 2006M Plug-in buzzer
