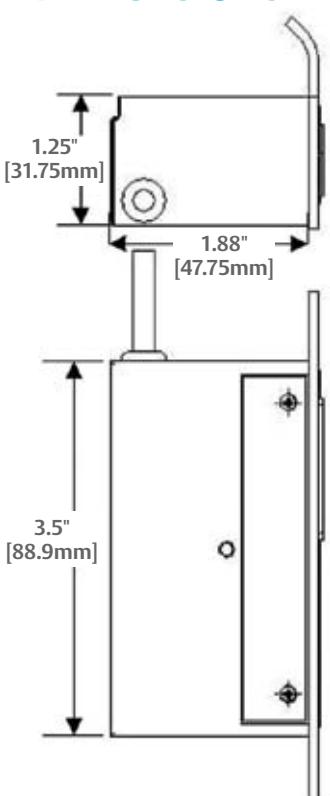

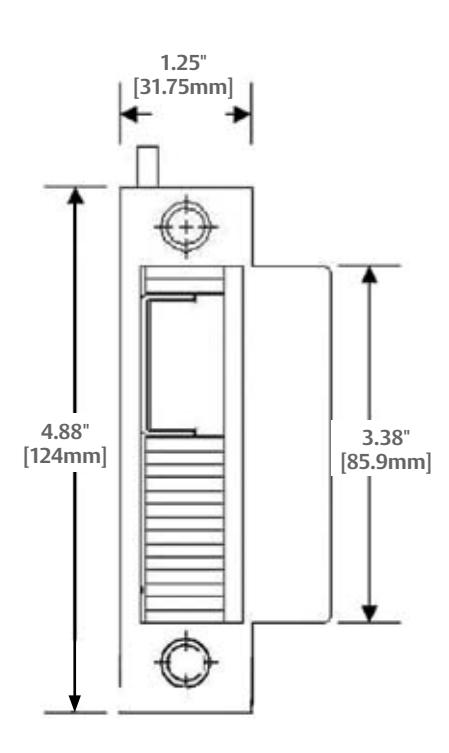

Dimensions

Specifications

Certifications

• UL 10C Listed
• CAN4-S104, CAN/ULC Listed
• NFPA-252 fire door compliant
• UL listed to ANSI/ SDI-BHMA A250.13 (60PSI) Windstorm
• ANSI/BHMA A156.31, Grade 1; E09321, E09322, E09323
• ASTM-E152 fire door compliant

Electrical

• 12 VDC (continuous duty)
  • Inrush 4 Amps
  • Standby Current 600 mA
• 24 VDC (continuous duty)
  • Inrush 2 Amps
  • Standby Current 300 mA

Holding Force

• 1500 lbs [680kg] static

Operating Temperature

• -20˚ to 125˚ F [-29˚ to 52˚ C]

Shipping Weight

• 2 lbs [0.91kg]

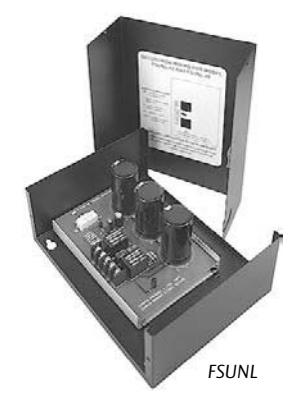

Securitron FSUNL Fail Safe Unlatch® Module

Allows Fail Safe Configuration of UNL and MUNL

The FSUNL is used with a Securitron UNL or MUNL installation to provide selectable fail safe or fail secure behavior. Removal of power initiates a full unlatch or latch cycle depending on which mode is selected.

FSUNL Fail Safe Unlatch Module

Part Number | Description

FSUNL-12 Fail Secure/Fail Safe Unlatch Module, 12 VDC, .90 mA

FSUNL-24 Fail Secure/Fail Safe Unlatch Module, 24 VDC, 1.4 mA

How to Order

Series	Fail Secure / Safe	Voltage	Finish
MUNL	—	– 24	– 10B
MUNL Mortise	(blank) Fail Secure (standard)	12 12 Volt	(blank) US26D/626—Stainless Steel
		24 24 Volt	10B US10B/613—Oil Rubbed Bronze

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

HES® 9400 Surface Mounted Electric Strike

Works with rim exit devices up to 1/2" throw latchbolt

The slim-line, surface mounted solution.

The HES 9400 Series Electric Strike is a slimline, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" throw Pullman latchbolt. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.

An 1/8" spacer plate is provided to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail safe/fail secure operation, and for 12 or 24 VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

Features

Standard Features

• Installs in metal and wood frames
• Wood screws not provided
• One 1/8" [3.2mm] spacer
• Decorative cover for sleek look
• Stainless steel construction
• Tamper resistant

plate included

• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail safe/fail secure
• Horizontal adjustability
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1/2" [12.7mm] Pullman latch
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor
• LBSM Latchbolt strike monitor

Accessories

• 9000-116-XXX 1/16" Spacer plate (Available in 613E, 628E, 630 & BSP finishes)
• 9000-108-XXX 1/8" Spacer plate (Available in 613E, 628E, 630 & BSP finishes)
• 9000-MTK Metal template kit
• SMB Surface mounting box
• 2001M Plug-in bridge rectifier
• 2 004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer
• 9000-ASB-XXX Aluminum Spacer Bracket (availible 613E, 628E, 630 & BSP finishes )
• BN-250 1/4-20 Blind Nuts

Spacer Plate Included

The HES 9400 ships with one 1/8" [3.2mm] spacer plate included in the box. Units ordered in a 630 finish are stainless steel. All other finishes have a black suede powder stainless steel spacer. Additional black spacer plates can be ordered as an accessory.
