Electric Strikes for Every Exit Device

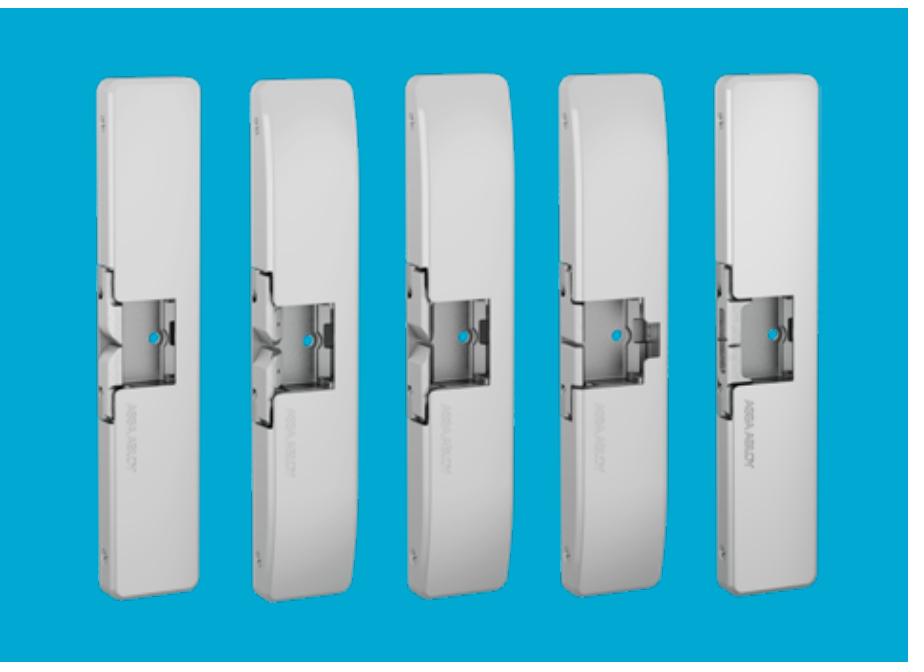

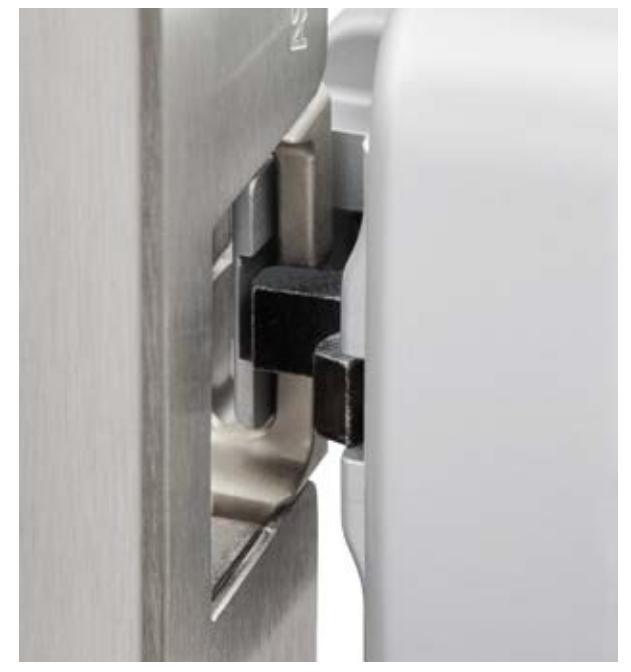

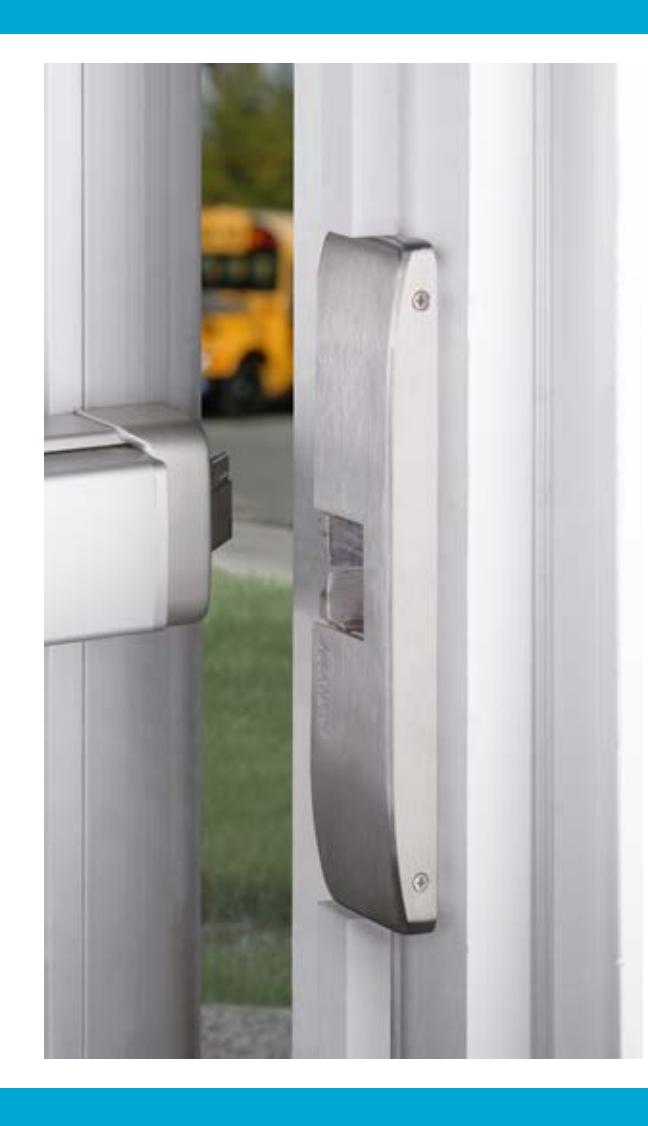

HES 9000 Family Surface Mounted Electric Strikes

ELECTRONIC SECURITY HARDWARE HES PRODUCTS

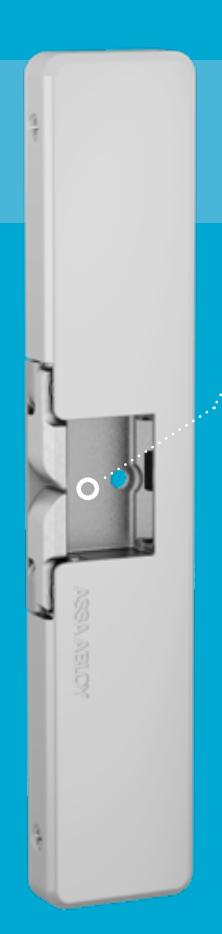

HES 9400

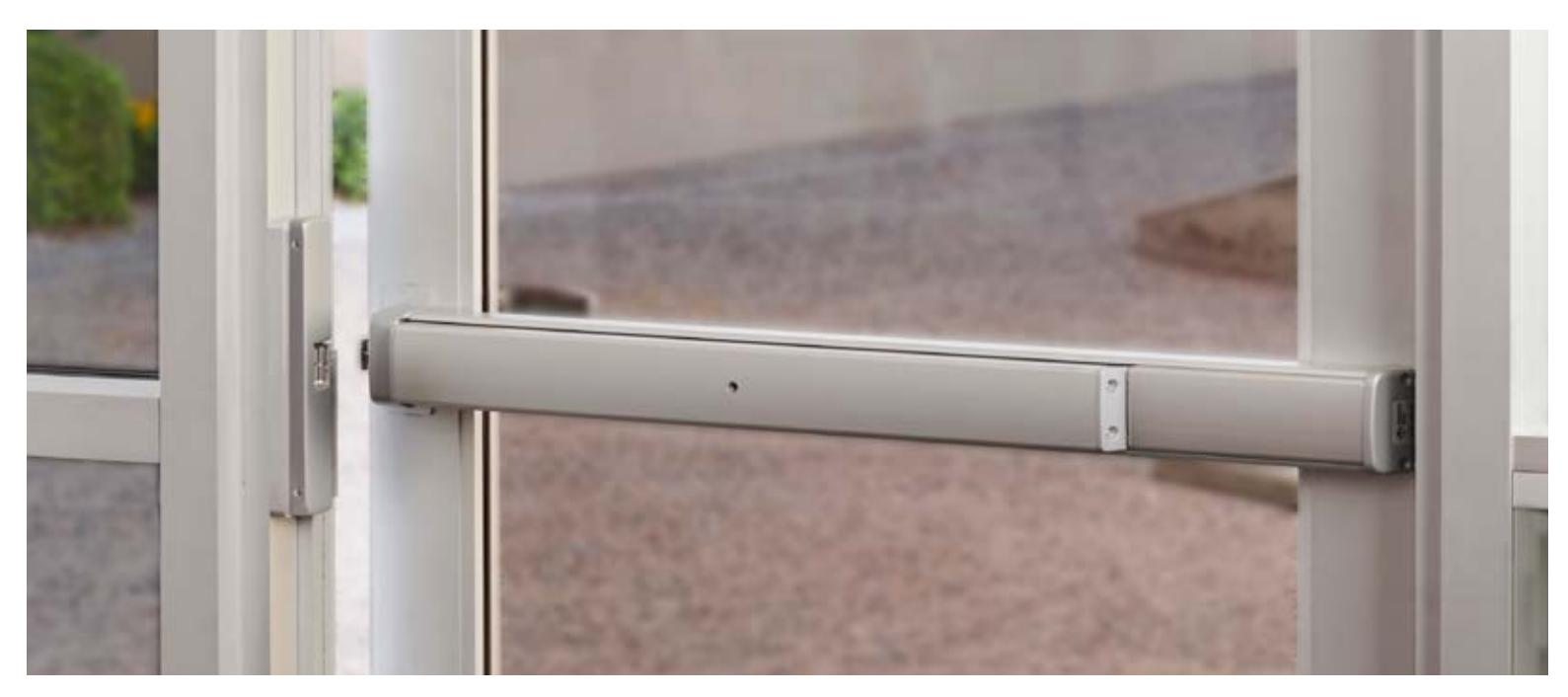

Works with rim exit devices up to ½" throw latchbolt

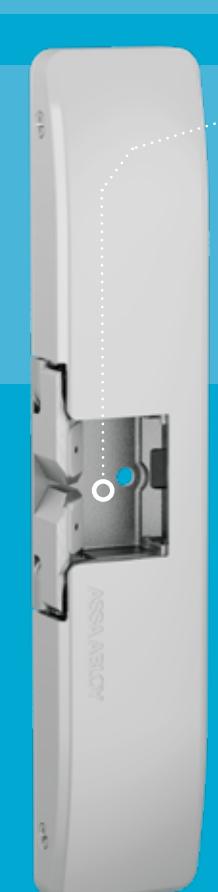

HES 9500

Works with rim exit devices up to 3/4" throw latchbolt

• UL 10C fire-rated, 3 hour single door (fail secure only)
• CAN/ULC-S104 fire door conformant
• WHI fire door listed
• NFPA-252 fire door conformant
• ASTM-E152 fire door compliant
• California Fire Marshall listed
• NFPA 80-07 compliant

Works with rim exit devices up to 3/4" throw latchbolt

• ANSI/SDI A250.13 windstorm resistant
• Florida Building Code Approved TAS 201, 202, 203
• ANSI-ASTM E330

Works with Corbin Russwin SecureBolt® and Yale SquareBolt® exit devices

• ANSI/SDI A250.13 windstorm resistant
• Florida Building Code Approved TAS 201, 202, 203
• UL 10C fire-rated, 3 hour single door (fail secure only)
• CAN/ULC-S104 fire door conformant
• NFPA-252 fire door compliant ASTM-E152 fire door compliant
• California Fire Marshall listed
• NFPA 80-07 compliant
• ANSI-ASTM E330

Works with Adams Rite Starwheel and Interlocking rim exit devices

Specifications for all HES 9000 Family Strikes

Certifications

• ANSI/BHMA, A156.31 Grade 1
• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL 294 listed
• UL 305 listed
• RoHS Compliant

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC
• 450 mA at 12VDC/250 mA at 24 VDC

Features

• No cutting required
• Horizontal adjustability
• ElectroLynx™ plug-in connectors
• Non-handed
• Internally mounted solenoid
• Tamper resistant
• Stainless steel construction
• SecuriCare five-year no-fault, no questions asked warranty

Field Selectable (Fail secure /Fail safe)
		1/2" PULLMAN		FIRE RATED 3/4" PULLMAN		3/4" PULLMAN	SQUAREBOLT | SECUREBOLT		STARWHEEL | INTERLOCK
		43	6 Fr. 9	33	Jan.	8	B
		HES 9400	Competitor	HES 9500	Competitor	HES 9600	HES 9700	Competitor	HES 9800
HOLDING FRAME APPLICATION FORCE	Hollow Metal & Wood	✓	~	✓	~	✓	✓	~	~
	Aluminum	✓	~	✓		✓	✓		~
	Surface Mounted – No Cutting Required	✓	~	✓	~	~	~	~	•
	1/2" Pullman Rim Exit Devices	✓	✓
	3/4" Pullman Rim Exit Devices	✓	~	✓	~	✓
	Securebolt & Squarebolt Rim Exit Devices						✓	~
	Adams Rite Starwheel & Interlocking Rim Exit Devices								✓
	Installation Template	✓ 9000-MTK	*	✓ 9000-MTK	✓	✓ 9000-MTK	✓ 9000-MTK	*	✓ 9000-MTK
	Static Strength*	1,500 lbs	1,500 lbs	1,500 lbs	3,000 lbs*	2,000 lbs	2,000 lbs	1,500 lbs*	1,500 lbs
	Dynamic Strength	70 ft-lbs		70 ft-lbs		120ft-lbs	120ft-lbs		70 ft-lbs
ELECTRICAL	12 VDC Current Draw	450 mA	500 mA	450 mA	566 mA	450 mA	450 mA	566 mA	450 mA
	24 VDC Current Draw	250 mA	255 mA	250 mA	253mA	250 mA	250 mA	253mA	250 mA
	Dual Voltage 12/24 VDC Continuous Duty	✓	11 to 28V AC/DC	~		✓	~	11 to 28V AC/DC	~
	Field Selectable (Fail Secure/Fail Safe)	✓	~	✓		✓	✓	~	✓
	UL 1034 Burglary-Resistant Listed (Indoor)	✓		~		✓	~		~
	UL 1034 Burglary-Resistant Listed (Outdoor)	✓		~		~	~		•
	UL 294 Listed	✓		✓		✓	✓		~
SPECIFICATIONS	UL 305 Listed	✓		~		~	✓		~
	UL 10C Fire Rated — Class A, 3 Hour Single Door			~	~		~
	Windstorm Resistant					~	✓
	Rohs Compliant	✓		~		✓	~		*
	Cycle Testing	1M	1M	1M	1.5M	1M	1M		1M
SP	Finish Options	8	6	7	6	8	7	6	7
	Monitoring Type	✓ Latchbolt+StrikeStatus	✓ Latchbolt Status Only	✓ Latchbolt+Strike Status	Latchbolt Status Only	✓ Latchbolt + Strike Status	✓ Latchbolt + Strike Status	✓ Latchbolt Status Only	COMING SOON Latchbolt + Strike Status
	Monitoring | Factory Configured (FC) Or Field Installable (FI)	FC	FC	FC	FC	FC FC	FC FC	FC	FC
	Warranty	Five-year no-questions asked	Two year	Five-year no-questions asked	Two year	Five-year no-questions asked	Five-year no-questions asked	Two year	Five-year no-questions asked
	Construction	Stainless Steel		Stainless Steel		Stainless Steel	Stainless Steel		Stainless Steel
			$^*$ Requires additional frame drilling and mounting pins to meet strength.

Accessories

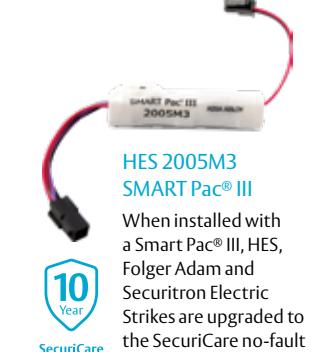

• • 2005M3 SMART Pac® III
• • SMB Surface mounting box
• • 9000-MTK Metal Template Kit
• • 9000-108-XXX 1/8" Spacer plate (available in 613E, 628E, 630 & BSP Finishes)
• • 9000-116-XXX 1/16" Spacer plate (available in 613E, 628E, 630 & BSP Finishes)

How to Order

10-year Warranty.

Series	Finish*	Option (s)
9700	– 630	– LBM
9400	605 Bright Brass	LBM Latchbolt Monitor
9500	606 Satin Brass	LBSM Latchbolt Strike Monitor
9600	612 Satin Bronze
9700	613 Bronze Toned
9800	613E Dark Oxidized Satin Bronze
	629 Bright Stainless Steel
	630 Satin Stainless Steel

LBM — Latchbolt monitor detects when latchbolt is in a locked state.

LBSM — Latchbolt strike monitor detects latchbolt and strike are in a locked state.
