HES 8300 Series Electric Strike Catalog
Open the original PDF document
View PDF
Electronic Security Hardware
HES | Securitron Product Catalog

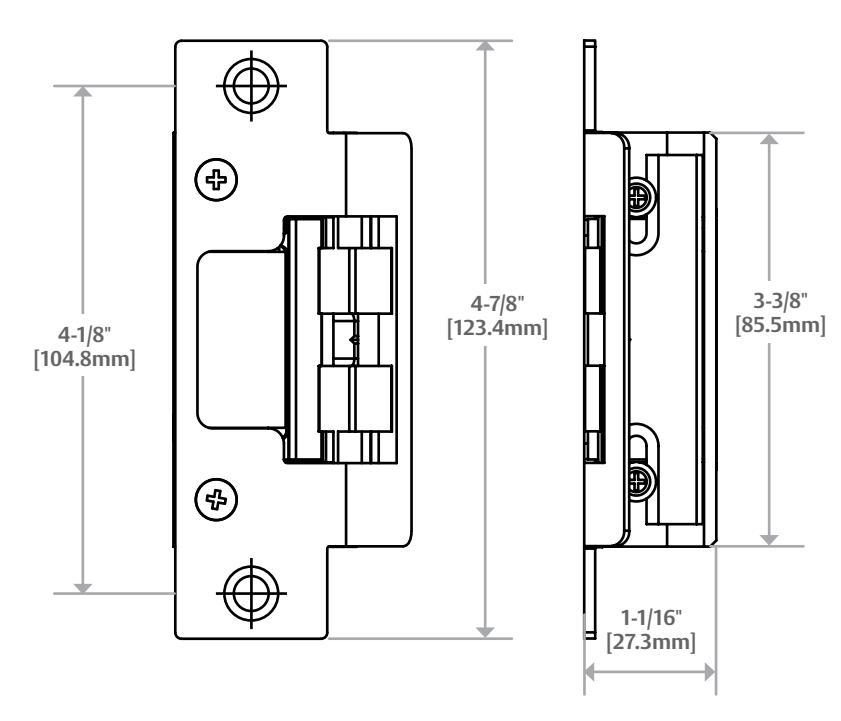

Dimensions
Specifications
Certifications
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
Frame Application
- Metal
- Wood
- Aluminum
Electrical (DC Continuous Duty)
- Dual voltage 12/24 VDC/VAC
- 240 mA at 12 VDC/120 mA at 24 VDC
- PoE friendly
Diagram shown with 801 Option
How to Order
| Series | Model | Finish | Option (s) |
|---|---|---|---|
| 8000 | _ | – 630 | – LBM |
|
8000 Universal Electric
Strike; faceplates ordered separately |
C* Complete Electric Strike;
includes the 801 and 5801A faceplates |
605 Bright Brass | |
| 606 Satin Brass | |||
| 612 Satin Bronze | |||
| 613 Bronze Toned | |||
| 629 Bright Stainless Steel | |||
| 630 Satin Stainless Steel | |||
| BLK Black |
*Complete Pacs are only available in the 630 finish
NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.
HES® 8300 Electric Strike
Works with cylindrical locksets and accommodates latchbolts up to 5/8" throw Also available in
a Complete One Box Solution
The fire rated, concealed solution for cylindrical locksets.
The HES 8300 Series Electric Strike is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing ANSI strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the HES 8300 to exceed the ratings of the frame, door and locking hardware. This unique electric strike is easy to install and complies with NFPA 80-07 guidelines for retrofit into fire rated frames. The HES 8300 accommodates latchbolts up to 5/8" throw.
Features
Standard Features
- Complies with the guidelines for retrofit into fire rated frames
- No cutting on frame required for 4-7/8" ANSI prep
- Vertical adjustability to accommodate door sag and misalignment
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Accommodates 1/2" 5/8" [12.7mm – 15.9mm] cylindrical latchbolt (5/8" [15.9mm] with 1/8" [3.175] door gap)
- Strike body depth 1-1/16" [27.3mm]
- Plug-in connector
- SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)
Optional Features
• LBM Latchbolt monitor
Accessories
- 2001M Plug-in bridge rectifier
- 2004M ElectroLynx® adapter
- 2005M3 SMART Pac® III
- 2006M Plug-in buzzer
