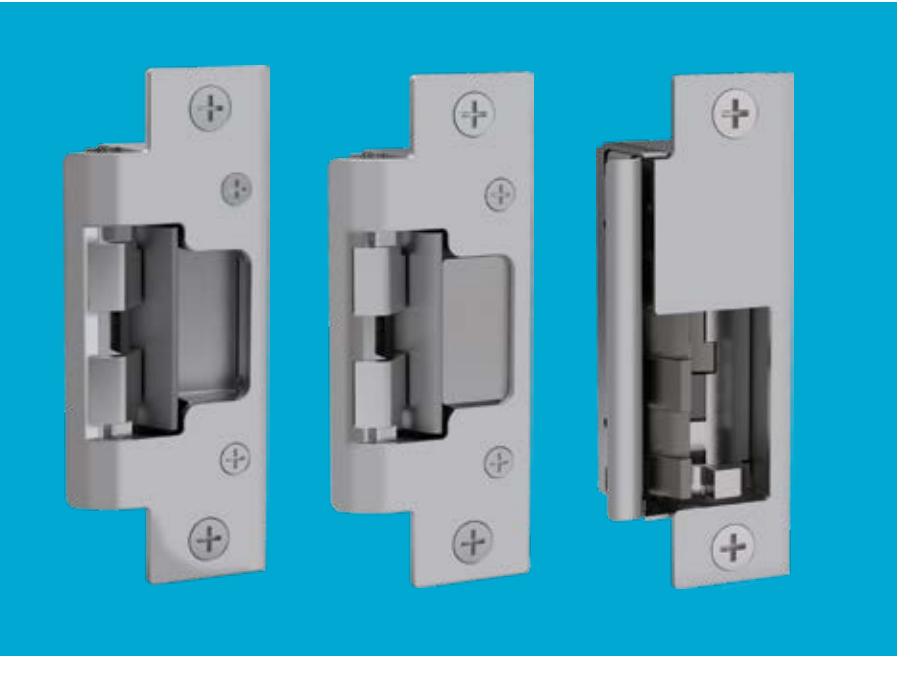

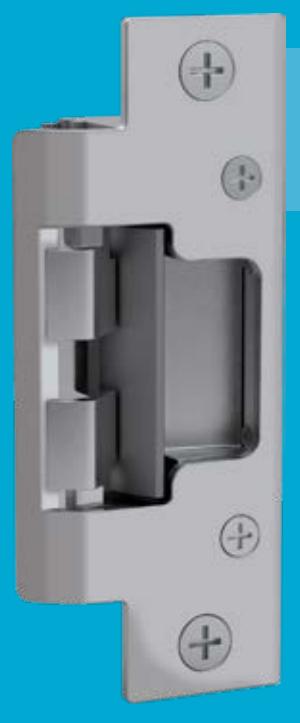

HES® 8000 Series No-Cut Electric Strikes
Retrofit solutions to electrify cylindrical and mortise locksets
ELECTRONIC SECURITY HARDWARE HES PRODUCTS
The HES 8000 Series offers compact, high performance electric strikes featuring a unique concealed design for cylindrical or mortise locksets.
No cutting on the frame is required, which means less time spent installing the strike. Simply remove the existing strike plate, adjust the vertical alignment to the latchbolt centerline, and install.
Ideal for aluminum, wood and hollow metal applications in office spaces, interior entries, stairwells, and other openings requiring electronic access control.
Works with Cylindrical Locksets up to a 5/8" Throw Latchbolt
- Fits in standard ANSI prep
- Completely concealed in frame
- Available in seven finishes

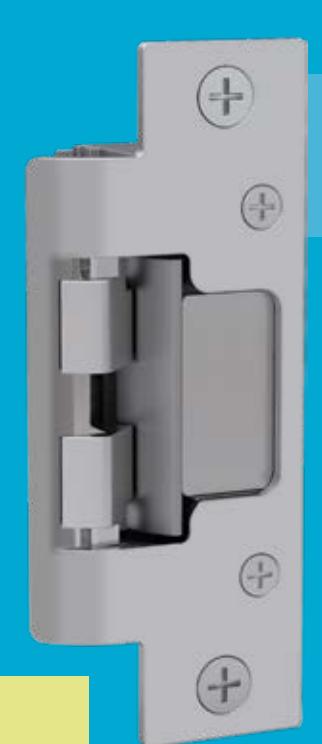

HES 8300
Works with Cylindrical Locksets up to a 5/8" Throw Latchbolt
Works with Mortise Locksets without a Deadbolt up to 3/4" Throw Latchbolt
Full pocket shims for horizontal adjustment
Saves Time
- No cutting in to the face of the frame
- Accommodates door sag with patented vertical adjustability

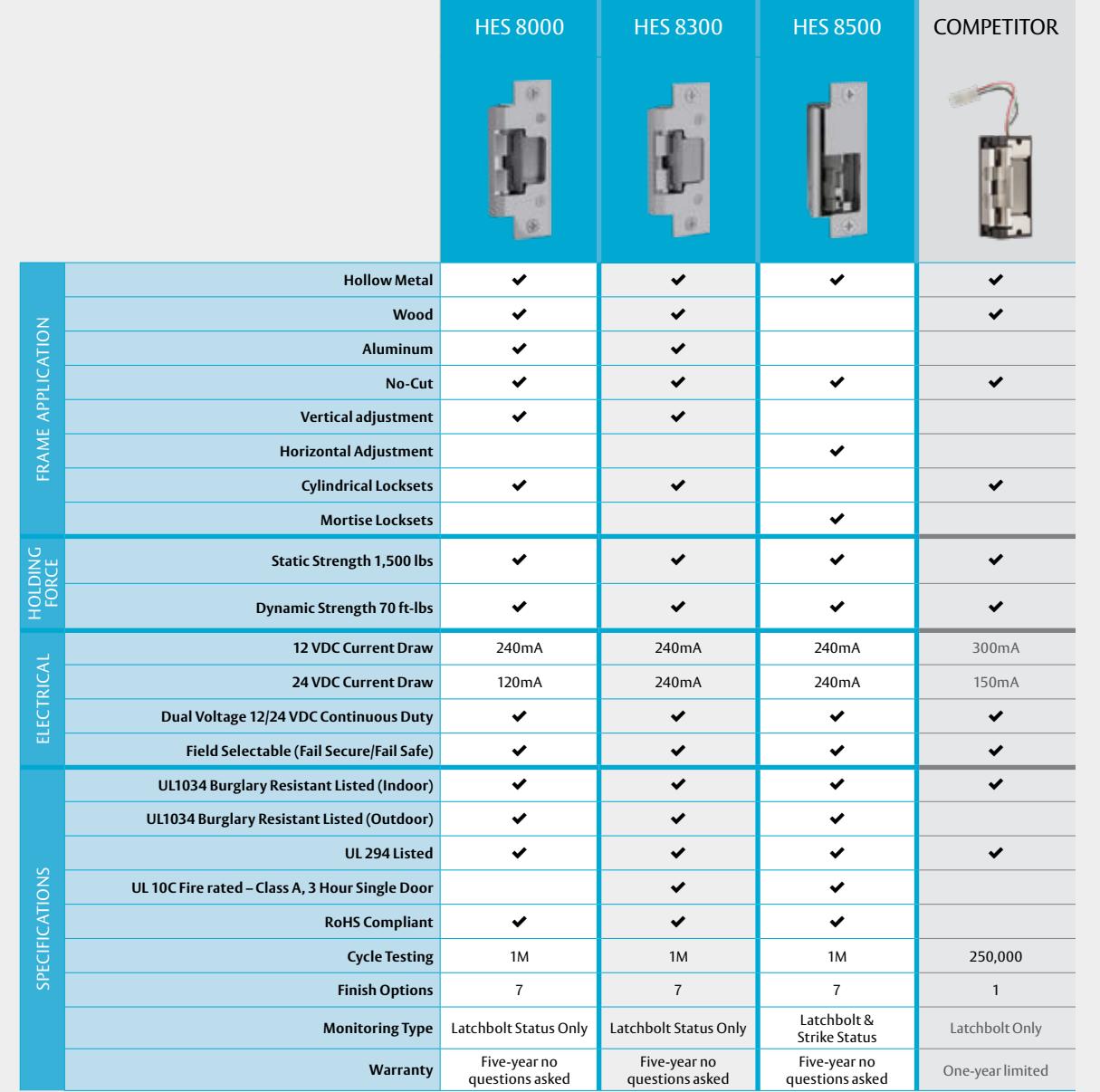

Specifications for all HES 8000 Family Strikes
Certifications
- ANSI/BHMA, A156.31 Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS Compliant
Electrical (DC Continuous Duty)
- Dual voltage 12/24 VDC
- 240 mA at 12VDC/120 mA at 24 VDC
Features
- No cutting required
- Vertical adjustability to accommodate door sag and misalignment
- Tamper resistant
- Non-handed
- Internally mounted solenoid
- SecuriCare five-year, no-fault, no questions asked warranty
- Addition of HES SMART Pac® III extends warranty to 10 years
The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.
ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, locks, perimeter fencing, access control and service.
How to Order
| Series | Model | Finish* | Option (s) |
|---|---|---|---|
| 8000 | — | – 630 | – LBM |
| 8000 | C* Complete Electric | 605 Bright Brass |
LBM
Latchbolt
Monitor |
| 8300 | Strike; Includes the 801 and 801A faceplates | 606 Satin Brass | |
| and oom tideeplates | 612 Satin Bronze | ||
| 613 Bronze Toned | |||
| 629 Bright Stainless Steel | |||
| 630 Satin Stainless Steel | |||
| BLK Black | |||
| 8500 | 605 Bright Brass |
LBM
Latchbolt
Monitor |
|
| 606 Satin Brass | |||
| 612 Satin Bronze |
LBSM
Latchbolt
& Strike Monitor |
||
| 613 Bronze Toned | |||
| 629 Bright Stainless Steel | |||
| 630 Satin Stainless Steel |
*Complete Pacs are only available in the 630 finish
