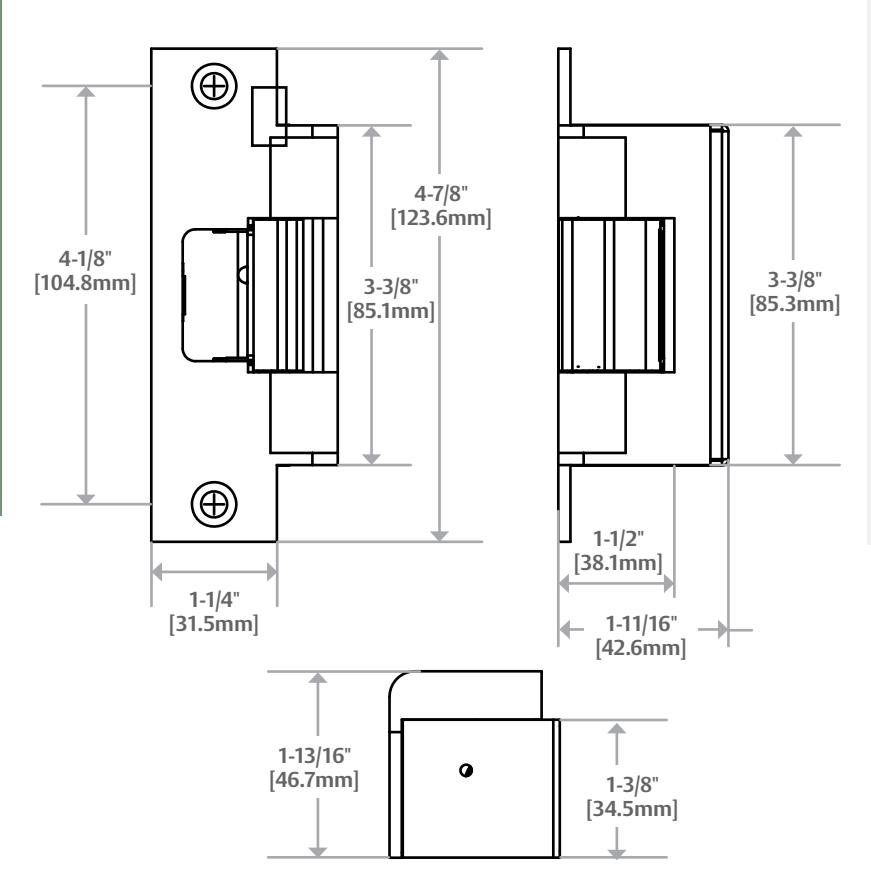

Dimensions

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1
• UL 1034 burglary-resistant listed
• UL 10C fire rated, 3-hour (fail secure only)
• CAN/ULC-S104 fire door conformant
• NFPA-252 fire door compliant
• ASTM-E152 fire door compliant
• UL 294 listed

Frame Application

• Metal

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC
• 450 mA at 12 VDC/250 mA at 24 VDC

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4" x 1-11/16" [123.8mm x 31.75mm x 42.9mm]

HES 7501

For use with: Cylindrical locksets up to a 3/4" [19mm] throw

ANSI/BHMA Numbers: E09321, E09322, E09323

How to Order

Series	Finish	Option (s)
7501	– 630	– LBM
7501 Universal Electric Strike; includes faceplate for cylindrical locksets	605 Bright Brass	LBM Latchbolt Monitor
	606 Satin Brass
	612 Satin Bronze
	613 Bronze Toned
	629 Bright Stainless Steel
	630 Satin Stainless Steel

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

35

HES® 8000 Electric Strike

Works with cylindrical locksets and accommodates latchbolts up to 5/8" throw Also available in

a Complete One Box Solution

The concealed electric strike solution for cylindrical locksets.

The HES 8000 Series Electrical Strike is a compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the HES 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• No cutting on frame required
• Vertical adjustability to accommodate door sag and misalignment
• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail safe/fail secure
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2" 5/8" [12.7mm – 15.9mm] cylindrical latchbolt (5/8" [15.9mm] with 1/8" [3.175mm] door gap)
• Strike body depth 1-1/16" [27.3mm]
• Strike body width 1-7/16" [36.5mm]
• Plug-in Connector
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer
