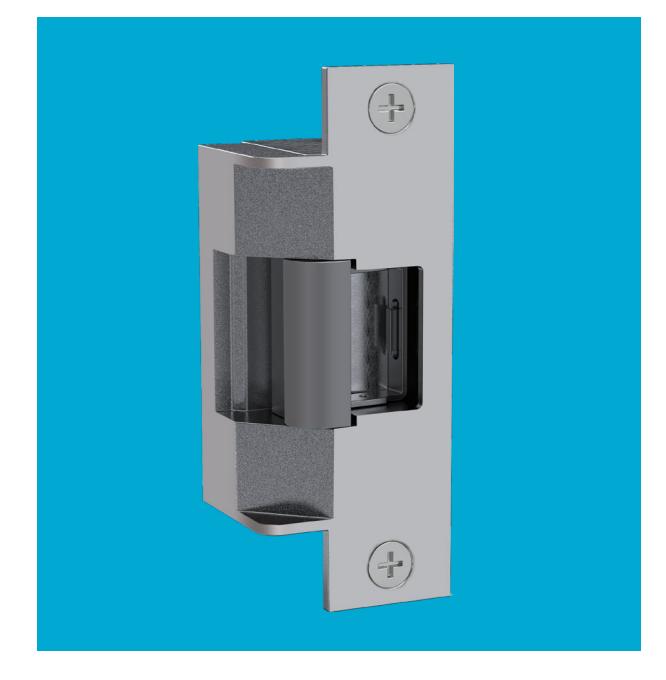

HES® 7501 Electric Strike Complete Pac

The Grade 1, fire-rated, preload solution.

Preload Capable

• Preload release function allows smooth operation under loads on the door that often bind other electric strikes
• Accommodates up to 15 pounds of preload (fail secure only)
• Ideal for applications with preload caused by airconditioning pressure, changes in the weather, warped doors or doors with weather stripping

Robust and Reliable

• ANSI/BHMA A156.31, Grade 1
• Static strength 1,500 lbs, Dynamic strength 70 ft-lbs
• Endurance 1 million cycles

Versatile Design

• Works with both cylindrical latchbolts up to 3/4" throw
• Field selectable fail secure/fail safe
• Non-handed and includes plug in connector

Preload Capable | Horizontal Adjustment | Latchbolts & Rim Exits

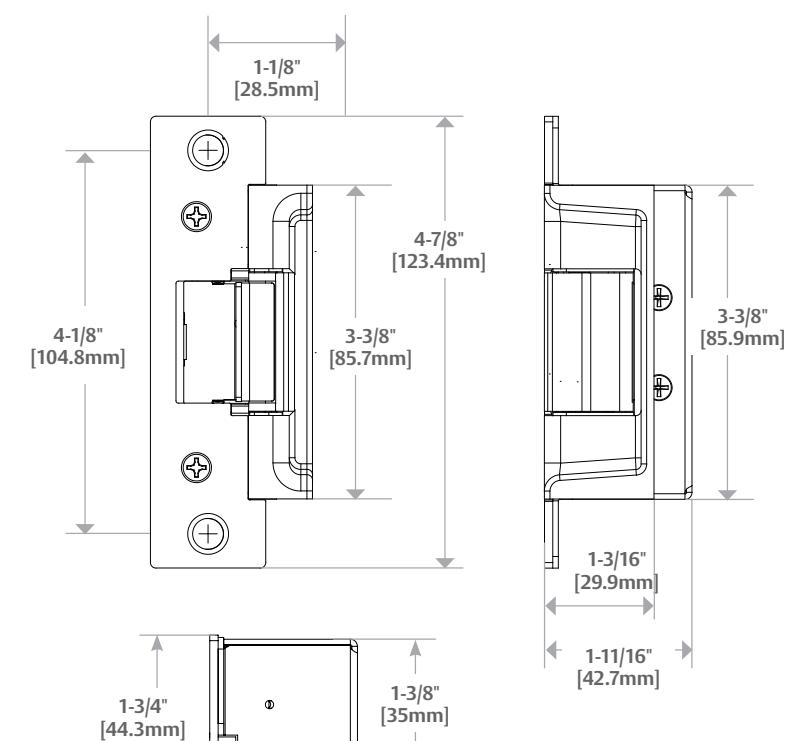

Dimensions

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1
• UL 1034 burglary-resistant listed
• UL 10C fire rated, 3 hour (fail secure only)
• CAN/ULC-S104 fire door conformant
• NFPA-252 fire door compliant
• ASTM-E152 fire door compliant

Frame Application

• Metal
• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC
• PoE friendly

Features

Standard Features

• Stainless steel construction
• Tamper-resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles
• Field selectable fail secure /fail safe
• Accommodates preload (up to 15lbs: fail secure only)
• Non-handed
• Internally mounted solenoid
• Strike body depth 1-11/16"
• Plug-in connector
• Trim enhancer
• SecuriCare five-year, no-fault, no questions asked warranty

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer
• 150 Strike latch guard
• HESCUT-MTK Metal Template Kit

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4" x 1-11/16"

7501

For use with: Cylindrical locksets up to a 3/4" throw

ANSI/BHMA Numbers: E09321, E09322, E09323

How to Order

	Series		Finish*		Option (s)
	7501		– 630		– LBM
7501	Universal Electric Strike; Includes faceplate for cylindrical locksets	605	Bright Brass	LBM	Latchbolt Monitor
		606	Satin Brass
		612	Satin Bronze
		613	Bronze Toned
		629	Bright Stainless Steel
		630	Satin Stainless Steel
