HES 7000 Series Faceplate Options

	Operation: After releasing the latchbolt, the keeper returns to the locked position.
4-7/8" × 1-1/4" [123.8mm x 31.75mm]	791 Option For use with: Cylindrical locksets up to 5/8" [15.9mm] throw ANSI/BHMA Numbers: E09321, E09322, E09323
7-15/16" × 1-7/16" [201.6mm × 36.5mm]	792 Option For use with: Cylindrical locksets up to 5/8" [15.9mm] throw ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing Pullman latch, the keeper returns to the locked position.

9" × 1-3/4" × 11/16" [228.6mm × 44.5mm × 17.5mm]

783S Option

For use with: Rim exit devices in metal jambs with up to a 3/4" [19mm] Pullman latch

Compatible locksets: American Device, Arrow,

Dor-O-Matic, Monarch, Precision, Sargent, Von Duprin, Yale

ANSI/BHMA Numbers: E09311, E09312, E09313

6-1/2" × 1-3/4" × 1/2" [165.1mm × 44.5mm × 12.7mm]

786S Option

For use with: Rim exit devices in aluminum jambs and surface mounted vertical rod exit devices with up to a 3/4" [19mm] Pullman latch. Includes keeper pocket adapter.

Compatible locksets: American Device, Arrow, Dor-O-Matic, Jackson, Monarch, Precision, Sargent, Von Duprin, Yale

ANSI/BHMA Numbers: E09311, E09312, E09313

9" × 1-3/4" × 1/2" [228.6mm × 44.5mm × 12.7mm]

789S Option

For use with: Rim exit devices in aluminum jambs with up to a 3/4" [19mm] Pullman latch. Includes keeper pocket adapter.

Compatible locksets: American Device, Arrow, Dor-O-Matic, Jackson, Monarch, Precision, Sargent, Von Duprin, Yale

ANSI/BHMA Numbers: E09311, E09312, E09313

^& quot;For use with" information is offered as a recommendation only. Reference should be made to the lockset manufacturer for proper installation instructions necessary to meet compatibility requirements.

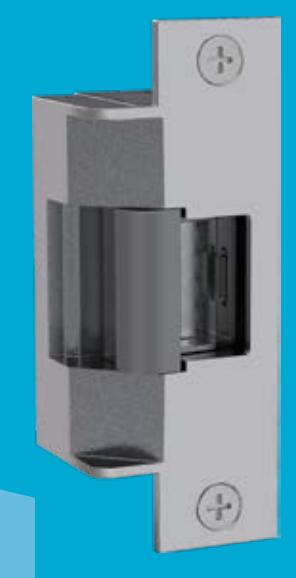

HES® 7501 Electric Strike Complete Pac

Works with cylindrical locksets up to a 3/4" throw latchbolt Also available in

a Complete One Box Solution

The Grade 1, fire rated, preload solution.

The HES 7501 Series Electric Strike is ideal for fire rated applications with preload conditions caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire rated latchbolts up to 3/4" throw.

Features

Standard Features

• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail safe/fail secure
• Accommodates preload (up to 15lbs: fail secure only)
• Non-handed
• Internally mounted solenoid
• Strike body depth 1-11/16" [42.86mm]
• Plug-in connector
• Trim enhancer
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer
• 150 Strike latch guard
• HESCUT-MTK Metal Template Kit
