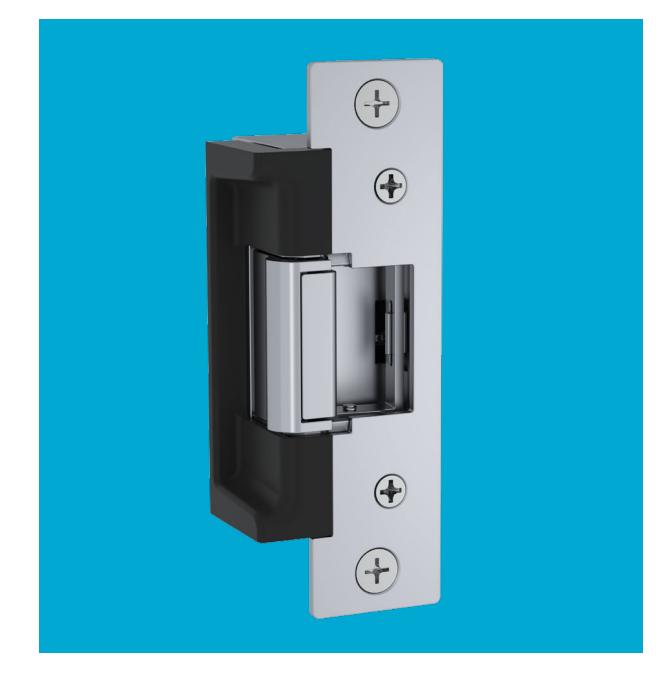

HES® 7000 Electric Strike

The dual, preload solution for cylindrical latchbolts and rim exit devices.

Preload Capable

• Preload release function allows smooth operation under loads on the door that often bind other electric strikes
• Accommodates up to 15 pounds of preload (fail secure only)
• Ideal for applications with preload caused by airconditioning pressure, changes in the weather, warped doors or doors with weather stripping

Robust and Reliable

• ANSI/BHMA A156.31, Grade 1
• Static strength 1,500 lbs, Dynamic strength 70 ft lbs
• Endurance 1 million cycles

Versatile Design

• Works with both cylindrical latchbolts up to 5/8" throw
• Field selectable fail secure/fail safe
• Non-handed and includes plug in connector

Preload Capable | Horizontal Adjustment | Latchbolts & Rim Exits

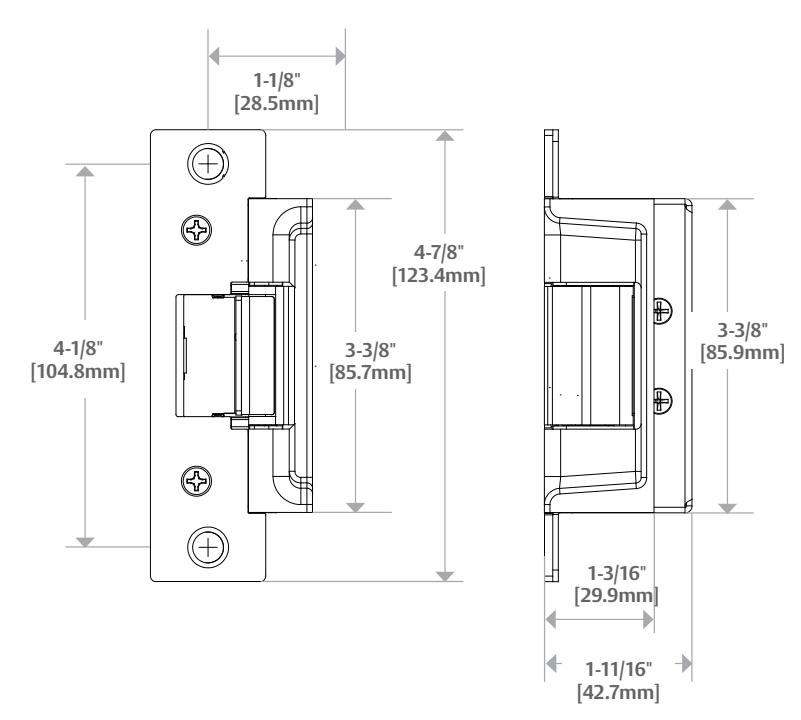

Dimensions

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1 (791 & 792 options)
• ANSI/BHMA A156.31. Grade 2 (783S, 786S & 789S options)
• UL 1034 burglary-resistant listed
• UL 294 listed

Frame Application

• Metal
• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC
• PoE friendly

Features

Standard Features

• Stainless steel construction
• Tamper-resistant
• Static strength 1,500 lbs (791 and 792 options)
• Dynamic strength 70 ft-lbs (791 and 792 options)
• Static strength 1,000 lbs (783S, 786S, and 789S options)
• Dynamic strength 50 ft-lbs (783S, 786S, and 789S options)
• Endurance 1 million cycles
• Field selectable fail secure/fail safe

*Complete Pacs are only

available in the 630 finish

Accommodates preload (up to 15lbs: fail secure only)

• Internally mounted solenoid
• Strike body depth 1-11/16"
• Plug-in connector
• Trim enhancer (791 and 792 options)
• Pocket adapter (786S and 789S options)
• SecuriCare five-year, no-fault, no questions asked warranty

Optional Features

LBM Latchbolt monitor

Accessories

• SMB Surface mounting box (783S and 789S options)
• 7000-104 Lip extension trim adapter
• 7000-105 Trim enhancer (goof plate)
• 7000-106 Keeper pocket adapter
• 7000-107 Full keeper shim
• 7000-108 1/8" spacer plate (783S and 789S options, black finish only)
• 7000-110 Replacement strike plate (791 and 792 option)
• 150 Strike latch guard
• HESCUT-MTK Metal template kit
• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer

Model Finish* Option (s) 7000 -630 LBM Latchbolt 7000 Universal C* Complete Electric 791 and 792 Options 783S, 786S, 789S Options Electric Strike; Strike: Includes Monitor Bright Brass Dark Oxidized Satin Bronze Faceplates the 791 and 792 faceplates ordered 606 Satin Brass 630 Satin Stainless Steel separately 612 Satin Bronze 613E Dark Oxidized Satin Bronze 629 Bright Stainless Steel

Satin Stainless Steel

How to Order

BLK Black
