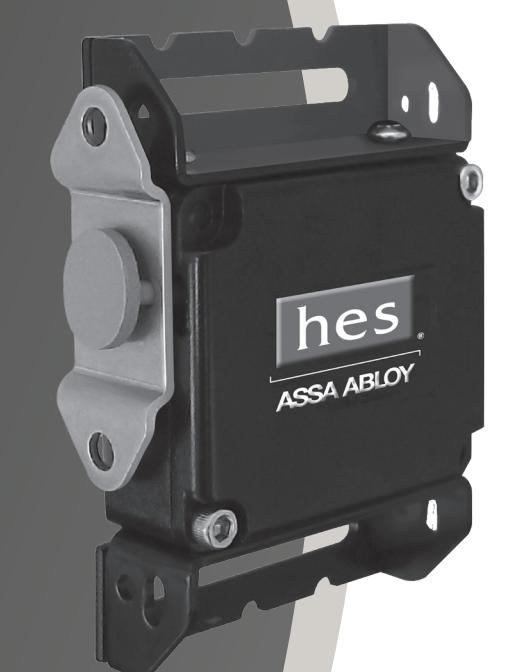

660

Series

The strongest surface mounted, multi-purpose locking solution

Standard Features

• Static strength 1,000 lbs. •
• Dynamic strength over 100 ft-lbs. •
• Endurance over 1,000,000 cycles •
• Available in either 12 or 24 VDC
  • All metal construction •
• Adjustable mounting brackets with final lockdown feature
  • 6 foot cable lead •
  • Patented design •
  • 3 year limited warranty •

Optional Features

• LBSM "Locked State" Monitoring
  • Pre-load version •

Electrical

• .24 Amps @ 12VDC continuous duty •
• .12 Amps @ 24VDC continuous duty •
• .70 Amps @ 12VDC (pre-load option) •
• .35 Amps @ 24VDC (pre-load option) •

Accessories

KO - 660 Key override option •
