Electronic Security Hardware

HES | Securitron Product Catalog

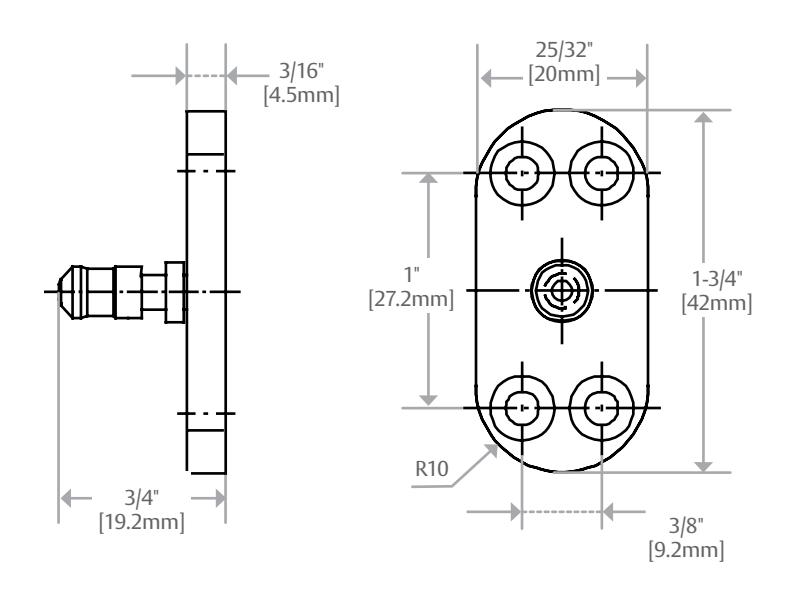

Dimensions

Specifications

Electrical

• Dual Voltage 12/24 VDC/VAC
• Monitored contact rating 25V / 1A
• 260mA at 12 VDC / 130mA at 24 VDC 140mA at 12 VAC / 70mA at 24 VAC

Holding Force

• Static Strength 200 lbs

Environmental

• Operational Temperature 14˚ to 104˚ F [-10˚ to 40˚ C]
• IP20 Rated
• Indoor Use

How to Order

Series	Option (s)
610	– LM
	(blank) No Monitoring
	LM Locked state monitoring

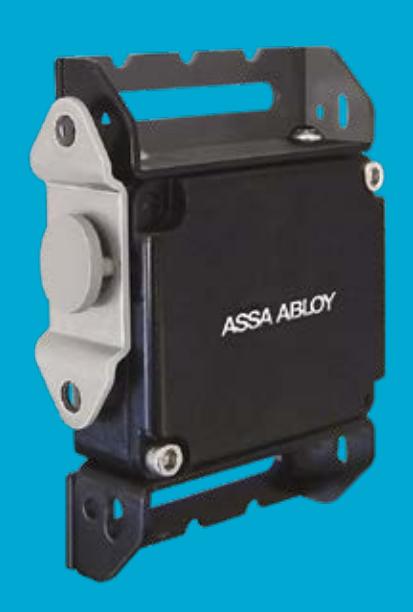

HES® 660 Cabinet Lock

The strongest surface mounted, multi-purpose locking solution

With over 1,000 lbs of static holding force.

The HES 660 Cabinet Lock is available with or without locked state monitoring and a preload release function allowing for smooth functional operation under a variety of environmental conditions. Strong, convenient and flexible, it is ideal for corporate and government applications including lockers, cabinets and display cases.

Features

Standard Features

• All metal construction
• Adjustable mounting brackets with final lockdown feature
• 6 foot cable lead
• Fail Secure (standard)
• SecuriCare three-year, no-fault, no questions asked warranty

Optional Features

• Preload (up to 15 lbs)
• LBSM Locked state monitoring
• LBSM Preload Locked state monitoring with preload

Accessories

• KO Key override
