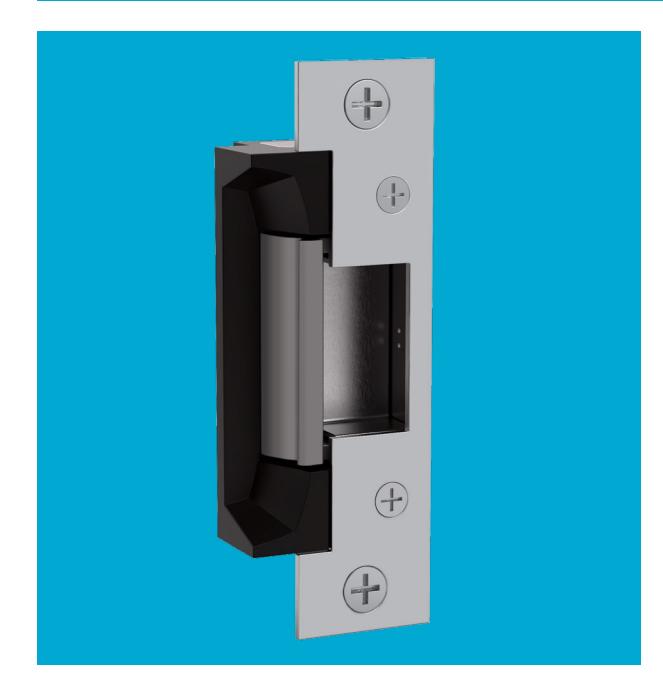

HES® 5200 Electric Strike

The Grade 1 solution with horizontal adjustability.

Horizontal Adjustability

• Easily adjusts once installed to accommodate for the position of the latchbolt
• Simple installation process

Versatile Design

• Field selectable fail secure/fail safe
• Accommodates latchbolts up to 3/4" throw
• Plug-in connector and trim enhancer included

Tested for Durability

• ANSI/BHMA A156.31, Grade 1
• Static strength 1,500 lbs, Dynamic strength 70 ft lbs
• Endurance 1 million cycles

Low Profile | Horizontal Adjustment | Latchbolts

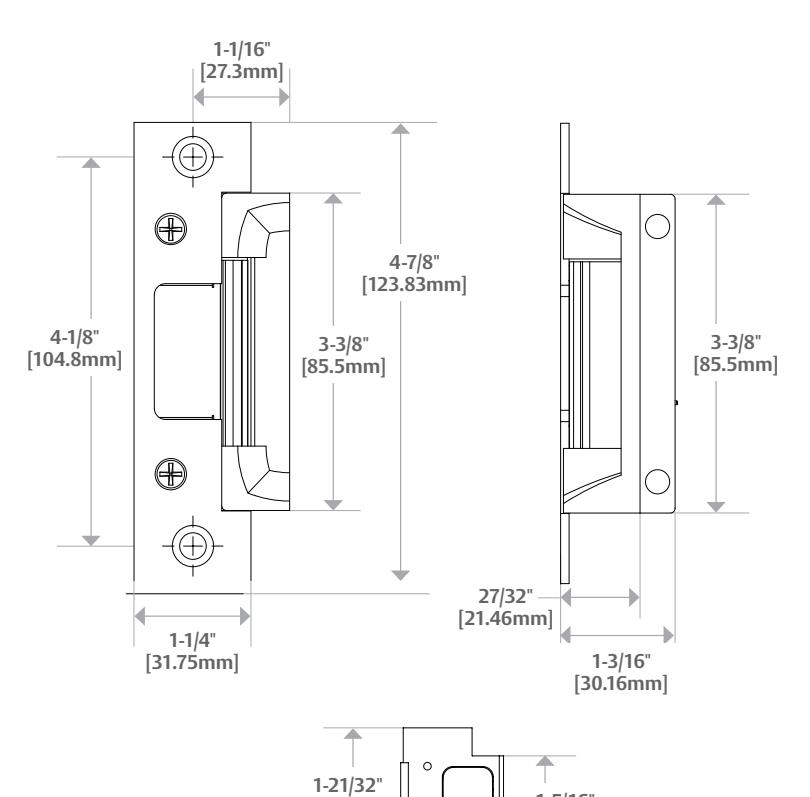

Dimensions

1-5/16" [33.5mm] [41.9mm]

Diagram shown with 501 Option

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1
• UL 1034 burglary-resistant listed
• UL 294 listed
• RoHS compliant

Frame Application

• Metal
• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC
• PoE friendly

Features

Standard Features

• Tamper-resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• In-frame horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates 5/8" 3/4" latchbolt (3/4" with 1/8" door gap)
• Strike body depth 1-3/16"

• Plug-in connector
• Trim enhancer included
• SecuriCare five-year, no-fault, no questions asked warranty

Optional Features

• LBM Latchbolt monitor
• LBSM Latchbolt strike monitor

Accessories

• 5200-500 Filler block for retro-fit applications
• 150 Strike latch guard
• HESCUT-MTK Metal template kit
• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer
• 5204-1/2 1/2" stackable lip extension
• 5204-1 1" stackable lip extension
• 5204-1-1/4 1-1/4" stackable lip extension

How to Order

Series		Model	Finish*	Option (s)
5200		–	– 630	– LBM
5200 Universal Electric Strike; Faceplates ordered separately		C* Complete Electric Strike; Includes the 501 and 501A faceplates	605 Bright Brass	LBM Latchbolt Monitor
			606 Satin Brass	LBSM Latchbolt Strike Monitor
			612 Satin Bronze
			613 Bronze Toned
			629 Bright Stainless Steel
			630 Satin Stainless Steel
			BLK Black

^* Complete Pacs are only available in the 630 finish
