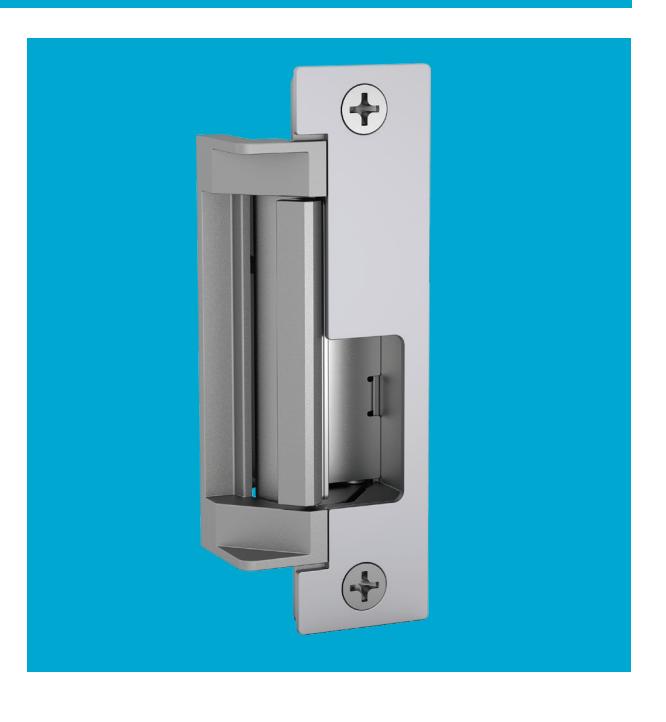

HES® 4500C Electric Strike Complete Pac

The low profile, heavy duty, fire-rated solution.

Low Profile

• Maintains 1/2" drywall penetration, even in a 2" UL 10C fire-rated frame
• Strike body depth 1-3/8"
• Unique keeper locking pin design

Heavy Duty Construction

• Exceeds ratings for most frames, doors and locking hardware
• Stainless steel construction
• ANSI/BHMA A156.31, Grade 1

Convenient & Versatile

• Includes two faceplates to accommodate either cylindrical or mortise locksets up to a 3/4" throw latchbolt
• Full keeper shims for horizontal adjustment
• Field selectable fail secure / fail safe

Low Profile | Heavy Duty | Latchbolts

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1
• UL 1034 burglary-resistant listed
• UL 294 listed
• UL 10C fire-rated, 3 hour (fail secure only)
• CAN/ULC-S104 fire door conformant
• NFPA-252 fire door compliant
• ASTM-E152 fire door compliant
• California Fire Marshal listed

Frame Application

• Metal
• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC
• PoE friendly

Features

Standard Features

• Stainless steel construction
• Tamper-resistant
• Static strength 1,500 lbs
• Dynamic strength 100 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• Two faceplates provided to accommodate a variety of locksets

Non-handed

• Internally mounted solenoid
• Accommodates up to a 3/4" latchbolt
• Strike body depth 1-3/8"
• Plug-in connector
• Trim enhancer
• Full keeper shims for horizontal adjustment
• SecuriCare five-year, no-fault, no questions asked warranty

Optional Features

• LBM Latchbolt monitor
• LBSM Latchbolt strike monitor

Accessories

• 4500-105 Trim enhancer black
• 4500-110 Replacement strike plate
• 4500-131 Filler block 7/16"
• 150 Strike latch guard
• HESCUT-MTK Metal template kit
• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer
• 4501-1/2 1/2" stackable lip extension
• 4501-1 1" stackable lip extension

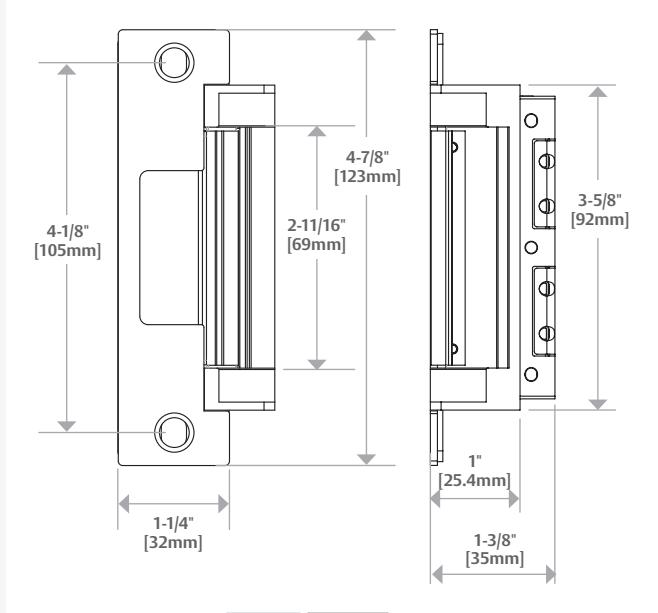

Dimensions

Diagram shown with cylindrical faceplate

How to Order

Series		Finish*		Option (s)
4500C		-630		– LBM
4500C	Complete Electric Strike; Includes faceplates for cylindrical and mortise locks	605	Bright Brass	LBM	Latchbolt Monitor
		606	Satin Brass	LBSM	BSM Latchbolt Strike Monitor
		612	Satin Bronze
		613	Bronze Toned
		629	Bright Stainless Steel
		630	Satin Stainless Steel
