HES 2001M Plug In Bridge Rectifier Installation Instructions

Installation Instructions 2001M Plug-In Bridge Rectifier

HES, Inc. 22630 N. 17th Ave. Phoenix, AZ 85027 800-626-7590 www.hesinnovations.com

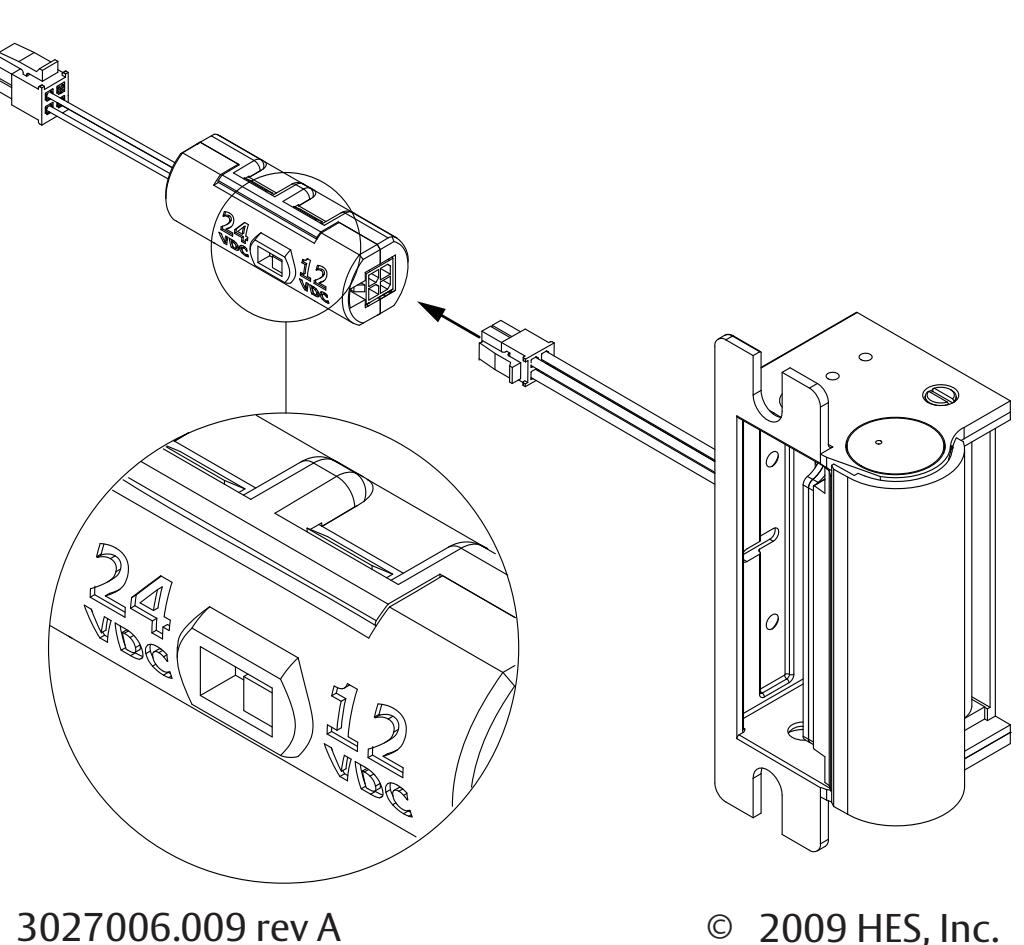

1. Connect the electric strike and either of the pigtails included with the electric strike into the 2001M rectifier. Either pigtail can be used, as the 2001M rectifier will be used to configure the electric strike for voltage input.

2. If 12 volt power is being used, move the slide switch to the 12VDC position. If 24 volt power is being used, move the slide switch to the 24VDC position
