1500 Series and 1600 Series Electric Strikes
Installation Instructions
NOTE: Installation wiring for the product and wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70.
Product Components
-

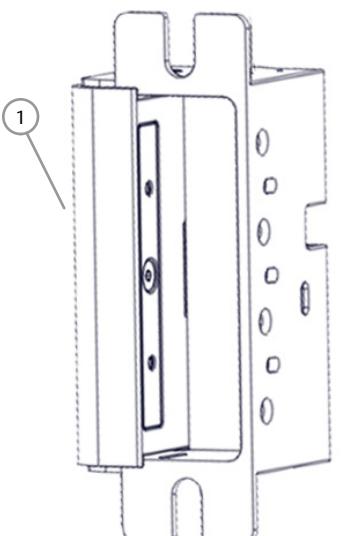

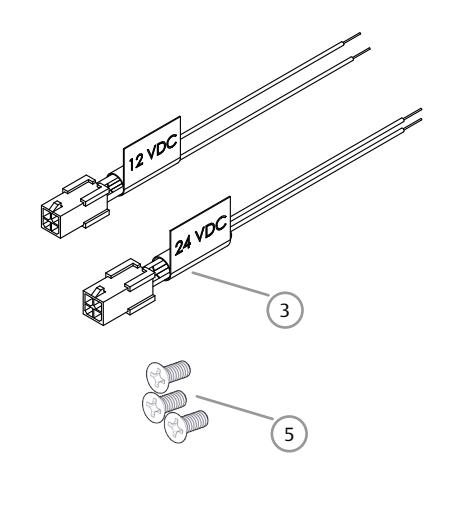

1500 Series or 1600 Series Electric Strike (3) Pigtails (12 VDC and 24 VDC)

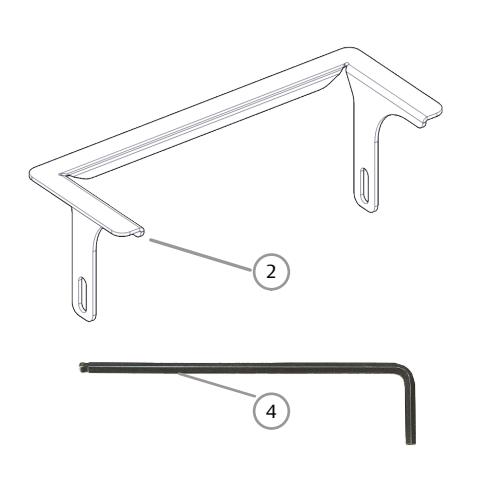

- 4 5/64" Hex Wrench
- ⑤ #6-32 x 3/16" Phillips Head Screws to Mount Trim Enhancer
Specifications
|
ELECTRICAL RATINGS FOR
1500/1600 (Solenoid) |
Solenoids are rated at +/- 10% indicated value. * Applies to AC Only: 10% max duty cycle (2 min. max on time) | |||
|---|---|---|---|---|
| VOLTAGE | 12 VDC | 24 VDC | 12–16 VAC | 24 VAC |
| CONTINUOUS DUTY | 0.24A | 0.12A | - | - |
| INTERMITTENT DUTY* | - | - | 0.24-0.32A | 0.12A |
| ELECTRICAL RATINGS FOR | Input voltage: 10–30 VDC, Autosensing | ||||
|---|---|---|---|---|---|
| 1500E/1600E (EcoStrike™) | Minimum Activation Duration: 1 second | ||||
| VOLTAGE | 10 VDC | 12 VDC | 24 VDC | 30 VDC | |
| IN RUSH CURRENT | 0.475A | 0.460A | 0.220A | 0.215A | |
| CONTINUOUS DUTY | 0.010A | 0.009A | 0.005A | 0.004A | |
| VOLTAGE | |||
|---|---|---|---|
| MINIMUM WIRE GAUGE REQUIREMENTS | 12VDC | 24VDC | |
| 200 feet or less | 18 gauge | 20 gauge | |
| 200 - 300 feet | 16 gauge | 18 gauge | |
| 300 - 400 feet | 14 gauge | 16 gauge | |
NOTE: The above table applies to Models 1500, 1500E, 1600, and 1600E.
Models 1500E and 1600E: For Indoor Use Only Models 1500 and 1600: For Outdoor Use
Ratings
Static Strength: 1,500 lbs Dynamic Impact: 70 ft-lbs Endurance: 250,000 cycles
UL294 Performance Levels
Destructive Attack: Level 1 (No attack test) Line Security: Level I (No Line Security) Endurance: Level IV (100,000 cycles)
Standby Power: Level I (No secondary power source)

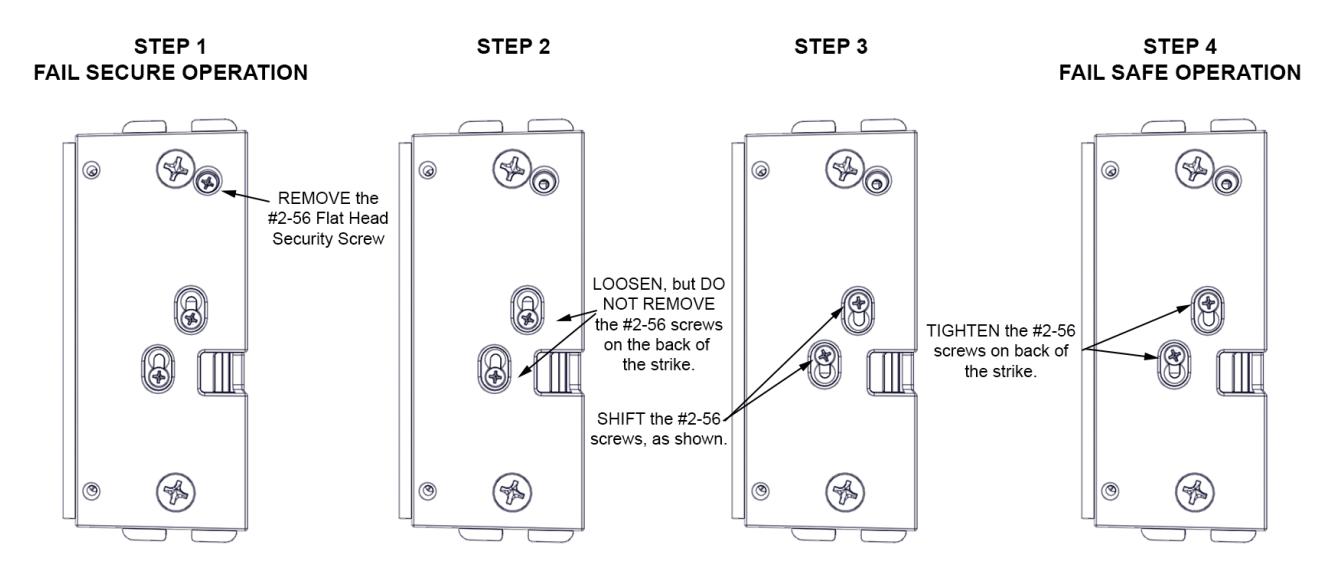

Converting the Operation Mode
IMPORTANT NOTE: Converting the electric strike to FAIL SAFE mode negates the unit's fire rating.
NOTE 1: The 1500 and 1600 Series Electric Strikes ship configured for FAIL SECURE OPERATION. The steps below are provided to convert to FAIL SAFE OPERATION, if desired. The operation mode of the 1500E and 1600E (EcoStrike ™ ) is set at the factory and cannot be changed.
NOTE 2: The suitability of the locks in the FAIL SECURE OPERATION mode is up to the local Authority Having Jurisdiction (AHJ) and emergency exit hardware may be required in such installations.

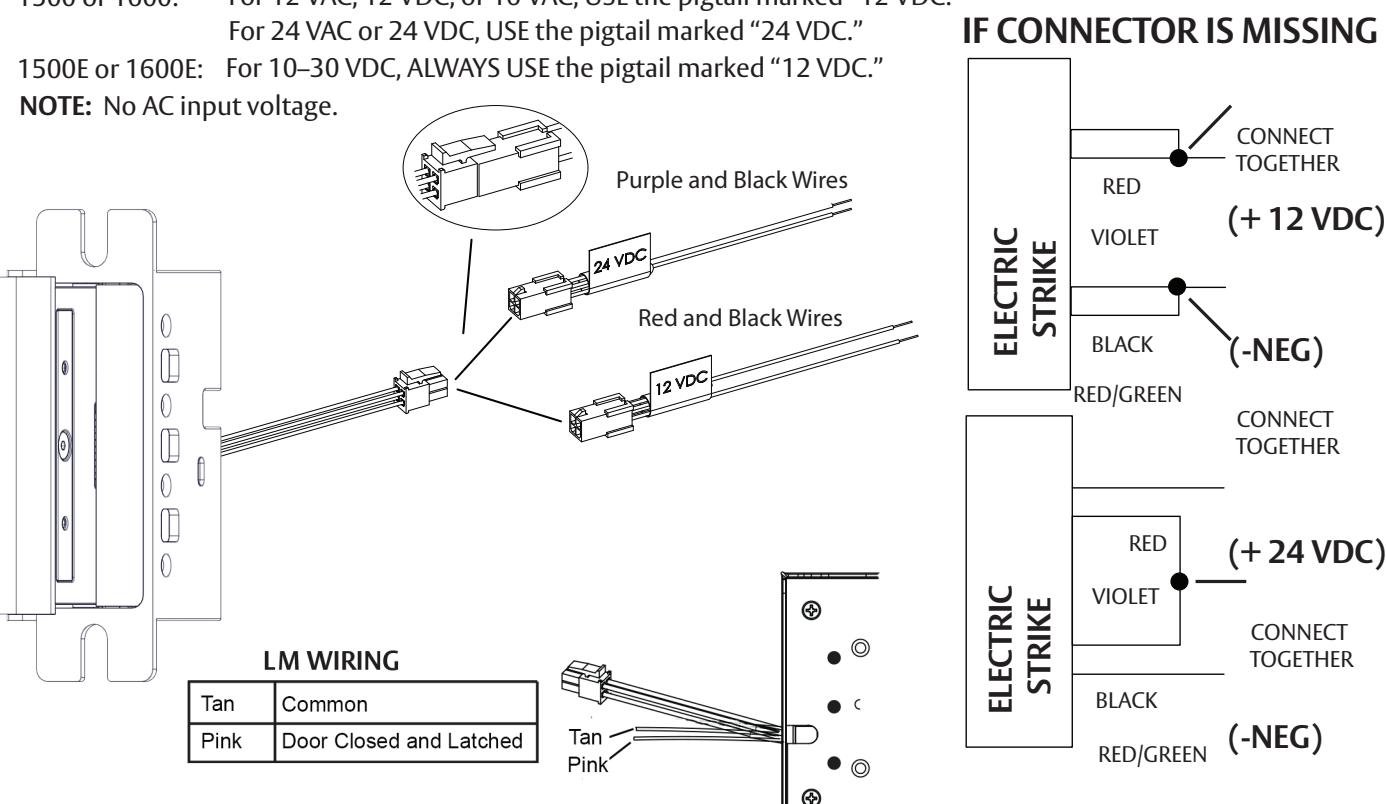

Connecting the Power
IMPORTANT NOTE: Before electrically connecting the device, the input voltage must be verified using a multimeter.
Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding 10% of the electrical specification (see Page 1) may cause severe damage to the
unit and will void the warranty.
For 12 VAC, 12 VDC, or 16 VAC, USE the pigtail marked "12 VDC." 1500 or 1600:
Preparing the Frame

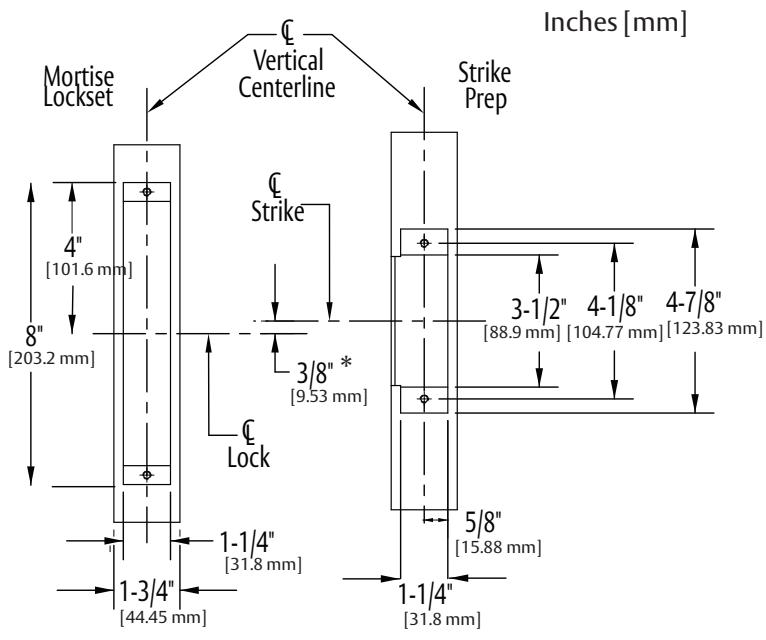

MORTISE LOCKSETS
Please note the horizontal centerline of the electric strike in relation to the centerline of the mortise lockset.
* Can be Mortise lock and option specific. See figures below if using a Schlage L9000 or Yale 8700 series.

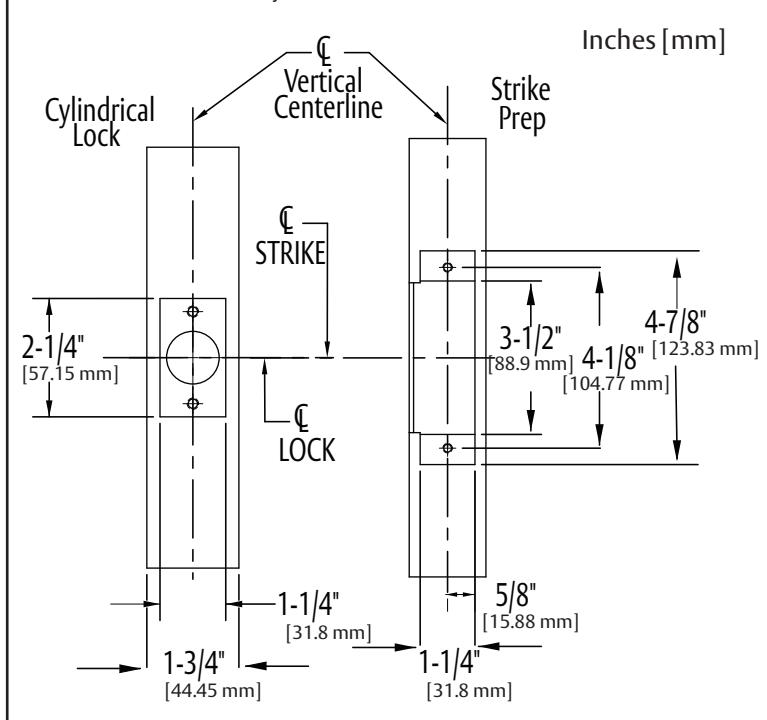

CYLINDRICAL LOCKSETS
Please note the horizontal centerline of the electric strike in relation to the centerline of the cylindrical lockset.

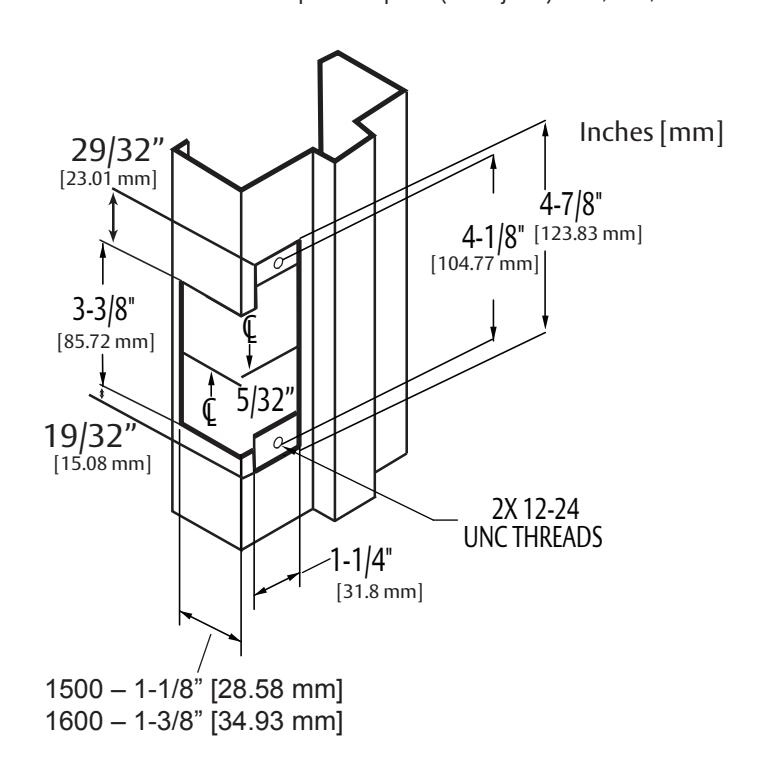

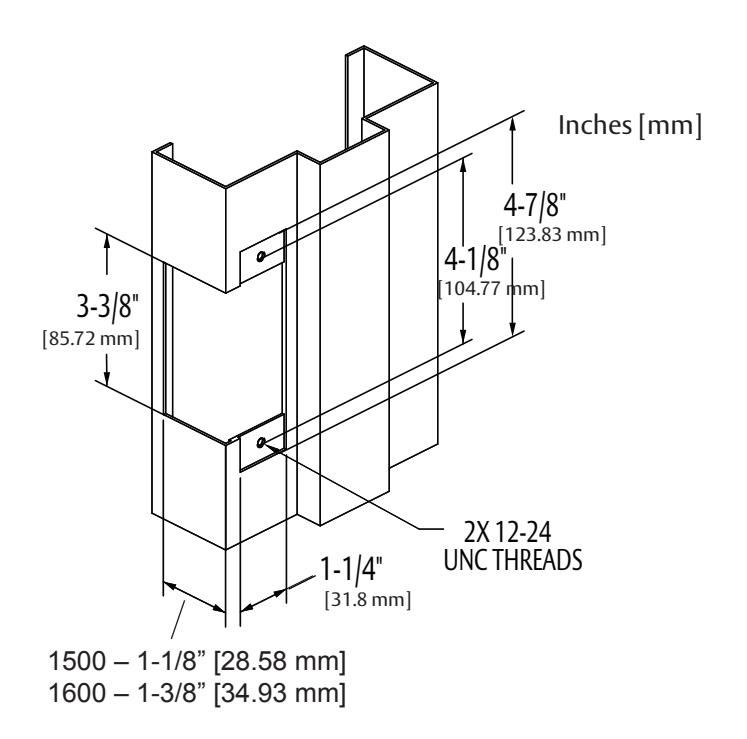

METAL JAMB DIMENSIONS FOR FACEPLATES
Normally Used With Mortise Locks Without Deadbolt
NOTE: Cannot be used with Schlage L9000 or Yale 8700 series.
Cutout dimenstions for option faceplates (metal jamb): 11, 1KM, 1NM
Normally Used With Mortise Locks With Deadbolt
NOTE: Can be used with Schlage L9000 or Yale 8700 series.
Cutout dimenstions for option faceplates (metal jamb): 1KD, 1ND, 1NTD

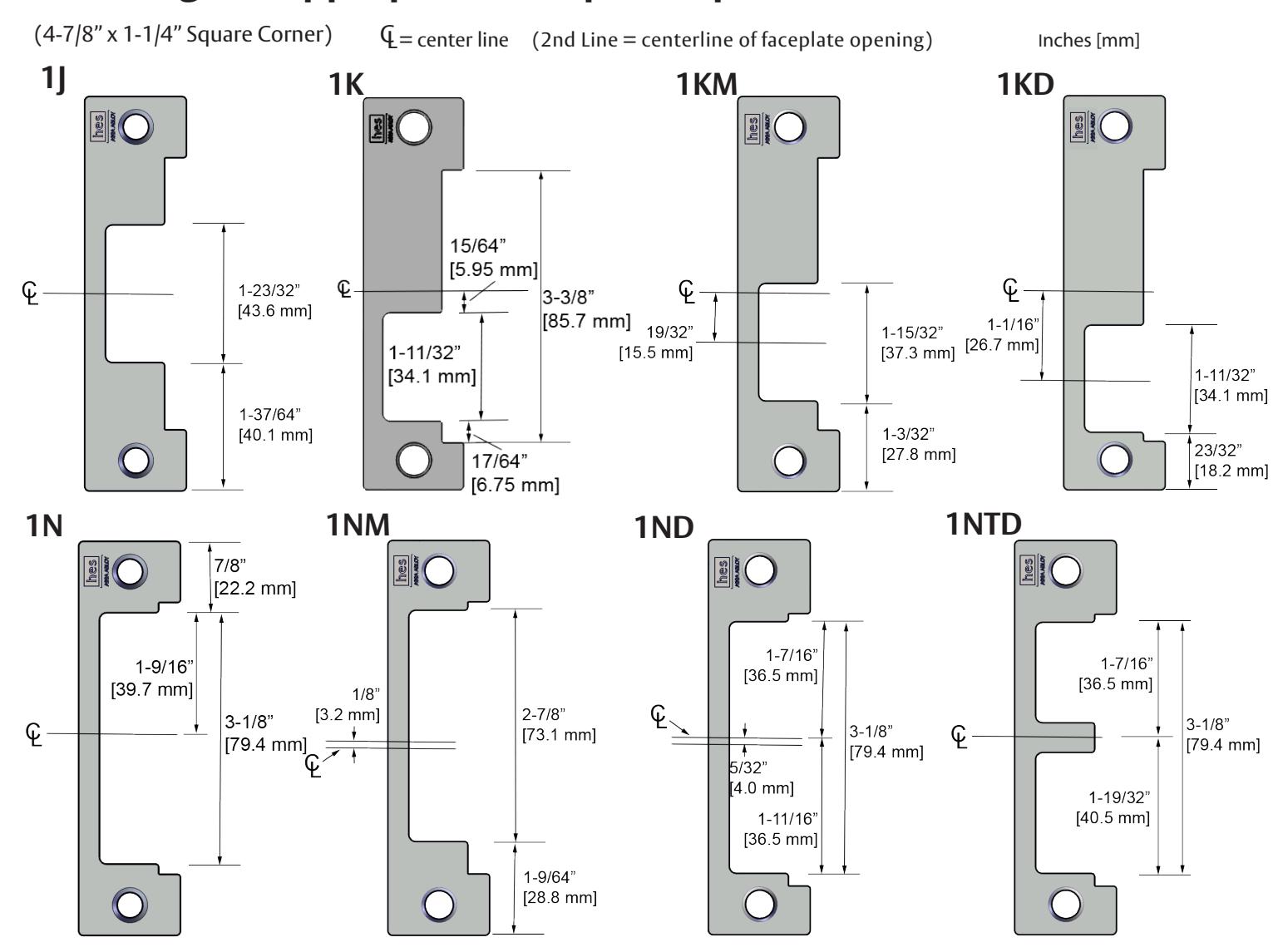

Selecting the Appropriate Faceplate Option
| OPTION | DESCRIPTION | 1500 | 1600 | ||
|---|---|---|---|---|---|
| 1J | For Use With: | Cylindrical locksets with up to ¾" throw and all locksets with center-lined bolts. | X | ||
| Compatible With: | All brands of cylindrical latchbolts | X | |||
| 1K | For Use With: | Mortise locksets with up to ¾" throw latchbolt. | X | ||
| Compatible With: | Baldwin, Marks, PDQ | X | |||
| 1KM | For Use With: | Mortise locksets with up to ¾" throw latchbolt. | |||
| Compatible With: | Accurate, Arrow, Best, Corbin Russwin, Falcon, Sargent (7800, 8200, and 9200), | X | X | ||
| Yale (8800) | |||||
| 1KD | For Use With: | Mortise locksets with up to ¾" throw latchbolt. | X | ||
| Compatible With: | Dorma (9500), Jackson, Sargent (7700 and 8100), Schlage, Yale (8700) | X | |||
| 1N | For Use With: | Mortise locksets with deadbolt for night latch function only. | |||
| Compatible With: | Accurate, Baldwin, Marks, Omnia, PDQ, Schlage | X | |||
| 1NM | For Use With: | Mortise locksets with deadbolt for night latch function only. | |||
| Compatible With: | Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H, and | X | |||
| 37H), Marks, PDQ, Sargent (7800, 8200, and 9200), Yale (8800) | |||||
| 1ND | For Use With: | Mortise locksets with deadbolt for night latch function only. | |||
| Compatible With: | Sargent (7700 and 8100), Schlage, Yale (8700) | X | |||
| 1NTD | For Use With: | Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. | |||
| Compatible With: | Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage | X | |||

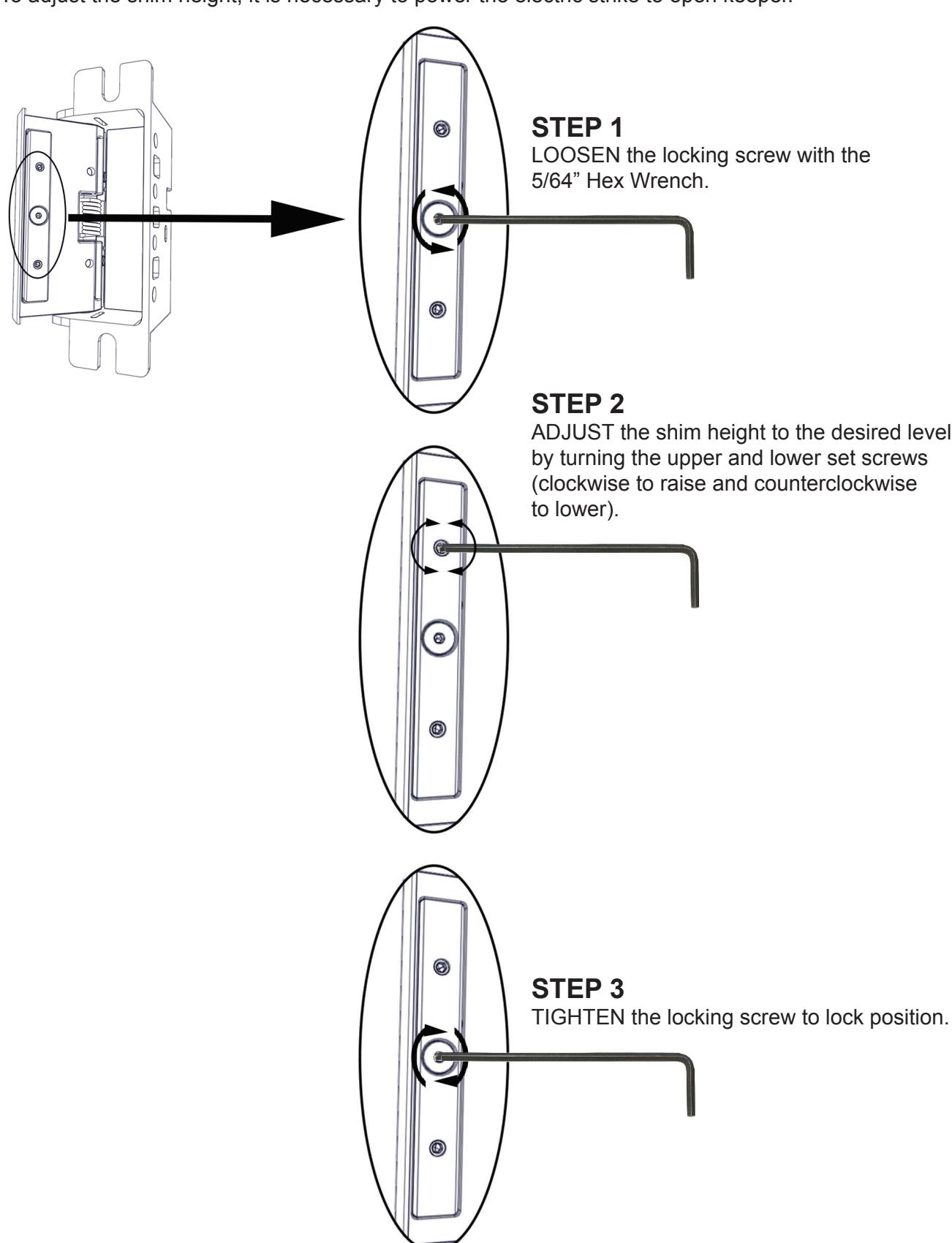

Adjusting the Shim
NOTE: To adjust the shim height, it is necessary to power the electric strike to open keeper.
