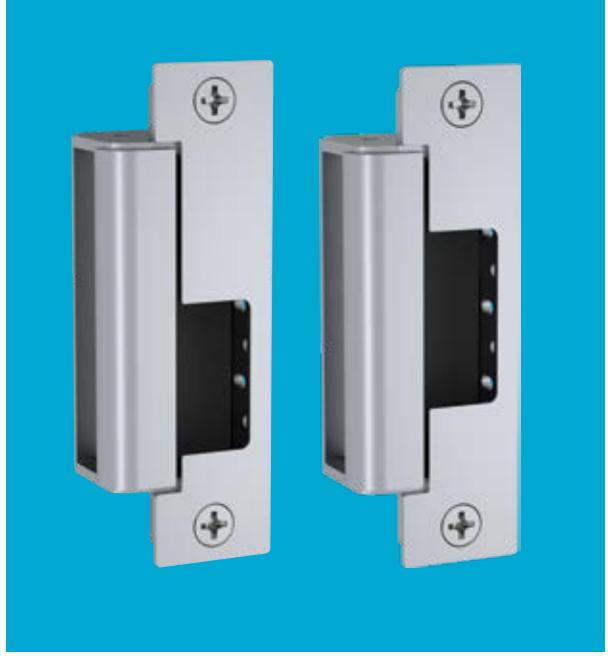

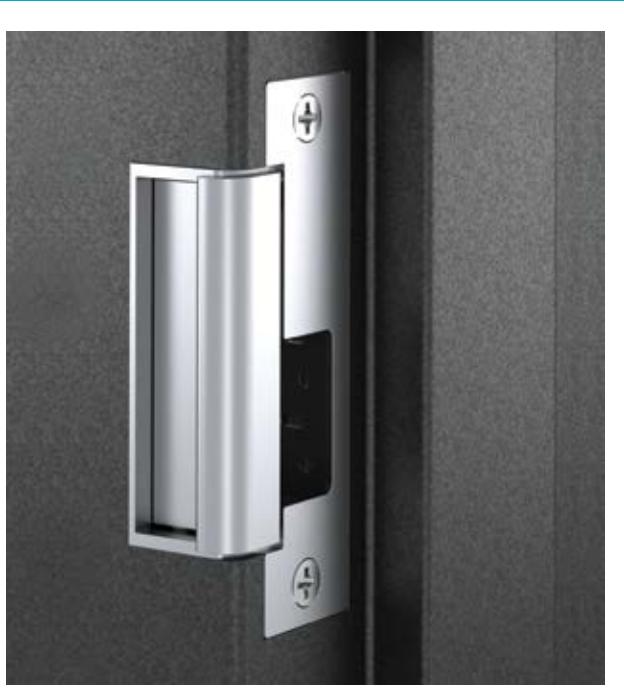

HES® 1500 & 1600 Series Electric Strikes
The most advanced, modular electric strikes that work with every brand of cylindrical or mortise locks designed to work with a 4-7/8" strike plate.
Dynamic | Flexible | Modular
HES 1500 & 1600 Series Electric Strikes
Specifications
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
-
Holding force:
- Static strength 1,500 lbs
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- California Fire Marshal listed
- ANSI/SDI A250.13 windstorm resistant
- Florida Building Code approved TAS 201, 202, 203
- ANSI-ASTM E330
- 1500 Strike body depth 1-3/8"
- 1600 Strike body depth 1-5/8"
- Sustainability documentation
Electrical (DC Continuous Duty)
- Dual voltage 12/24 VDC/VAC
- 240 mA at 12 VDC/120 mA at 24 VDC
- PoE friendly
Features
- Available in 7 finishes

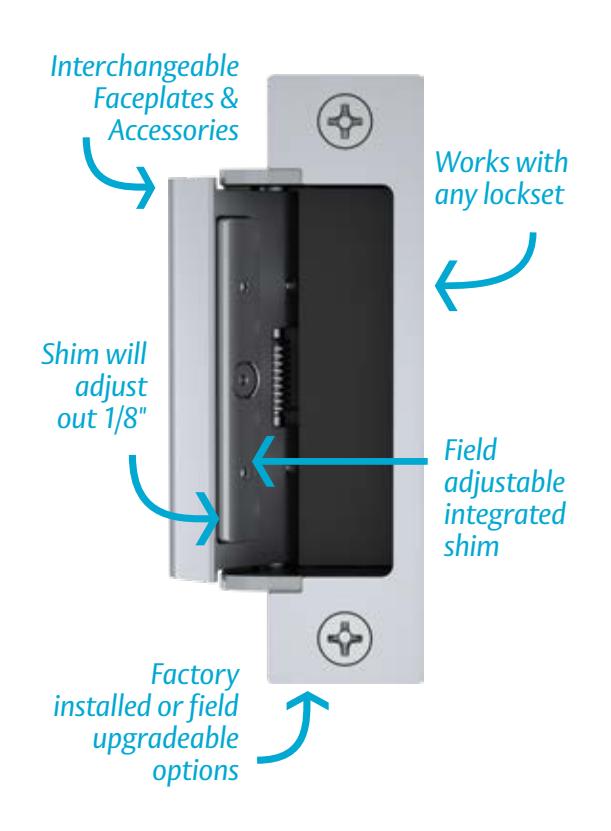

- Field adjustable integrated shim
- Interchangeable faceplates and accessories
- Fully finished faceplate, keeper, case and trim
- Trim enhancer included
- ElectroLynx™ plug-in connectors
- Non-handed
- Internally mounted solenoid
- Tamper resistant
- Stainless steel construction
- SecuriCare ten-year, no fault, no questions asked warranty
Options

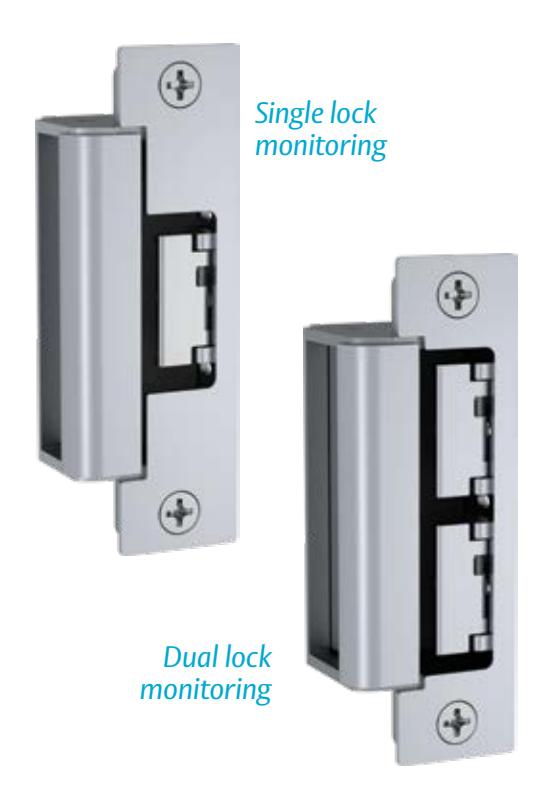

- LM Lock monitor
- DLM Dual lock monitors
- LMS * Lock monitor and strike monitor
- DLMS * Dual lock monitors and strike monitor
- OPT-1LM Single lock monitor
- OPT-1DLM Dual lock monitors
- 1500-104-XXX Lip extension trim adapter
- 1500-106-XXX 4500 adapter and trim enhancer kit (finish to match)
- 1600-104-XXX Lip extension trim adapter
- 1600-106-XXX 1006 adapter and trim enhancer kit (finish to match)
- HESCUT-MTK Metal Template Kit
*Factory installed option
Comparison Chart
|
Manufacturer
Model |
WITH DEADBOLT | WITHOUT DEADBOLT | ||||
|---|---|---|---|---|---|---|
| HES | HES | Competitor | HES | HES | Competitor | |
| HES 1600 | HES 1006 | Competitor #1 | HES 1500 | 4500 | Competitor #2 | |
| Certifications & Listings | ||||||
| UL 10C, 3 hour single door fire-rated | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| UL 10C, 1-1/2 hour doubled door fire-rated | ✓ | ✓ | ✓ | |||
| CAN4-S104 (ULC-S104) fire door conformant | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| UL 1034 burglary-resistant listed | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| UL 1034 burglary-resistant listed for outdoor use | ✓ | ✓ | ✓ | |||
| UL 294 (6th edition) listed | ✓ | ✓ | ✓ | ✓ | ||
| Environmental Product Declaration | Iteded | ✓ | ✓ | Iteded | ||
| ANSI/BHMA A156.31, Grade 1 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| NFPA-252 fire door conformant | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ASTM-E152 fire door conformant | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ANSI/SDI 250.13 windstorm resistant | ✓ | ✓ | ✓ | |||
| ANSI-ASTM E330 | ✓ | ✓ | ✓ | |||
| Florida Building Code approved TAS 201, 202, 203 | ✓ | ✓ | ✓ | |||
| California Fire Marshal listed | ||||||
| RoHS compliant | ✓ | ? | ✓ | ✓ | ? | |
| ✓ | ✓ | ✓ | ✓ | |||
|
Patented design
Standard Features |
Applied | ✓ | Applied | Applied | ✓ | Applied |
| Accommodates cylindrical and mortise latchbolts | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Accommodates all brands of mortise locks | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Accommodates 1" deadbolts | ✓ | ✓ | ✓ | |||
| Release and recapture 1" deadbolt | ✓ | |||||
| Installs in fire listed 2" frame with 1/2" drywall | ✓ | ✓ | ✓ | |||
| Strike body depth | 1-5/8" | 1-11/16" | 1-5/8" | 1-3/8" | 1-3/8" | 1-3/8" |
| Strike cavity height | 3-1/4" | 3-1/4" | 3-1/4" | 3-1/4" | 2-11/16" | 3-1/4" |
| Tamper resistant, stainless steel construction | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Static strength (lbs) | 1500 | 3070 | 1500 | 1500 | 3000 | 3250 Factory Test |
| Dynamic strength (ft-lbs) | 70 | 350 | 70 | 70 | 100 | - |
| Endurance (cycles) | 1M | 1M | 2M Factory Test | 1M | 1M | 1M |
| Full finished face plate, keeper, case and trim | ✓ | ✓ | ✓ | |||
| Field selectable fail safe/fail secure | ✓ | ✓ | ✓ | ✓ | ||
| Non-handed | ||||||
| Horizontal adjustment |
✓
Itegrated |
✓
Shims |
✓
Shims |
✓
Itegrated |
✓
Shims |
✓
Shims |
| Plug-in connector | ||||||
| Trim enhancer included | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Lip extension (sizes) | 1/2" | 1+" | 1/2" | 1/4" | ||
|
Lock monitor
Lock door position monitor |
Field Istall*
Factory Istall |
✓ | Field Istall |
Field Istall*
Factory Istall* |
✓ | ✓ |
| Strike locked monitor | ✓ | ✓ | ✓ | ✓ | ||
| Metal template kit for easy installation | ✓ | ✓ | ✓ | ✓ | ||
| Frame type | All | All | All | All | All | All |
|
Available finishes
Standard Electrical |
7 | 7 | 1 | 7 | 7 | 6 |
| Dual voltage 12 or 24 | ||||||
| ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| AC or DC | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Current at 12 volts | 0.24 A | 0.45 A | 0.38 A | 0.24 A | 0.24 A | 0.24 A |
|
Current at 24 volts
Continuous duty |
0.12 A
✓ |
0.25 A
✓ |
0.19 A
✓ |
0.12 A
✓ |
0.12 A
✓ |
0.11 A
✓ |
* Order non-standard option factory installed.

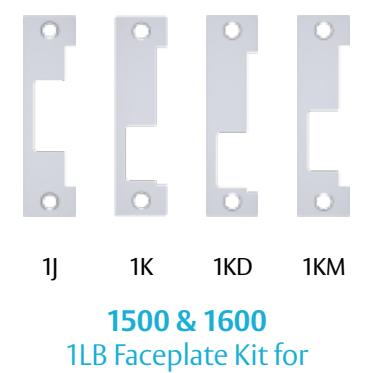

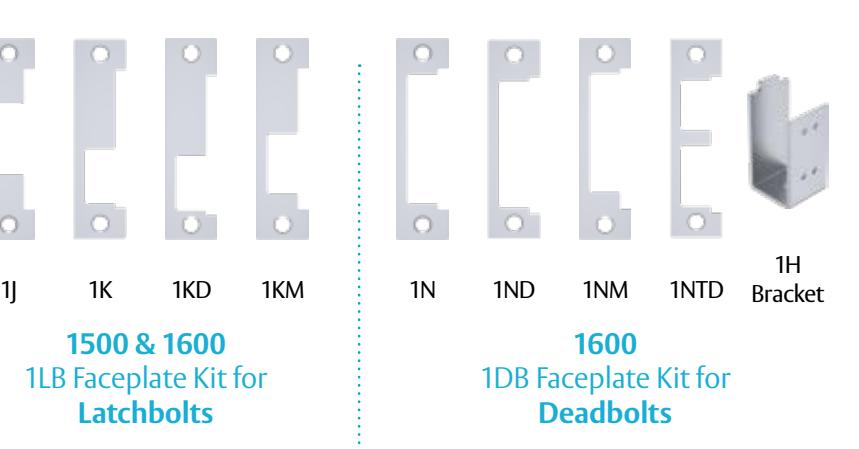

Interchangeable Faceplate Kits for Latchbolts and Deadbolts
