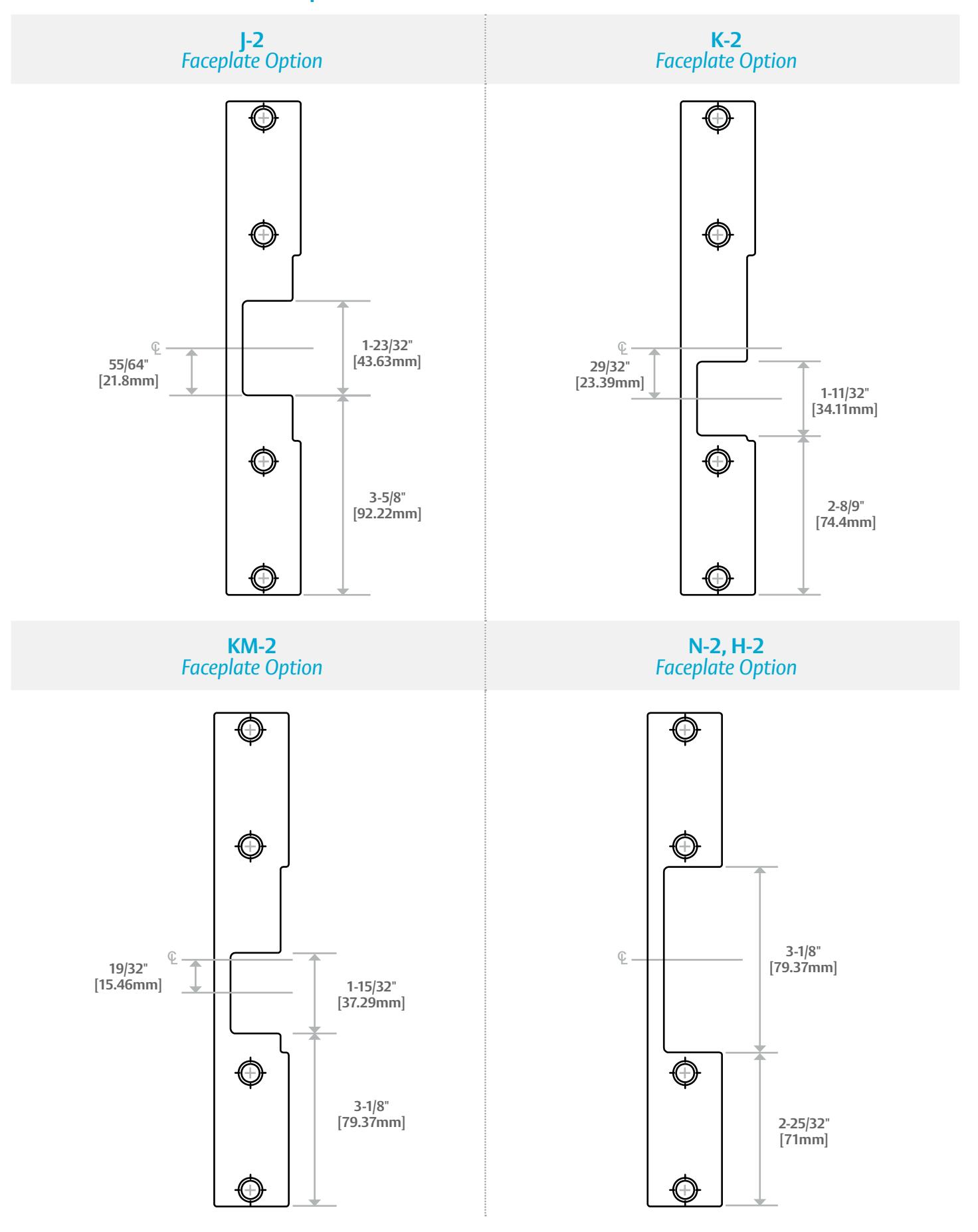

HES 1006 Series Faceplate Dimensions

13

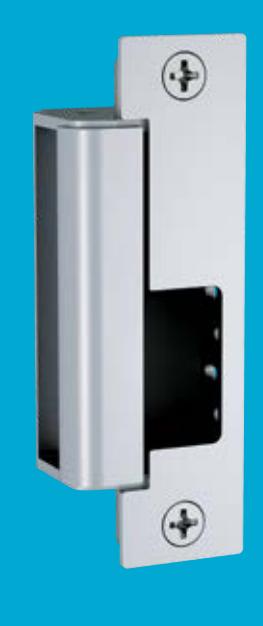

HES® 1500 Electric Strike

Works with all brands of cylindrical and mortise locksets without a deadbolt Also available in

a Complete One Box Solution

The most advanced, modular electric strike that works with every brand of cylindrical or mortise locks designed to work with a 4-7/8" strike plate.

The HES 1500 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in seven finishes.

Features

Standard Features

• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail safe/fail secure
• Non-handed
• Interchangeable faceplates and accessories
• Field replaceable components
• Fully finished faceplate, keeper, case and trim
• Field adjustable integrated shim
• Strike body depth 1-3/8" [34.9mm]
• SecuriCare ten-year, no-fault, no questions asked warranty

Optional Features

• LM Lock monitor
• DLM Dual lock monitors
• LMS Lock monitor and strike monitor
• DLMS Dual lock monitors and strike monitor

Accessories

• 157 Torx screws
• HESCUT-MTK Metal template kit
• 1500-104-xxx Lip extension trim adapter (finish to match)
• 1500-106-xxx 4500 adapter and trim enhancer kit (finish to match)
• OPT-1SRK Spring replacement kit
• OPT-1LM Single lock monitor
• OPT-1DLM Dual lock monitors
• MOD-1SOL Solenoid replacement module
