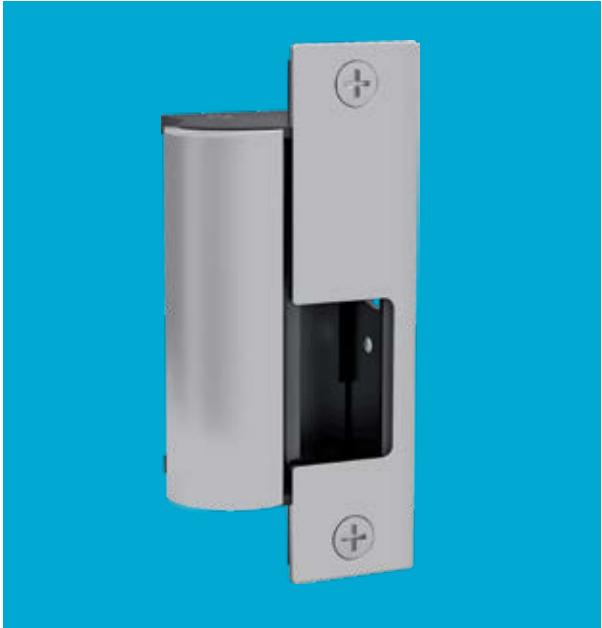

HES® 1006 Electric Strike

The strongest, most versatile electric strike available.

Unsurpassed Flexibility

• Accommodates every cylindrical and mortise locksets with or without a 1" deadbolt
• Available as a separate strike body and interchangeable faceplate or a Complete Pac
• Non-handed, dual voltage and available in fail safe or fail secure (standard)

Tested for Durability

• UL 10C, 3 hour fire-rated
• ANSI A250.13-2003 windstorm listed
• UL 1034 burglary-resistant listed and suitable for outdoor use

Robust Design

• ANSI/BHMA A156.31, Grade 1
• Endurance 1 million cycles
• Tamper resistant, stainless steel construction

Features

Standard Features

• Stainless steel construction
• Tamper-resistant
• Static strength 2,500 lbs
• Dynamic strength 350 ft-lbs (fail secure)
• Endurance 1 million cycles
• Fail secure (Standard)
• Non-handed
• Accommodates up to 1" [25.4mm] deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment

• Trim enhancer
• Strike body depth 11/16" [17.5mm]
• SecuriCare five-year, no-fault, no questions asked warranty

Optional Features

• LBM Latchbolt monitor
• LBSM Latchbolt strike monitor
• Interchangeable faceplates

(Monitor switches may not work with all faceplate options)
