Overhead Holders & Stops

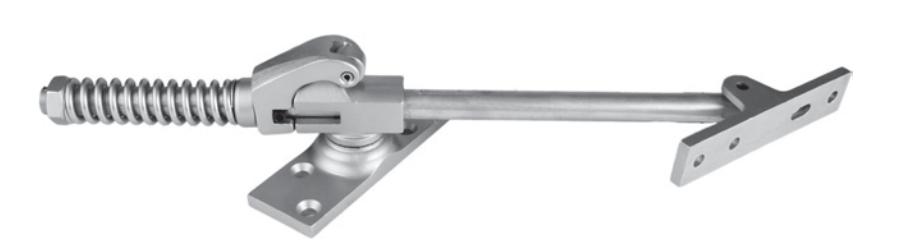

HD7000 Series Surface Mount, Extra Heavy Duty

Standard Features

• Surface mount
• Extra heavy duty used in correctional institutions and bank vault door applications
• Stop and hold-open functions available
• Single acting doors only
• Non-handed
• heavy weight doors
• Standard installation from 85° to 110° of opening (5° increments)
• Shock absorbing spring provides 3° to 5° cushion before dead-stop
• Standard fasteners supplied with sex bolts for 1-¾" to 2" thick door (see options for other door thicknesses)
• UL Listed as Miscellaneous Fire Door Accessories for use on rated up to 3 hours (stop function only)
• Average weight per unit = 10 lbs.

Door Frame Opening		Model Number
Hinges or Offset Pivots	Center Hung	Hold Open	Stop
24" - 29-	26" - 31-	HD7010	HD7020
30" - 35-	32" - 38-	HD7011	HD7021
36" - 39-	39" - 42-	HD7012	HD7022
40" - 47-	43" - 50-	HD7013	HD7023
48" - 54"	51" - 60"	HD7014	HD7024
ANSI Code		C08511	C08541

Options Available

(see page B-5 for details)

• • THICK – Fasteners for doors other than 1-¾" to 2" thick - Specify door thickness
• • SEC Security fasteners
• • LL For lead-lined door applications
• • N All stainless steel (non-ferrous) components for wet environments to prevent corrosion
• • SPECIAL Contact ABH if the dimensions, hardware or is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required.
• If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to

Material

• Plated cold rolled steel is the base material for all painted

Specify When Ordering

• Model Number
• Finish
• Option(s), if applicable
