H1, H2-8700 HARMONY SERIES SURFACE VERTICAL ROD EXIT DEVICE TRIM

CONCEALED DOOR PÓSITION SWITCH MODEL 3287 IS INCLUDED WITH THIS

(AVAILABLE ON ORDER).

BE SPECIFIED BY OTHERS.

& PULL TRIMS

L.H.

L.H.R.B.

SHEET 1 OF 2

Sargent Manufacturing Company

100 Sargent Drive New Haven, CT 06511

H2-56-

BACKSET DEFINITION

G OF

HARMONY SERIES, H1/H2 & H1/H2-56- FEB 8 2013

DOOR MANUFACTURERS TEMPLATE:

BACKSET -

VERTICAL Q

TOP OF DOOR-

SARGENT

ASSA ABLOY

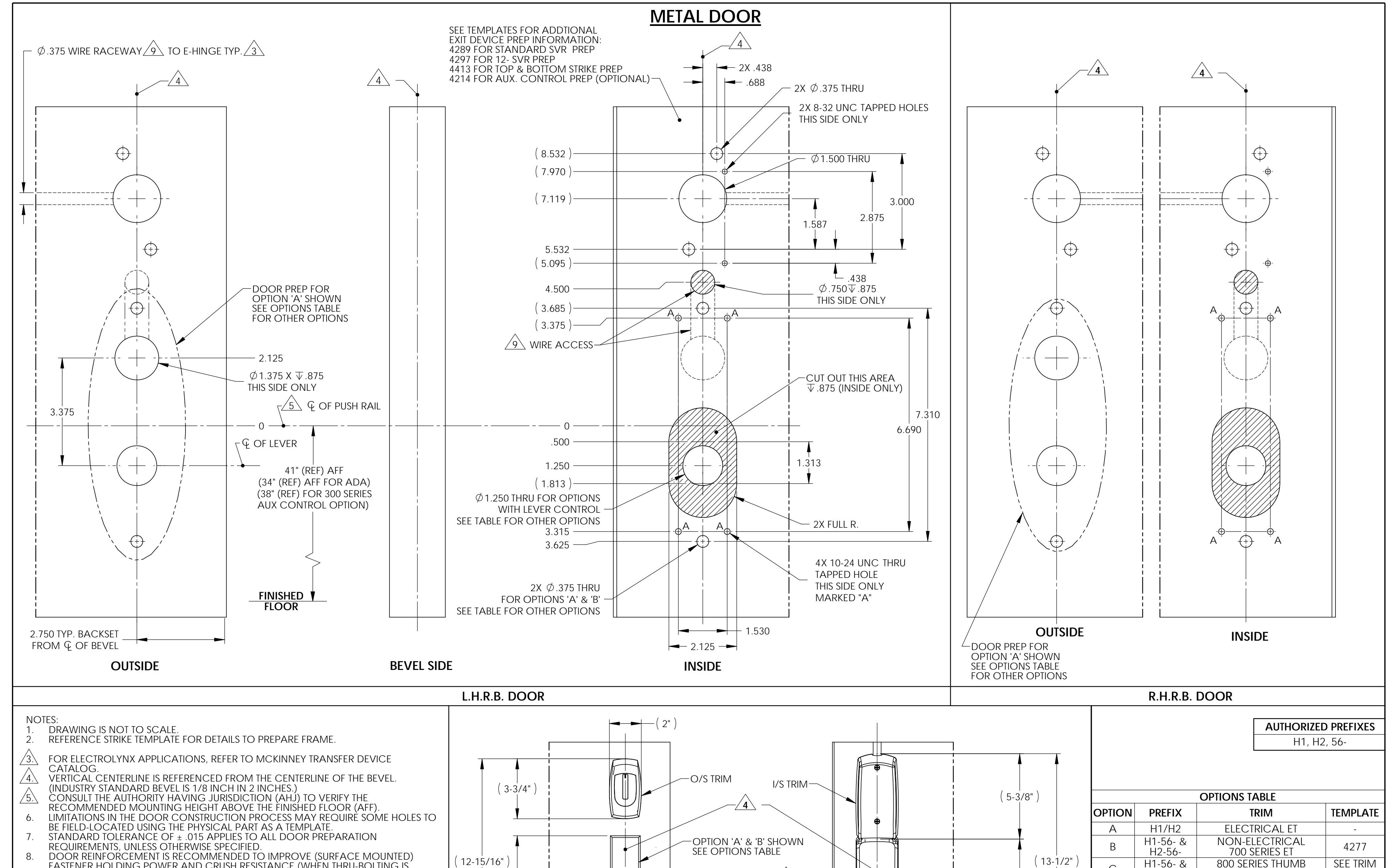

METAL DOOR

8700 SVR DEVICE

TEMPLATE

DOOR HANDING

OUTSIDE

INSIDE

INSIDE R.H.

OUTSIDE R.H.R.B

RELEASE DATE

EMPLATE NO.

4619 E

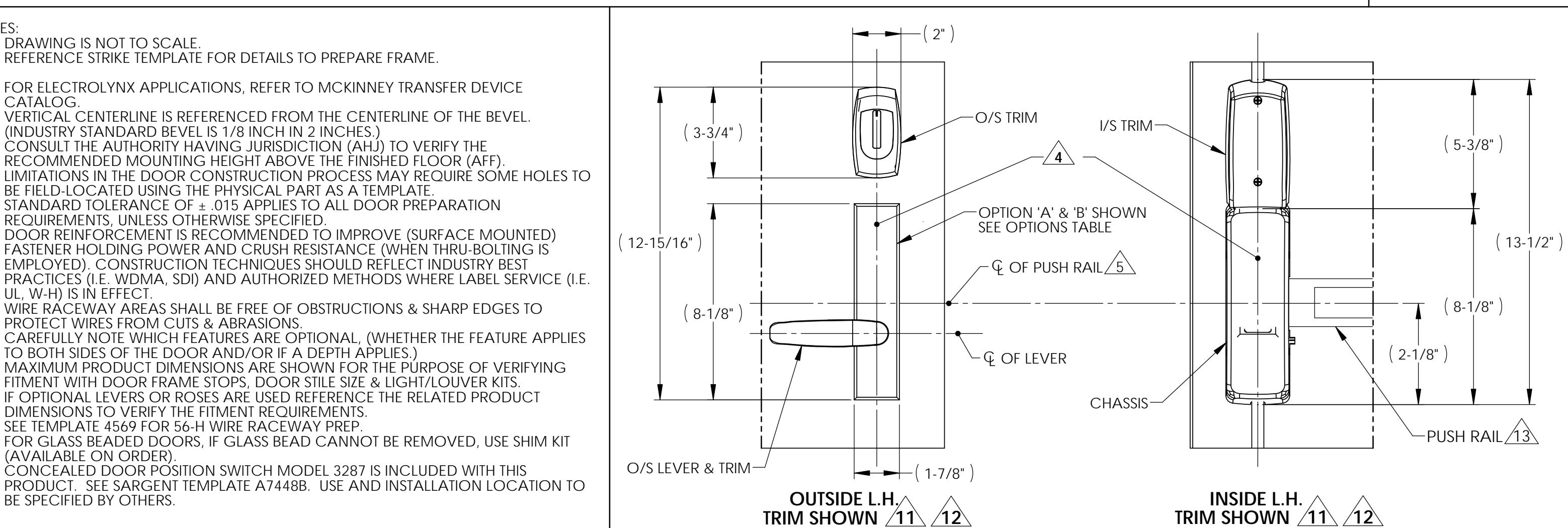

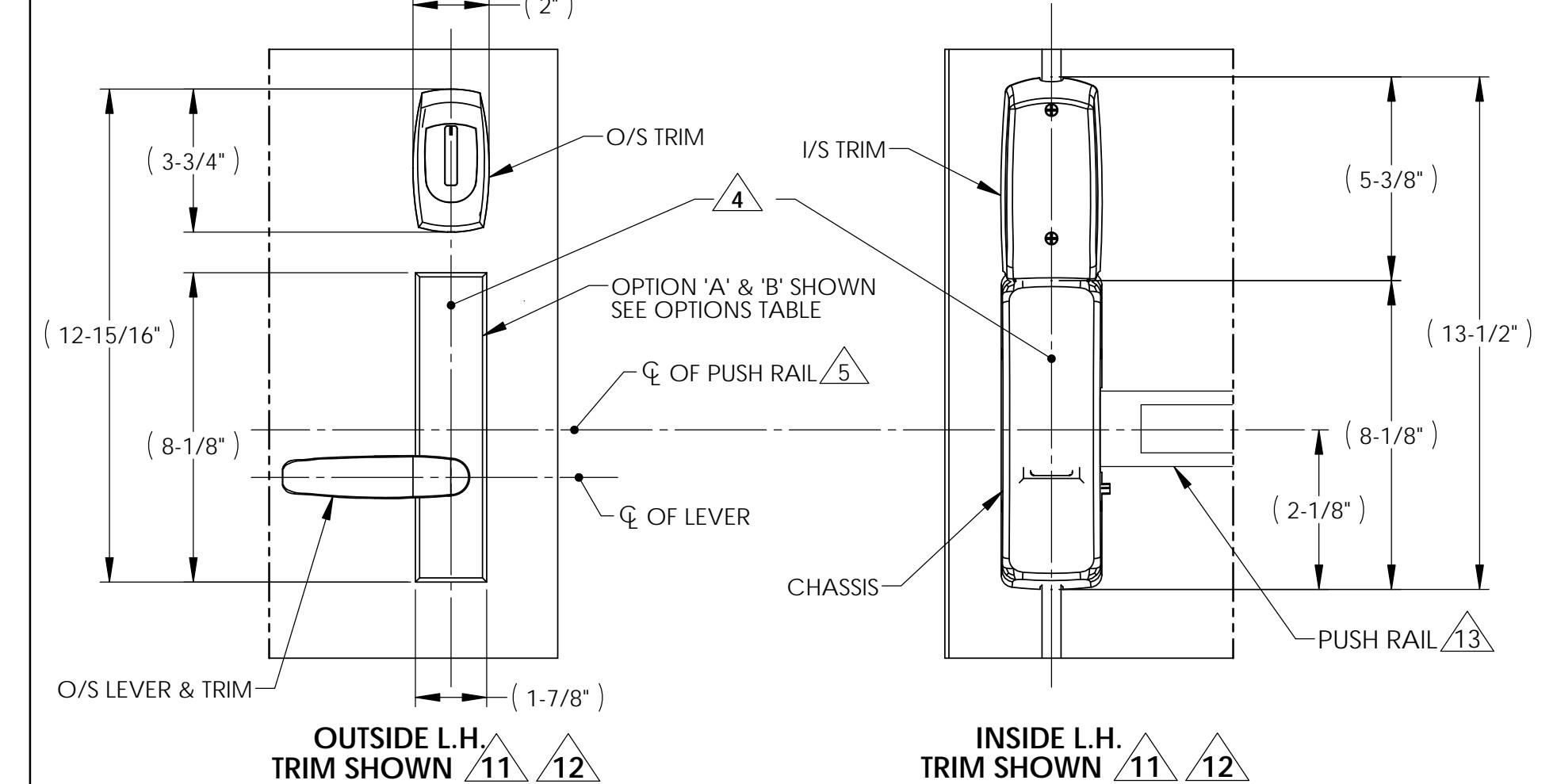

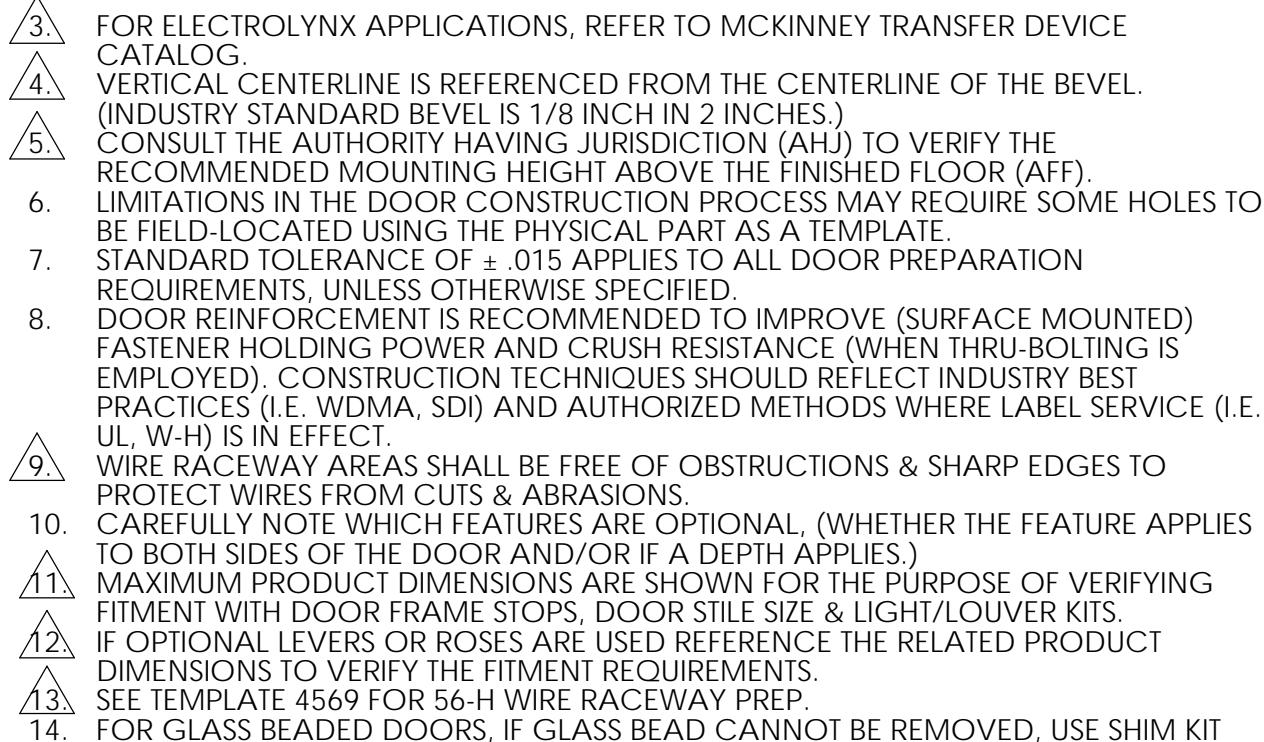

EMPLOYED). CONSTRUCTION TECHNIQUES SHOULD REFLECT INDUSTRY BEST PRACTICES (I.E. WDMA, SDI) AND AUTHORIZED METHODS WHERE LABEL SERVICE (I.E. UL, W-H) IS IN EFFECT. WIRE RACEWAY AREAS SHALL BE FREE OF OBSTRUCTIONS & SHARP EDGES TO PROTECT WIRES FROM CUTS & ABRASIONS. CAREFULLY NOTE WHICH FEATURES ARE OPTIONAL, (WHETHER THE FEATURE APPLIES TO BOTH SIDES OF THE DOOR AND/OR IF A DEPTH APPLIES.) MAXIMUM PRODUCT DIMENSIONS ARE SHOWN FOR THE PURPOSE OF VERIFYING FITMENT WITH DOOR FRAME STOPS, DOOR STILE SIZE & LIGHT/LOUVER KITS. IF OPTIONAL LEVERS OR ROSES ARE USED REFERENCE THE RELATED PRODUCT DIMENSIONS TO VERIFY THE FITMENT REQUIREMENTS. SEE TEMPLATE 4569 FOR 56-H WIRE RACEWAY PREP. FOR GLASS BEADED DOORS, IF GLASS BEAD CANNOT BE REMOVED, USE SHIM KIT (AVAILABLE ON ORDER). CONCEALED DOOR POSITION SWITCH MODEL 3287 IS INCLUDED WITH THIS PRODUCT. SEE SARGENT TEMPLATE A7448B. USE AND INSTALLATION LOCATION TO

BE SPECIFIED BY OTHERS.

OPTIONS TABLE
OPTION	PREFIX	TRIM	TEMPLATE
Α	H1/H2	ELECTRICAL ET	-
В	H1-56- & H2-56-	NON-ELECTRICAL 700 SERIES ET	4277
С	H1-56- & H2-56-	800 SERIES THUMB & PULL TRIMS	SEE TRIM TEMPLATE
RΛ	CKCET DECINITI	ON DOOD H	VNDING

BACKSET DEFINITION	DOOR HANDING
BACKSET —	L.H. INSIDE R.H.
\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \	OUTSIDE
	INSIDE
TOP OF DOOR $^\{\backslash perp\}$
VERTICAL G A REVELA	L.H.R.B. OUTCIDE R.H.R.B
A FIVING A REAFT	OUISIDE """"

SARGENT ASSA ABLOY

Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511

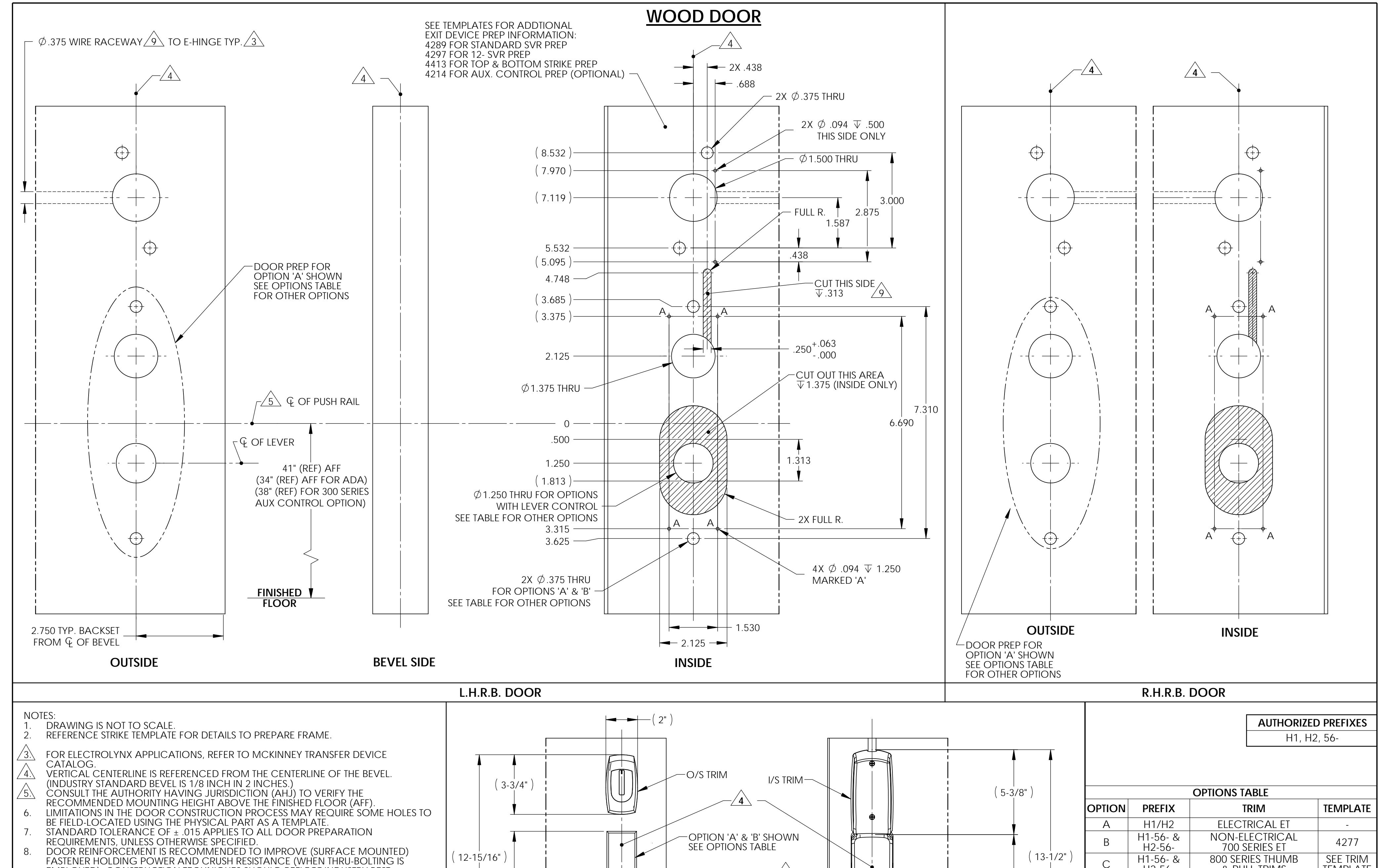

DOOR MANUFACTURERS TEMPLATE: HARMONY SERIES, H1/H2 & H1/H2-56- FEB 8 2013 WOOD DOOR 8700 SVR DEVICE SHEET 2 OF 2

RELEASE DATE EMPLATE NO.

4619 E
