H SERIES HIP PADDLE Template

"H" SERIES PUSH/PULL WITH HIP PADDLE

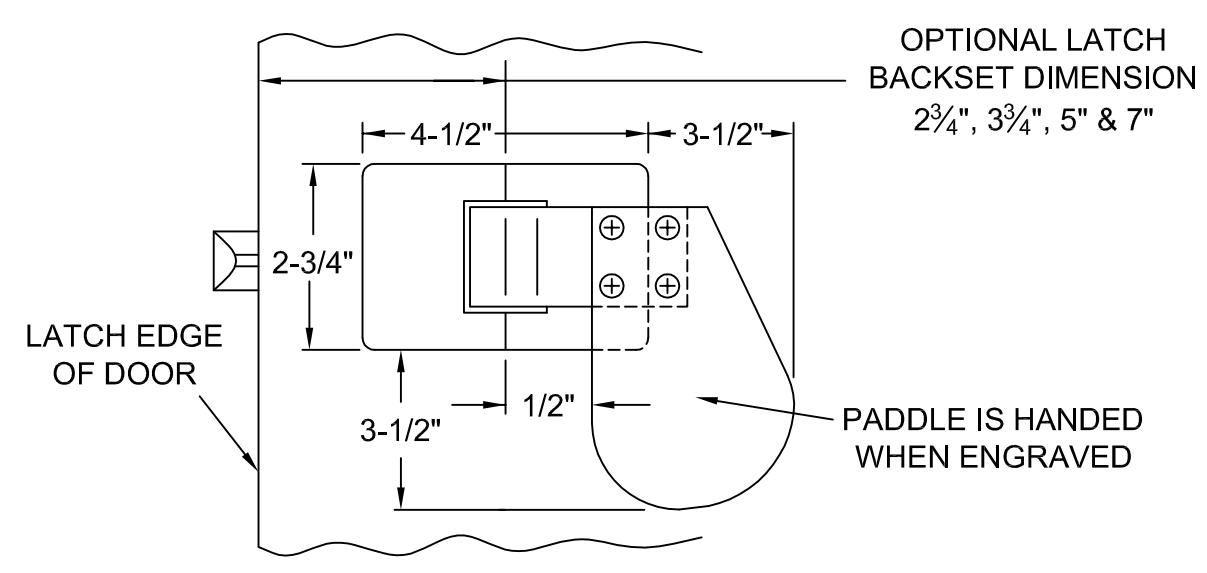

HORZONTAL MOUNTING - 6000, 6600, 6700

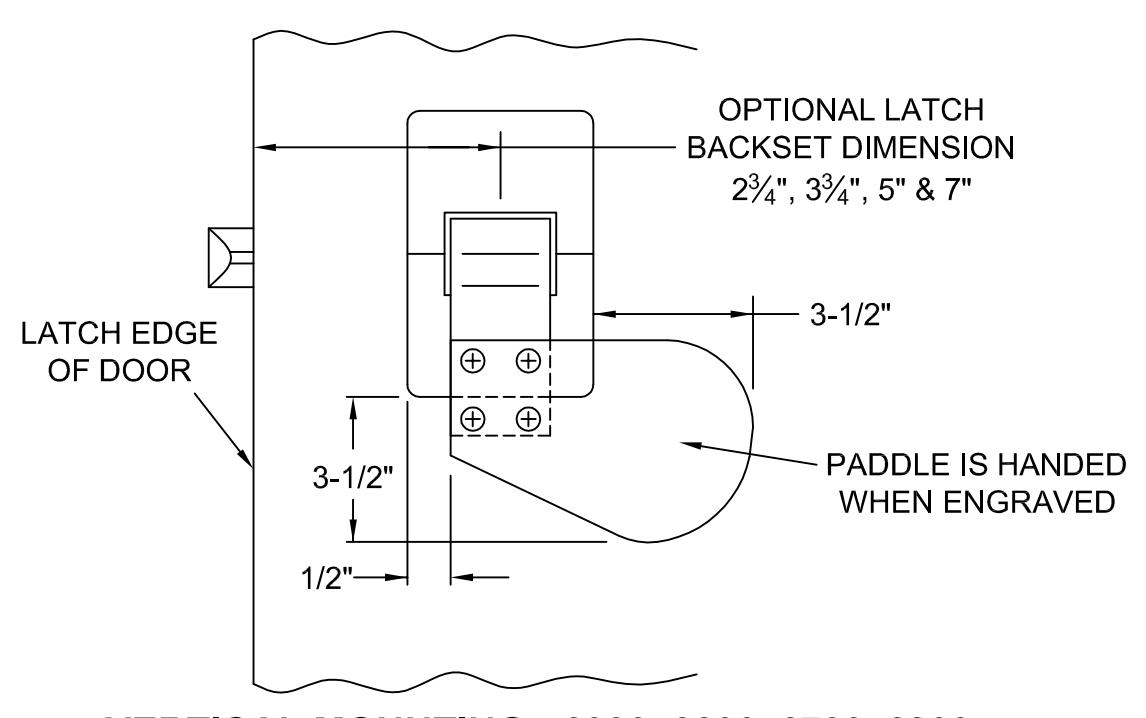

VERTICAL MOUNTING - 6000, 6600, 6700, 6800

NOTE:

STANDARD 6000, 6600, 6700 & 6800 INSTALLATION USED. AFTER MOUNTING HANDLE ASSEMBLIES AND COVERS, ATTACH HIP PADDLE TO PUSH SIDE HANDLE WITH (4) SCREWS. PADDLE IS NON-HANDED UNLESS ENGRAVED.

DIMENSIONS ARE APPROXIMATE

PATENT No. 6,196,599 & 5,730,478

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

"H" SERIES HIP PADDLE PAGE 1 OF 1 ISSUED 09-03-13
