Glynn-Johnson_PL7_PL8_Privacy_Latch_Installation_Instructions_107564

PL7/PL8

829696-00

Privacy Latch Installation Instructions

N. Lead Latch Cover (Optional)

1 Install Privacy Latch

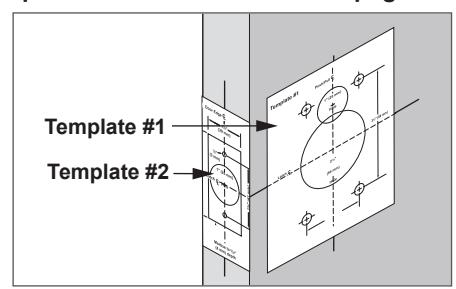

• 1a Use the templates from the back page to check the holes.
• NOTE: If the door holes do not match the template, see the Door Preparation section on the back page.

1b For the lead lined model ONLY, install the lead lining.

1c Install the latch.

1d Position the cams, as shown.

• 1e Install the push lever and pull lever.
• (i) NOTE: The T turn side must be unlocked!

1f Place the covers over the levers. Install and tighten the cover screws.

• PL7 has Thumbturn on Push Side PL8 has Thumbturn on Pull Side
• 1g Install the strike.
• NOTE: If the frame is not prepared, see the Frame Preparation section below.

2 Frame Preparation

2a Use the strike as a pattern to mark the frame.

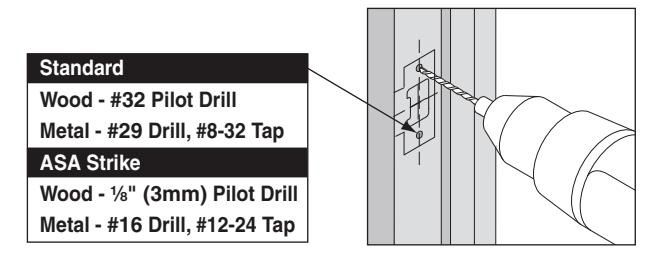

2b Drill holes.

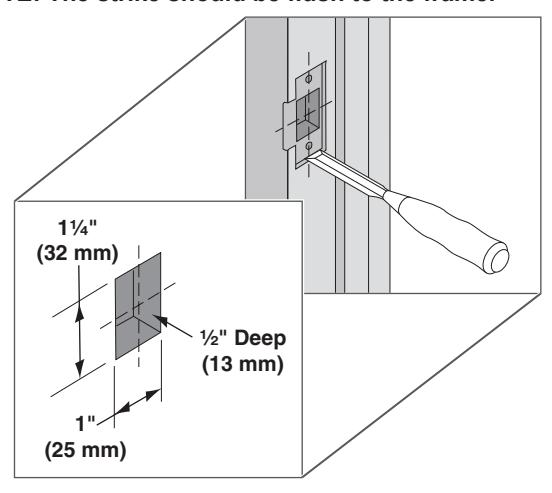

2c Mortise for strike.

(i) NOTE: The strike should be flush to the frame.

3 Door Preparation

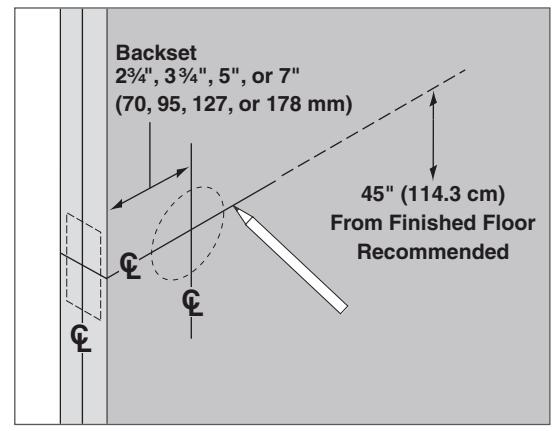

3a Mark the center lines ( $\backslash mathbf\{Q\}$ ).

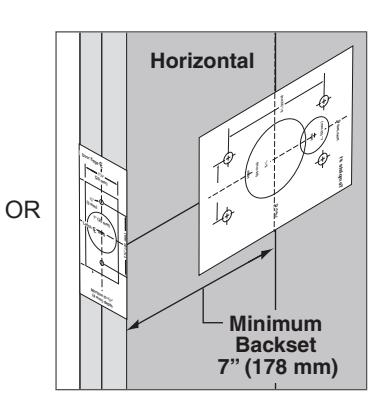

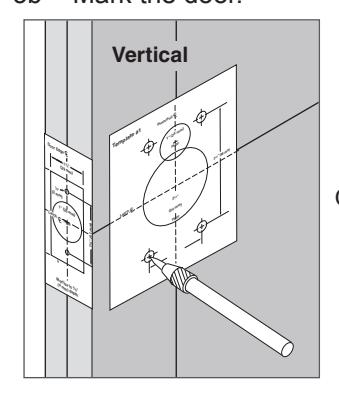

3b Mark the door.

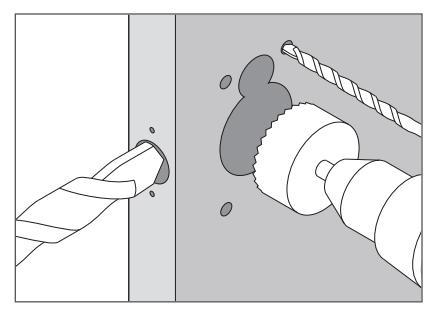

3c Drill holes.

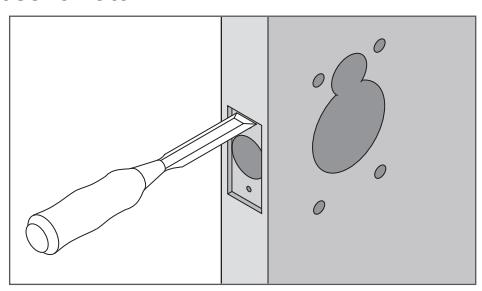

3d Mortise for latch.

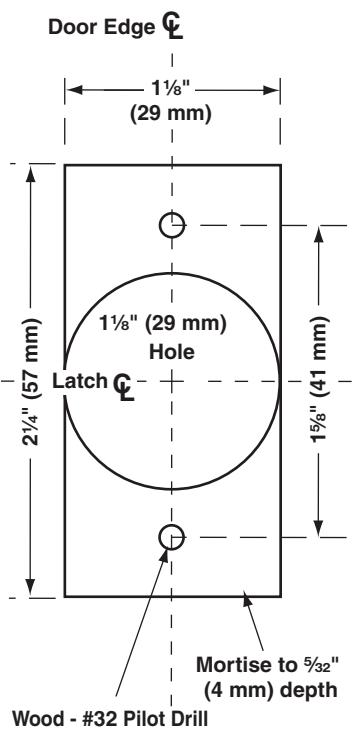

Template #2 (standard latch)

Metal - #29 Drill, #8-32 Tap

FRONT FRONT FRONT 11.000 111.000

Additional Notes:
1. None
