INST.81J

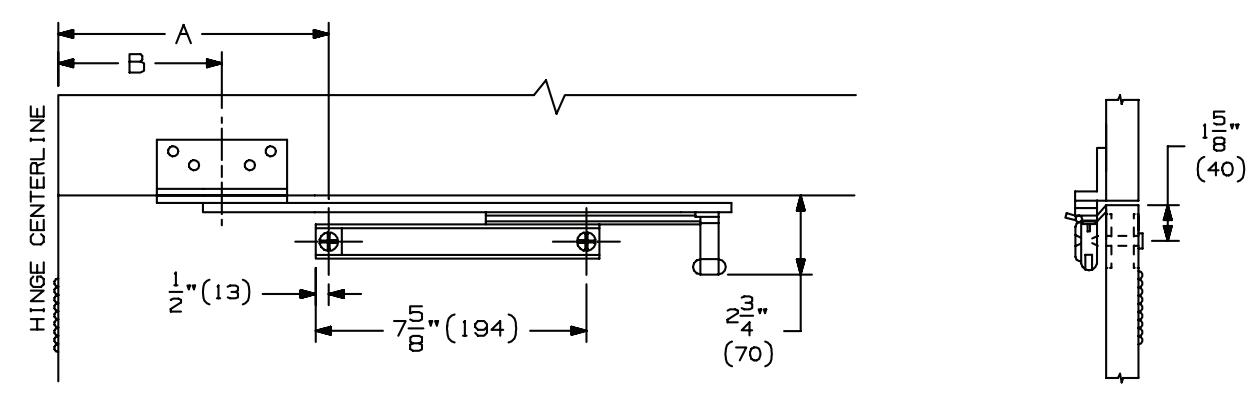

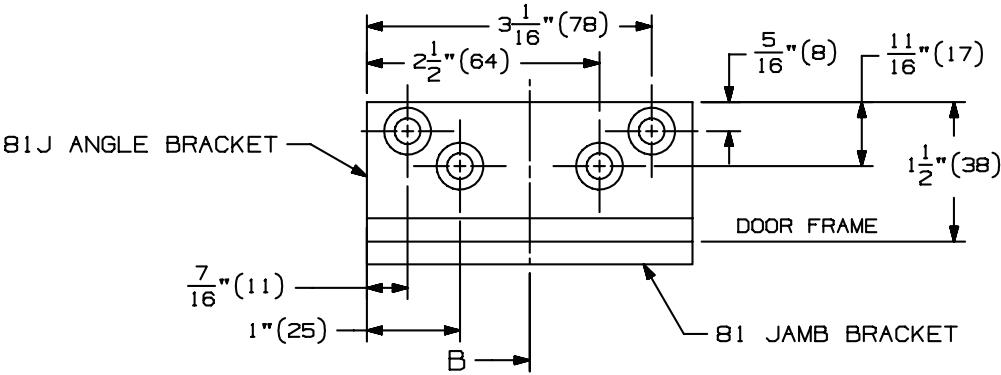

Surface Overhead Holder Angle Bracket (Push Side)
Installation Instructions
| QTY | WOOD | METAL | |
|---|---|---|---|
| ANGLE | 4 | 1/4"-20 X 1/2"FPHMS | 1/4"-20 X 1/2" FPHMS |
| JAMB | 4 | #14 X 1 1/2" FPHSMS | 1/4"-20 X 3/4" FPHMS |
| DOOR | 2 | 1/4"-20 X 1 1/4" OPHMS | 1/4"-20 X 1 1/4"OPHMS |
| DOOR | 2 | 1/4"-20 X 2 1/2" SEX BOLT | 1/4"-20 X 2 1/2"SEX BOLT |
