INST.79

Surface Overhead Holder Installation Instructions

OVERHEAD HOLDERS OR STOPS MUST BE INSTALLED BEFORE CLOSERS

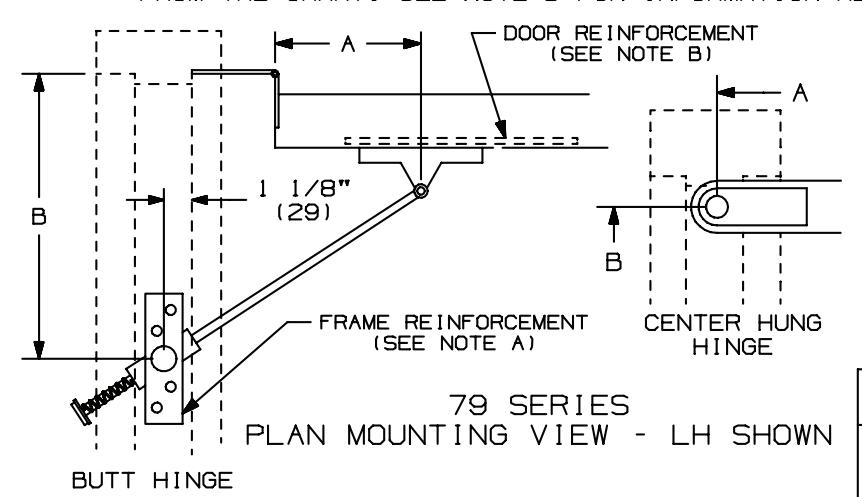

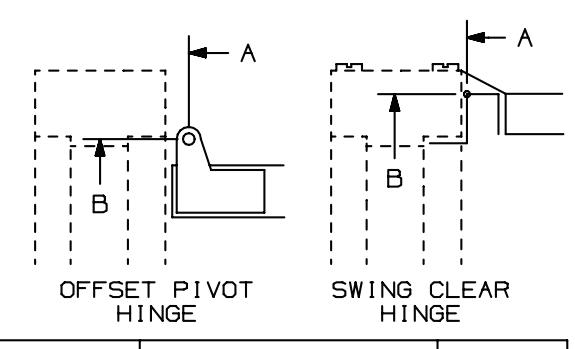

  • 1. A. DETERMINE THE MOUNTING BEING USED FROM ILLUSTRATION BELOW.
    • B. SELECT MOUNTING GROUP NUMBER FROM CHART BELOW. MOST CONTINUOUS HINGES ARE GROUPED WITH 4 1/2" WIDE BUTT OR 4 1/2" SWING CLEAR HINGE.
    • C. USING THE MOUNTING GROUP NUMBER AND THE OVERHEAD HOLDER OR STOP SIZE AND THE DEGREE OF OPENING DESIRED, FIND "A" AND "B" DIMENSIONS FROM CHART ON PAGE 3. FOR DEAD STOP ADD 7/8"(22) TO THE "A" AND "B" DIMENSIONS FROM THE CHART. SEE NOTE D FOR INFORMATION ABOUT DEAD STOP.

DOOR
THICKNESS 		HINGE TYPE & STYLE MOUNT I NG
GROUP
4" WIDE BUTT 1
4 1/2" WIDE BUTT 1
1 3/4" 5" WIDE BUTT 1
(44mm) 3/4" OFFSET PIVOT 1
4 1/2" SWINGCLEAR 1
5" SWINGCLEAR 1
CENTERHUNG PIVOT 2
4 1/2" WIDE BUTT 1
5" WIDE BUTT 1
2" 3/4" OFFSET PIVOT 1
(51mm) 4 1/2" SWINGCLEAR 1
5" SWINGCLEAR i
SOSS 220 1
CENTERHUNG PIVOT 2
4 1/2" WIDE BUTT 1
2 1/4" 5" WIDE BUTT 1
(57mm) S0SS 220 1
CENTERHUNG PIVOT 2

NOTES:

  • A. HOLLOW METAL FRAMES SHOULD BE PROPERLY REINFORCED WITH A 3/16"(5) MINIMUM THICKNESS BY 12"(305) MINIMUM LENGTH PLATE.
  • B. HOLLOW METAL DOORS SHOULD BE PROPERLY REINFORCED WITH A 3/16"(5) MINIMUM THICKNESS BY 2 1/2"(64) MINIMUM WIDTH PLATE.
  • C. STOP ONLY UNITS ARE PERMITTED ON MANY FIRE DOOR APPLICATIONS. HOWEVER, MECHANICAL HOLD-OPEN DEVICES THAT REQUIRE MANUAL RELEASE ARE NOT PERMITTED FOR USE ON ANY FIRE DOOR AS OUTLINED ON NFPABO (R) OR NFPA101 (R).
  • D. DEAD STOP (DS) TEMPLATING MAY BE USED ON HOLD OPEN AND STOP ONLY MODELS. THE DS POSITION IS REACHED WHEN THE SHOCK SPRING IS FULLY COMPRESSED. WHEN DS TEMPLATING IS USED, THE INITIAL DEGREE OF STOP WILL BE 5°-7° LESS THAN THE DS OPENING. FOR USE ON DOORS OPENING BACK-TO-BACK, AGAINST A WALL OR OBSTRUCTION.

HOLD-OPEN TENSION ADJUSTMENT USING A 3/4" WRENCH, TURN NUT AT THE END OF BAR. TO INCREASE THE HOLD-OPEN TENSION, TURN NUT CLOCKWISE. TO DECREASE THE HOLD-OPEN TENSION, TURN NUT COUNTER-CLOCKWISE.

NOTE: DIMENSIONS IN ( ) ARE MILLIMETERS.

SCREW DETAILS
QTY WOOD METAL
JAMB 4 #18 × 2" FPHSMS 5/16"-18 × 1 1/2" FPHMS
2 5/16"-18 × 2 1/2" PPHMS 5/16"-18 × 2 1/2" PPHMS
DOOR
STD 		2 5/16"-18 HEX CAP NUTS 5/16"-18 HEX CAP NUTS
1 FLAT WASHER FLAT WASHER
Э SPLIT LOCK WASHER SPLIT LOCK WASHER
DOOR 2 Ø 1/2" x 1 9/16" SEX BOLTS Ø 1/2" × 1 9/16" SEX BOLTS
SEX
BOLT 		2 5/16"-18 × 1 1/2" FPHMS 5/16"-18 × 1 1/2" FPHMS

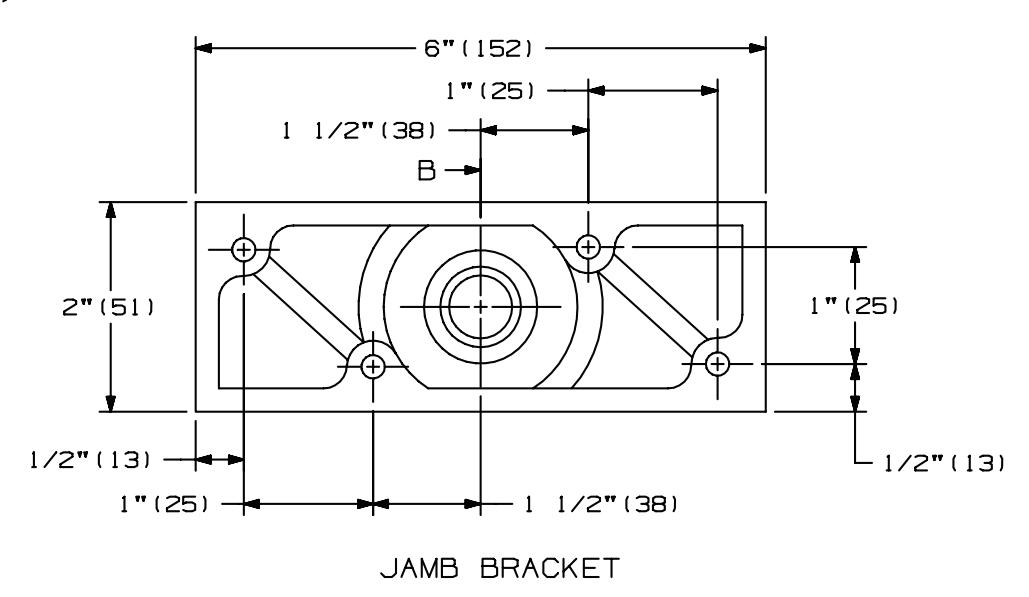

  • 2. A. LOCATE "B" DIMENSION ON THE STOP. NOTE THAT THE "B" DIMENSION IS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
    • B. FOR METAL FRAMES, USE A F DRILL AND A 5/16"-18 TAP IN 4 PLACES, FOR WOOD FRAMES, DRILL A 1/4" PILOT HOLE IN 4 PLACES.

  • 3. A. LOCATE "A" DIMENSION ON THE DOOR. NOTE THAT THE "A" DIMENSIONIS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
    • B. CHOOSE THE TYPE OF FASTENERS BEING USED TO MOUNT THE DOOR BRACKET TO THE DOOR. MOUNTING HOLES SHOULD BE PREPARED IN THE FIELD.
      • 1. USING SCREWS, FLAT WASHERS, SPLIT WASHERS, AND HEX CAP NUTS WHICH ARE PROVIDED, DRILL 1 3/4"(44) DOWN FROM STOP 11/32"(13) DIAMETER THROUGH DOOR IN 4 PLACES.
      • 2. OPTIONAL, USING SEX BOLTS, DRILL 1 3/4"(44) DOWN FROM STOP 1/2"(13) DIAMETER THROUGH DOOR IN 4 PLACES. NOT PROVIDED STANDARD, BUT AVAILABLE ON REQUEST.

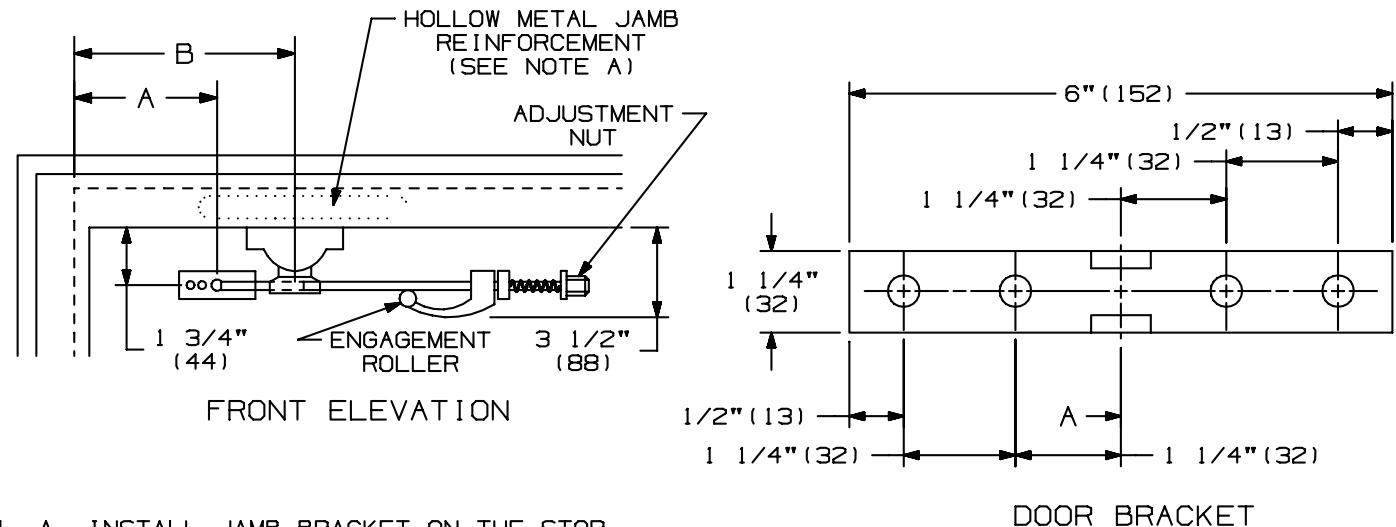

  • 4. A. INSTALL JAMB BRACKET ON THE STOP.
    • B. INSTALL THE DOOR BRACKET ON THE DOOR.

NOTE: DIMENSIONS IN ( ) ARE MILLIMETERS.

MOUNTING GROUPS 1 & 2 79 SERIES SURFACE OVERHEAD STOP & HOLDER CAUTION: "A" & "B" DIMENSIONS ARE MEASURED FROM THE CENTERLINE OF PIVOT, NOT EDGE OF DOOR FOR DEAD 578" (22) TO THE "A" AND "B" DIMENSIONS HOLP-OPEN FOR HOLDERS, OPENING FOR STOPS

BAR
LENGTH 		17 15/16 456 20 5/8 524 23 5/16 269 26 13/16 681 30 5/16 770 17 15/16 456 20 5/8 524 23 5/16 269 26 13/16 681 30 5/16 770
오 В - - 9 1/16 230 12 1/8 308 13 11/16/26 348 15 13/16 402 - - 9 1/2 241 11 3/4 298 13 7/8 352 16 1/16 408
HO 110 < ı - 4 9/16 116 6 1/16 154 8 11/16 221 10 7/8 276 - - 4 11/16 119 8/9 9 168 8 13/16 224 10 7/8 276
Ð , ı 9 3/8 238 12 5/16 313 14 1/8 359 16 1/16 408 8 1/8 206 9 7/8 251 12 1/16 306 14 3/8 365 16 1/2 419
105 « , ı 4 13/16 122 6 1/2 165 9 1/16 230 11 1/2 292 3 9/16 06 4 13/16 122 6 15/16 176 9 1/16 230 11 5/16 287
오 Ð 8 1/8 206 9 11/16 246 12 7/16 316 14 9/16 370 16 3/4 425 8/8 213 10 1/8 257 12 5/8 321 14 3/4 375 17 432
100 « 3 1/2 68 5 1/8 130 7 1/16 179 9 1/2 241 11 7/8 302 3 11/16 94 5 1/16 129 7 178 9 1/2 241 11 13/16 300
오 В 8 1/2 216 10 1/16 256 12 3/4 324 14 7/8 378 17 3/8 441 8 9/16 217 10 1/2 267 12 15/16 329 15 3/8 391 17 5/8 448
95 « 3 3/4 95 5 7/16 138 7 9/16 192 10 1/8 257 12 7/16 316 4 102 5 1/4 133 7 7/16 189 9 3/4 248 12 1/4 311
모 В 8 7/8 225 10 7/16 265 13 3/16 335 15 7/16 392 18 1/8 460 8 13/16 224 10 5/8 270 13 1/4 337 15 3/4 400 18 5/16 465
8 ٧ 4 102 5 13/16 148 8 203 10 11/16 271 13 330 4 1/4 108 5 3/4 146 8 203 10 7/16 265 12 13/16 325
오 В 9 5/16 237 11 1/16 281 13 5/8 346 16 1/8 410 ı 1 9 1/16 230 11 279 13 13/16 351 16 3/8 416 19 483
85 ∢ 4 1/4 108 6 1/16 154 8 5/8 219 11 1/4 286 ı - 4 9/16 116 6 1/8 156 8 3/8 213 11 279 13 9/16 344
DEGREE DOOR
OPENING 		23 1/16-27 585-686 27 1/16-33 687-838 33 1/16-39 839-991 39 1/16-45 992-1143 45 1/16-54 1144-1372 27 1/16-33 88-789 33 1/16-39 839-991 39 1/16-45 992-1143 45 1/16-51 1144-1295 51 1/16-57 1296-1448
DIM. ĸ. mm IN. mm IN. mm IN. mm IN. mm IN. mm IN. mm IN. mm IN. mm IN. шш
MOUNTING GROUP #1 )
(A) 		792 793 795 795 Ş 9
8/
MOUNTING GROUP #1 MOUNTING GROUP #2

NOTE: DIMENSIONS IN ( ) ARE MILLIMETERS.
