INST.79J

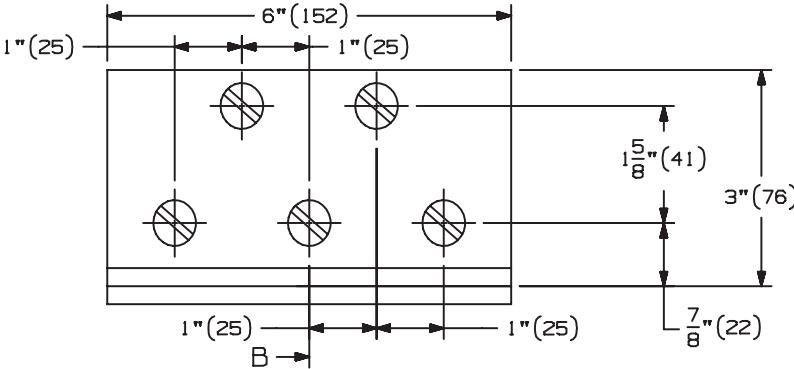

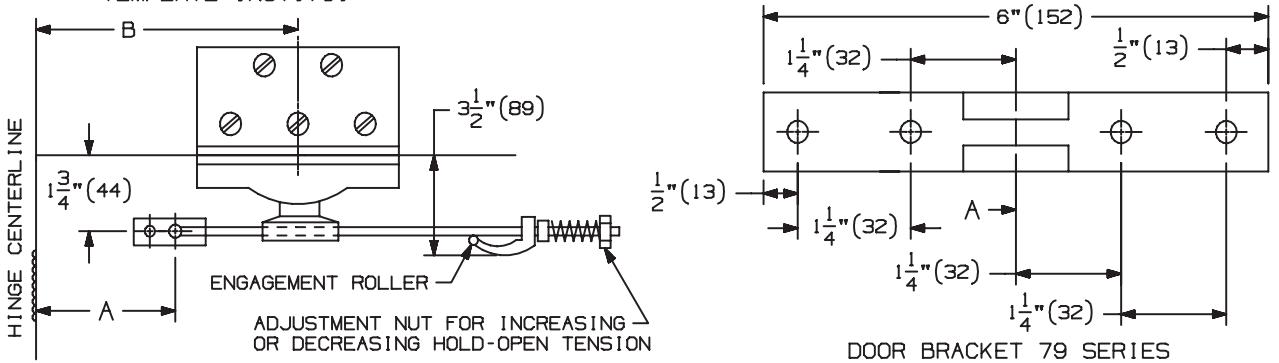

Surface Overhead Holder Angle Bracket (Push Side)
Installation Instructions
| QTY | WOOD | METAL | |
|---|---|---|---|
| ANGLE | 4 |
5/16"-18 X 1/2"
FPHMS |
5/16"-18 X 1/2"
FPHMS |
| JAMB | 4 | #18 X 2" FPHSMS |
5/16"-18 X 1 1/2"
FPHMS |
| DOOR | 4 |
5/16"-18 X 2 1/2"
PPHMS |
5/16"-18 X 2 1/2"
PPHMS |
| DOOR | 4 |
5/16"-18 HEX CAP
NUT |
5/16"-18 HEX CAP
NUT |
| DOOR | 4 | FLAT WASHER | FLAT WASHER |
| DOOR | 3 |
SPLIT LOCK
WASHER |
SPLIT LOCK
WASHER |
