INST.70J

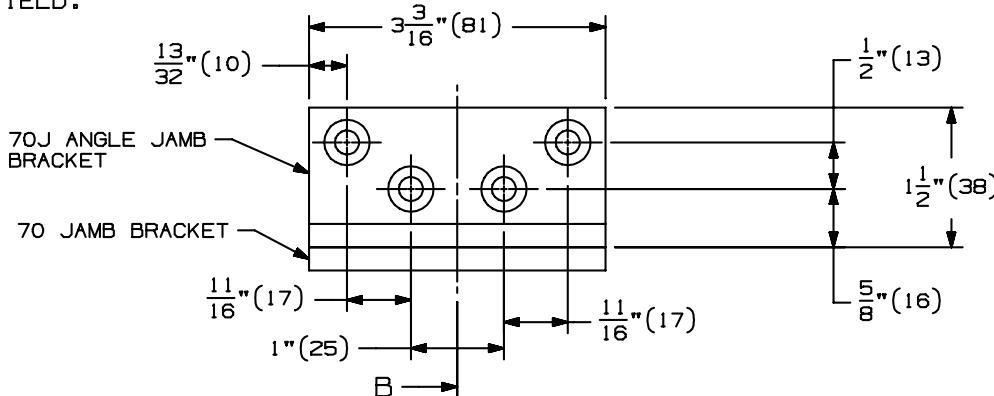

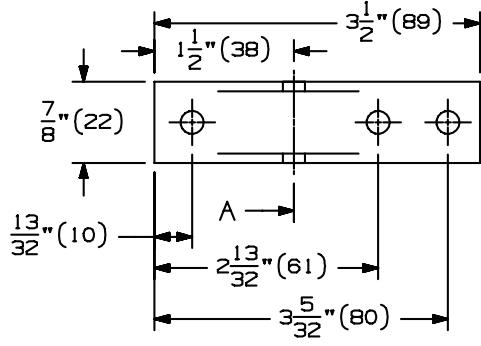

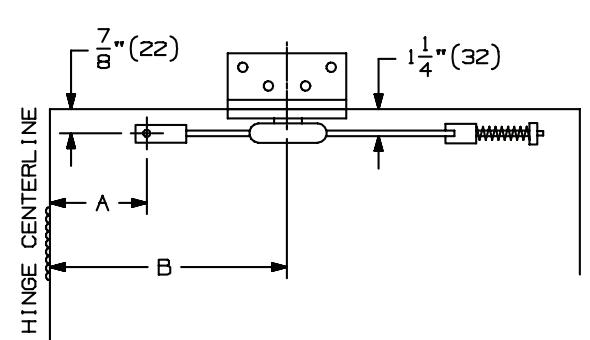

Surface Overhead Holder Angle Bracket (Push Side)
Installation Instructions
| QTY | WOOD | METAL | |
|---|---|---|---|
| ANGLE | 4 | 1/4"-20 X 1/2" FPHMS | 1/4"-20 X 1/2" FPHMS |
| JAMB | 4 | #14 X 1 1/2" FPHSMS | 1/4"-20 X 3/4" FPHMS |
| DOOR | 2 | 1/4"-20 X 1 3/4"PPHMS | 1/4"-20 X 1 3/4" PPHMS |
| DOOR | S | 1/4"-20 GROMMET NUTS | 1/4"-20 GROMMET NUTS |
| DOOR | 1 | #14 X 1 1/2" PPHMS | |
| DOOR | 3 | 1/4"-20 X 3/4" PPHMS |
*INST.70J* INST.70J
