Adjustable Surface Mounted Door Stops and Holders

GLYNN-JOHNSON

Model 550 OH

Installation Instructions

Installation Procedure:

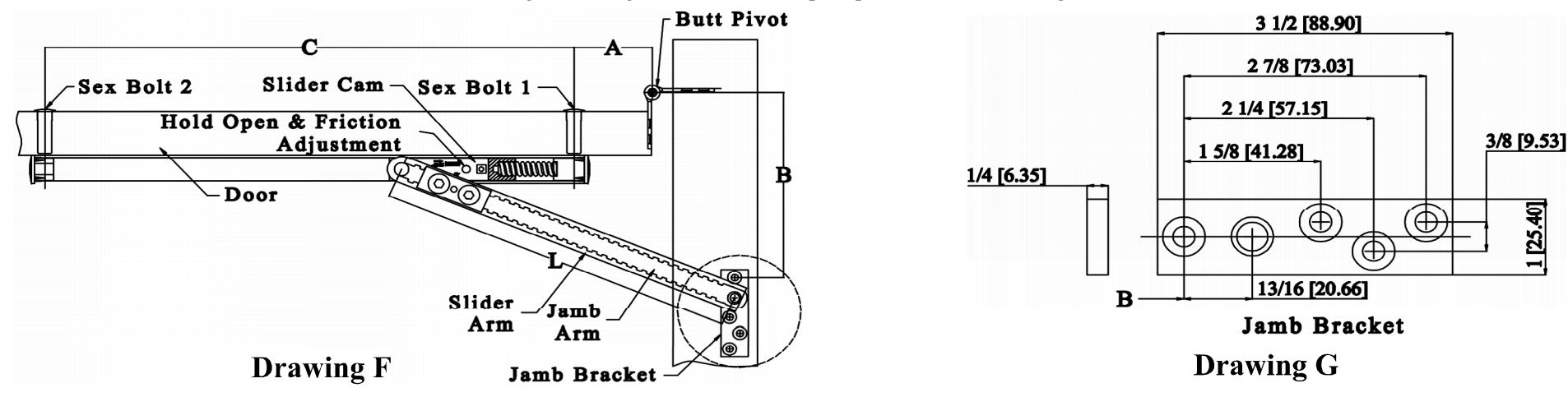

1. Determine the direction of slider based on door width, from 24" $\sim$ 48" for 1 3/4" $\sim$ 2 1/4" Butts & 3/4" Offset Pivot, select proper dimensions as shown on Table 1; from 27" $\sim$ 48" for 1 3/4" $\sim$ 2 1/4" Center Hung, as shown on Table 2.
2. Determine desired degree of door opening as shown on Table 1 & Table 2 respectively.

Table 1:

	Door Width (Inches)	Opening Degree	For All degrees		85°		90°		95°		100°		105°		110°
	Door Width (Inches)	Opening Degree	A	С	В	L	В	L	В	L	В	L	В	L	В	L
1 3/4 ~ 2 1/4 Butts & 3/4 Offset Pivot	24	Inches	$2 \frac{3}{4}$	$19 \frac{5}{16}$			$6 \frac{27}{32}$	$13 \frac{3}{16}$	5 23 64	$13 \frac{3}{16}$	$5 \frac{1}{2}$	$13 \frac{37}{64}$	5 19 64	$13 \frac{31}{32}$	5 $\frac{23}{64}$	$14 \frac{3}{8}$
	24	mm	72.50	490.55			174.15	335.00	136.20	335.00	134.30	345.00	134.45	355.00	136.00	365.00
	25	Inches	3 1/4	$19 \frac{5}{16}$	7 4/32	$13 \frac{3}{16}$	5 1/4	$13 \frac{3}{16}$	5 1/64	13 37 64	5	$13 \frac{31}{32}$	$5 \frac{1}{32}$	$14 \frac{3}{8}$	5 1/8	$14 \frac{49}{64}$
	25	mm	85.20	490.55	180.90	335.00	131.50	335.00	127.50	345.00	126.65	355.00	127.70	365.00	129.95	375.00
	26 ~ 28	Inches	4 1/4	$19 \frac{5}{16}$	$6 \frac{19}{32}$	$13 \frac{31}{32}$	6 3/64	$14 \frac{3}{8}$	5 47 64	$14 \frac{49}{64}$	5 $\frac{9}{16}$	$15 \frac{5}{32}$	5 $\frac{33}{64}$	$15 \frac{35}{64}$	$5 \frac{17}{32}$	$15 \frac{15}{16}$
	26 ~ 28	mm	110.60	490.55	167.35	355.00	153.60	365.00	145.55	375.00	141.55	385.00	140.25	395.00	140.80	405.00
	29 ~ 33	Inches	$6 \frac{1}{4}$	$19 \frac{5}{16}$	$6 \frac{29}{32}$	$15 \frac{15}{16}$	$6 \frac{3}{16}$	$16 \frac{5}{16}$	5 $\frac{49}{64}$	$16 \frac{23}{32}$	$5 \frac{9}{16}$	17 1/8	$5 \frac{31}{64}$	$17 \frac{1}{2}$	$5 \frac{1}{2}$	$17 \frac{29}{32}$
	29 ~ 33	mm	161.40	490.55	175.10	405.00	156.85	415.00	146.40	425.00	141.20	435.00	139.30	445.00	139.60	455.00
	34 ~ 38	Inches	8 3/4	$19 \frac{5}{16}$	$7 \frac{3}{4}$	$15 \frac{15}{16}$	7	$16 \frac{5}{16}$	$6 \frac{1}{2}$	$16 \frac{23}{32}$	$6 \frac{7}{32}$	17 -1/8	$6 \frac{1}{16}$	$17 \frac{1}{2}$	$5 \frac{3}{32}$	$17 \frac{1}{2}$
	34 ~ 38	mm	224.90	490.55	196.80	405.00	177.75	415.00	165.25	425.00	157.75	435.00	153.80	445.00	129.50	445.00
	39 ~ 43	Inches	$11 \frac{1}{4}$	$19 \frac{5}{16}$	$7 \frac{25}{32}$	$18 \frac{5}{16}$	$6 \frac{13}{16}$	$18 \frac{11}{16}$	$6 \frac{15}{64}$	$19 \frac{1}{8}$	$5 \frac{29}{32}$	$19 \frac{31}{64}$	$5 \frac{3}{4}$	$19 - \frac{7}{8}$	$5 \frac{23}{32}$	$20 \frac{9}{32}$
	39 ~ 43	mm	288.40	490.55	197.50	465.00	173.15	475.00	158.30	485.00	150.20	495.00	146.40	505.00	145.35	515.00
	44 ~ 48	Inches	$13 \frac{25}{64}$	$19 \frac{5}{16}$	7 59 64	$20 \frac{9}{32}$	$6 \frac{25}{32}$	$20 \frac{43}{64}$	6 1/8	$21 \frac{1}{16}$	$5 \frac{25}{32}$	21 29 64	5 $\frac{5}{8}$	$21 \frac{27}{32}$	$5 \frac{19}{32}$	$22 \frac{1}{4}$
	44 ~ 48	mm	340.00	490.55	201.35	515.00	172.30	525.00	155.50	535.00	146.80	545.00	143.00	555.00	142.10	565.00

Table 2:

Door Width (Inches)	Opening Degree	For All degrees		85°		90°		95°		100°		105°		110°
Door Width (Inches)	Opening Degree	A	Е	В	L	В	L	В	L	В	L	В	L	В	L
27 ~ 30	Inches	$4 \frac{9}{64}$	$19 \frac{5}{16}$	$7 \frac{13}{32}$	$13 \frac{3}{16}$	7 $\frac{3}{64}$	$13 \frac{37}{64}$	$6 \frac{25}{32}$	$13 \frac{31}{32}$	$6 \frac{39}{64}$	$14 \frac{3}{8}$	$6 \frac{33}{64}$	$14 \frac{49}{64}$	$6 \frac{15}{32}$	$15 \frac{5}{32}$
27 ~ 30	mm	105.00	490.55	187.95	335.00	178.90	345.00	172.45	355.00	168.05	365.00	165.35	375.00	164.10	385.00
31 ~ 33	Inches	6 7/64	$19 \frac{5}{16}$	8 3/64	$15 \frac{5}{32}$	$7 \frac{17}{32}$	$15 \frac{35}{64}$	$7 \frac{5}{32}$	$15 \frac{15}{16}$	$6 \frac{57}{64}$	$16 \frac{11}{32}$	$6 \frac{23}{32}$	$16 \frac{47}{64}$	$5 \frac{31}{32}$	$16 \frac{47}{64}$
31 ~ 33	mm	155.00	490.55	204.25	385.00	191.25	395.00	181.75	405.00	175.10	415.00	170.75	425.00	151.45	425.00
34 ~ 38	Inches	$10 \frac{15}{64}$	$19 \frac{5}{16}$	$7 \frac{29}{32}$	$16 \frac{1}{3}$	$7 \frac{5}{16}$	$16 \frac{23}{32}$	$6 \frac{57}{64}$	$17 - \frac{1}{8}$	$6 \frac{39}{64}$	$17 \frac{1}{2}$	$6 \frac{7}{16}$	$17 \frac{29}{32}$	$6 \frac{21}{64}$	$18 \frac{5}{16}$
34 ~ 38	mm	260.00	490.55	200.75	415.00	185.80	425.00	175.20	435.00	168.05	445.00	163.50	455.00	160.90	465.00
39 ~ 43	Inches	$13 \frac{25}{64}$	$19 \frac{5}{16}$	$7 \frac{37}{64}$	$19 \frac{3}{32}$	$7 \frac{61}{64}$	$19 \frac{7}{8}$	$7 \frac{23}{64}$	$20 \frac{9}{32}$	$6 \frac{15}{16}$	$20 \frac{43}{64}$	$6 \frac{43}{64}$	$21 \frac{1}{16}$	$6 \frac{33}{64}$	$21 \frac{29}{64}$
39 ~ 43	mm	340.00	490.55	192.30	485.00	202.05	505.00	186.80	515.00	176.40	525.00	169.60	535.00	165.45	545.00
44 ~ 48	Inches	$14 \frac{11}{64}$	$19 \frac{5}{16}$	$7 \frac{25}{32}$	$19 \frac{7}{8}$	8 7/64	$20 \frac{43}{64}$	$7 \frac{15}{32}$	$21 \frac{1}{16}$	7 1/64	21 29 64	$6 \frac{47}{64}$	$21 \frac{27}{32}$	$6 \frac{35}{64}$	$22 \frac{1}{4}$
44 ~ 48	mm	360.0	490.55	197.50	505.00	205.90	525.00	189.50	535.00	178.30	545.00	170.95	555.00	166.45	565.00

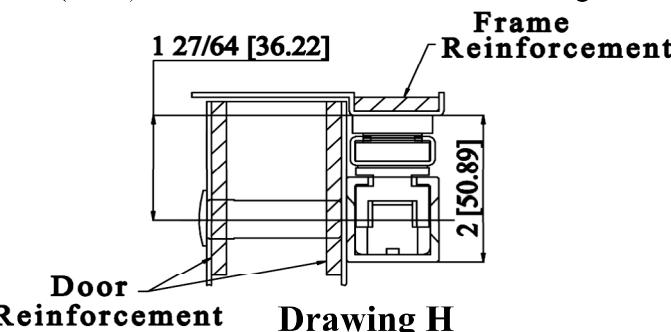

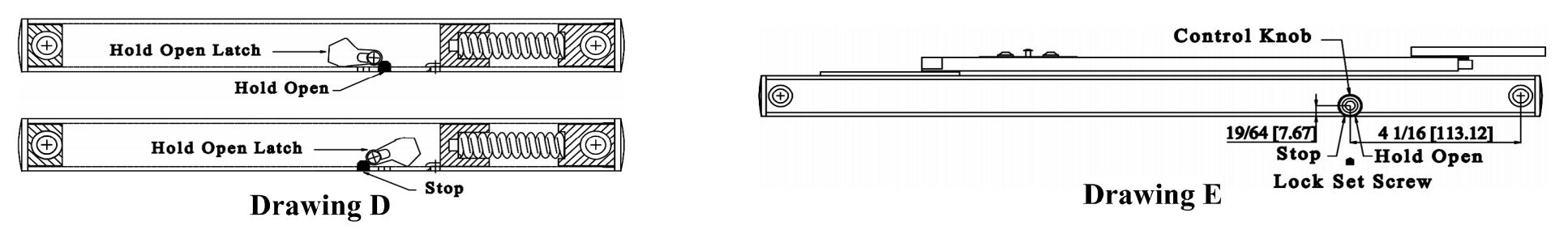

NOTE: If you are using a version without a hold-open option, please skip adjustments on Step 3 and continue to Step 4.

Customer Service 1-877-671-7011 www.allegion.com/us
