510 and 550 Series
Heavy-duty adjustable overhead door stop and holder
Protect the opening, stock less overheads, and sell more.
Commercial and institutional projects require investing in quality doors, frames, and door closers by limiting the force of door swing. With high traffic and abuse, extending the life of your opening with an overhead is the way to go . Typically overhead models come in different sizes and functions, making it complicated for customers to stock, specify or install.
The new Glynn-Johnson 510 and 550 Series heavy duty, adjustable overhead makes your investment not only smart, but simple. Simply stock one 510 or 550 and it is versatile enough to replace dozens of skus in inventory, making this the most comprehensive overhead available in the market today.
Key features
- § Heavy duty for high traffic
- § Concealed mount (510 Series)
- § Surface mount (550 Series)
- § Field adjustable to door width
- § Easily adjust stop and hold open function
- § Adjust to friction hold open with conversion kit
- § Degree of opening is field adjustable from 85° - 110°
- § Shock absorbing spring allows for less abrupt dead stop
- § Perfect compliment to the LCN aluminum closer to protect your door frame
| 510/550 Series Specifications | |
|---|---|
| Certifications | Grade 1- ANSI A156.8, UL listed for use on wood fire doors |
| rated up to 90 minutes and metal doors rated up to 3 hours | |
| in stop-only applications | |
| Functions | Field adjustable between stop and hold-open functions, |
| option conversion kit for friction function available | |
| Size adjustable | Field adjustable for door widths 24"-48" |
| Finishes | 630/US32D Satin stainless steel |
| 652/US26D Satin chrome over steel | |
| Fasteners |
Comes standard with sex bolts for 1 3⁄4" to 1 7
⁄8" thick door |
| Handing | Non-handed |
| Options | § 510-550 Friction Hold Open Conversion Kit |
| (sold separately) | |
| § 510 or 550 Mounting package | |
| § AJK500* – Angle Jamb Bracket Kit | |
| § SHK550 – Shim Kit for Blade Stop Mounting | |
|
* Angel Jamb Brackets affix to Standard Jamb Brackets to allow for flush
transom or hinge side mounting |
|

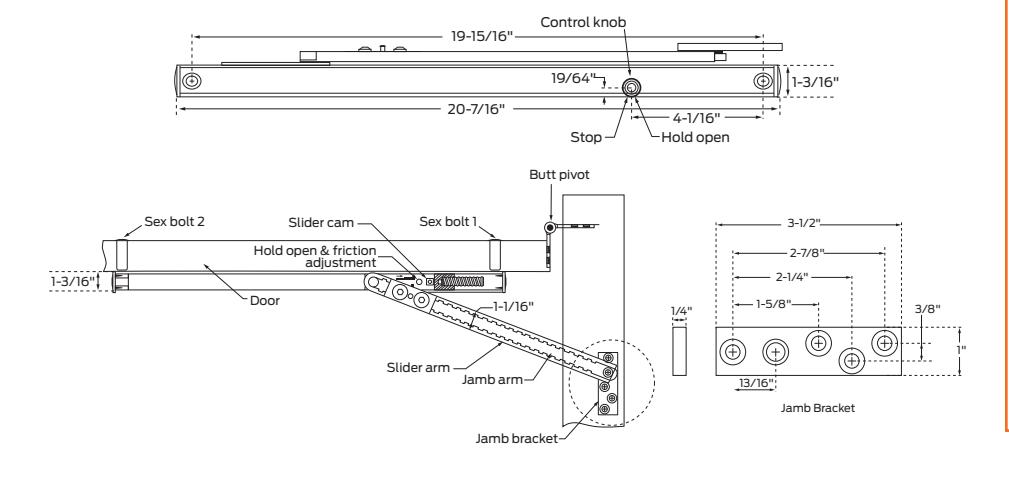

Installation instructions

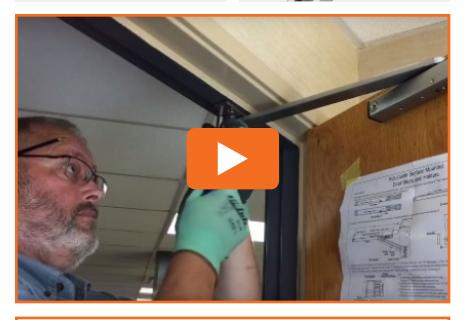

The Glynn-Johnson 510 or 550 instruction sheets come with your order and are available on us.allegion.com for download. Better yet, watch our Glynn-Johnson install video for how to:
- 1. Adjust the slider arm for door opening width
- 2. Set the stop or hold functions
- 3. Measure and drill hole locations
Closer compatibility
Overhead stops and holders are ideally used in conjunction with a closer. With Glynn-Johnson overheads and LCN closers, you can have peace of mind knowing high performance products are working to protect your door, hardware, and frame from abuse.
Contact us at 877-671-7011 to consult with Technical Advisor with any questions.
Visit us at us.allegion.com for product information and additional resources.
