INST.450J

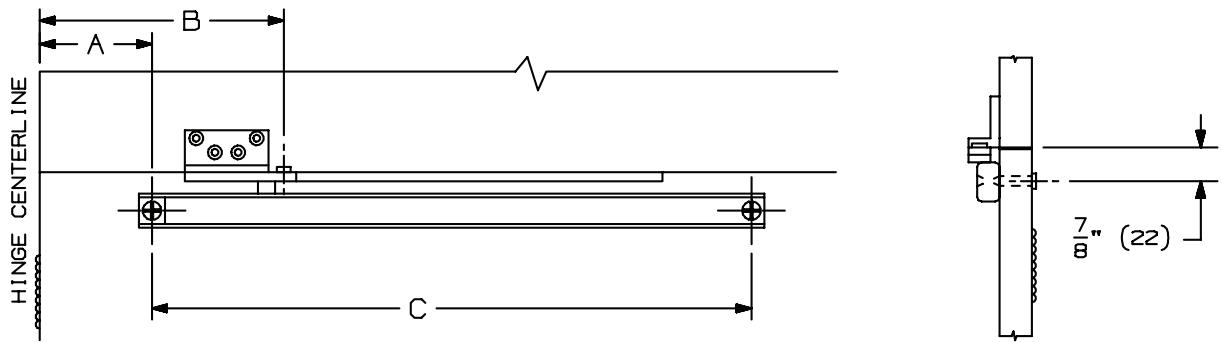

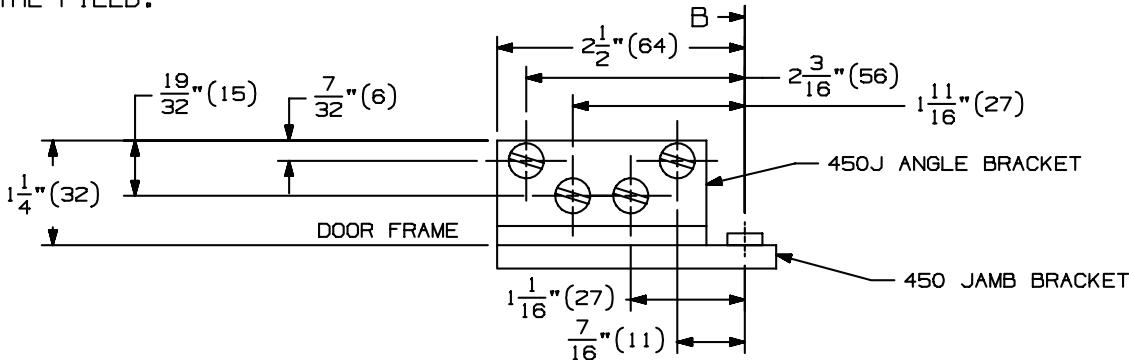

Surface Overhead Holder Angle Bracket (Push Side)
Installation Instructions
| QTY | WOOD | METAL | |
|---|---|---|---|
| ANGLE | 4 | 10-32 X 1/2" FPHMS | 10-32 X 1/2" FPHMS |
| JAMB | 4 | #10 X 1 1/2" FPHSMS | 10-32 X 1/2" FPHMS |
| DOOR | N | 10-24 X 1 1/2" PPHMS | 10-24 X 1 1/2" PPHMS |
| DOOR | 2 | 10-24 X 1 9/16" SEX BOLT | 10-24 X 1 9/16"SEX BOLT |
