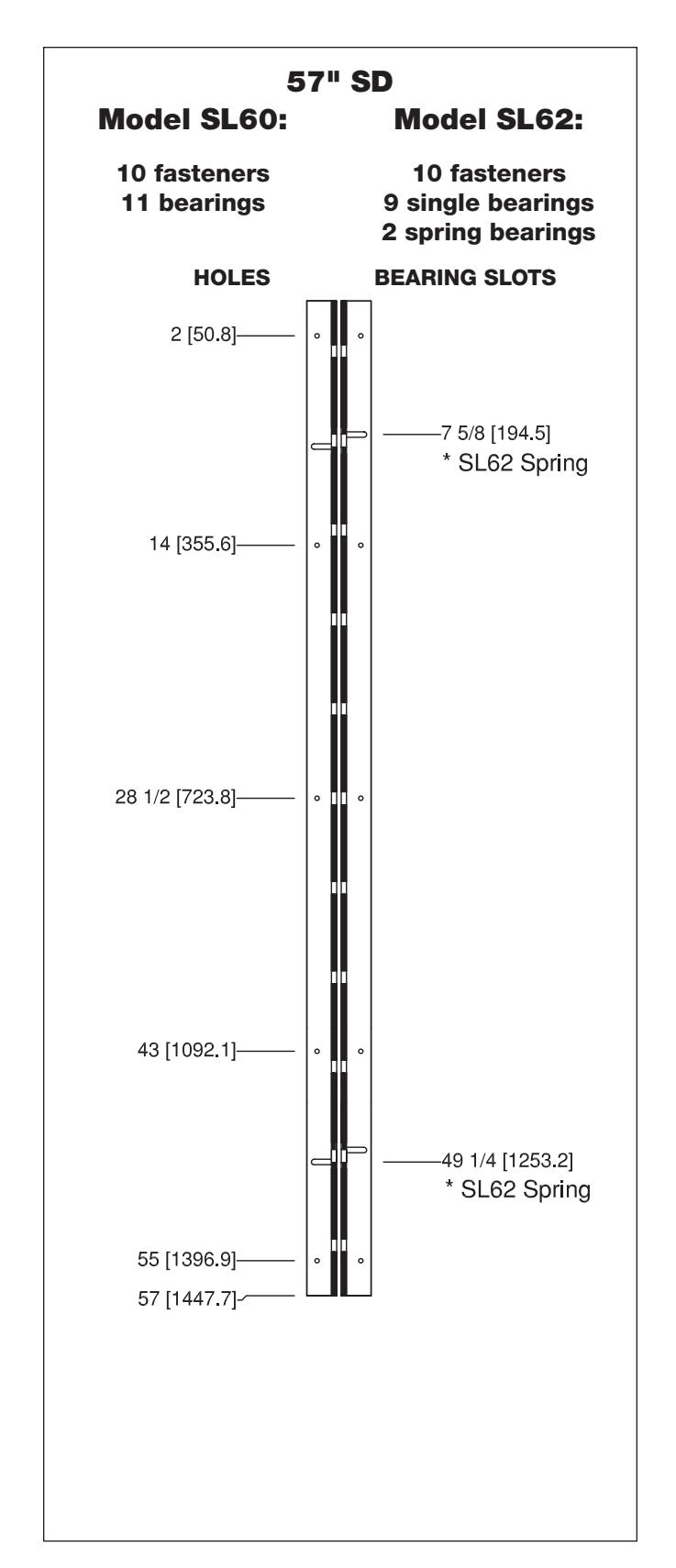

Geared Toilet Partition Hinges Template

Toilet Partition Geared Hinges

• All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
• Minimum hinge length for two spring bearings on SL62 = 43-1/2".
