GateLock GL160-GL260-Pricesheet
Open the original PDF document
View PDFPaniclok Exit Device Release

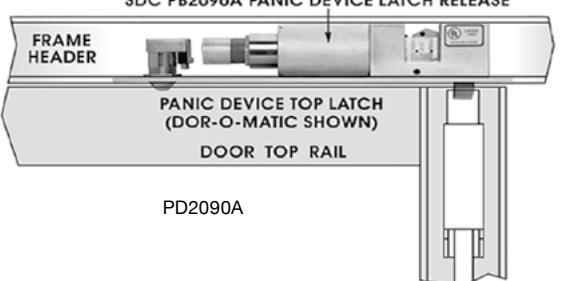

SDC PB2090A PANIC DEVICE LATCH RELEASE
For Dor-O-Matic and Kawneer Exit Device Voltage: 24VDC, 2.5 A Inrush, .4A seated
MODEL
| PD2090ALCU | LH/RHR failsecure | 573.00 |
|---|---|---|
| PD2090ARCU | RH/LHR failsecure | 573.00 |
Standard Finish: U 630 Dull stainless steel
Distributor Discount Code Gate Locks AK LIST
Designed for outdoor installation on swinging or sliding gates, Black Finish. Specify swinging or sliding gate 12/24VDC 900/450 mA 12/24 VDC 900/450 mA
| GL160AI | Failsafe | 915.00 | GL260AH | Failsecure | 915.00 |
|---|---|---|---|---|---|
| GL163AI | Key switch, failsafe | 981.00 | GL263AH | Key switch, failsecure | 981.00 |
| GL260MRAH | Mechanical key unlock, failsecure | 1,026.00 |
Key cylinder not included
SPECIFY HAND - for convenience, field reversible
| кн | Right hand | LH Left hand | N/C |
|---|---|---|---|
| OPTION | S | Add to List | |
| D | Gate position senso | r SPDT for gate lock (GL series) | 89.00 |
| В | Bolt position sensor | SPDT for gate lock | 89.00 |
| BR64XL | Rectifier for AC oper | ation | 28.00 |
| KEY CYLIN | DER OPTIONS | Add to List | |
|---|---|---|---|
| A | CYL-6KDQ | 6 pin, 1.125" mortise cylinder, keyed different, dull chrome | 49.00 |
| (4) | CYL-6KAQ | 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome | 49.00 |
