View PDFModels 2013/2714
Gardall's FB series safes are the next higher level of protection after our U.L two-hour series safes. They have easily passed both the U.L. Fire and U.L.-R.S.C. tests.
Fire/Burglary Safe Standard Features
- Heavy duty construction 4" thick door, 3" thick body
- Composite construction door & body
- Independent glass re-locking system
- 3 spoke chrome plated vault handle
- 1 Hour U.L. 350°F Fire Label (Model FB1212 and FB2013)
- U.L. RSC Burglary Label (Model FB1212, FB2013 and FB2714)
- Center bolt down for ease of installation (hardware included)
- 1¼" chrome plated locking bolts
- Attractive two tone paint for increased durability
- UL listed, S&G Group II combination lock
- Gardall Lifetime Replacement Warranty (see inside front cover)
Lock Options
• U.L. electronic or key-op lock
| Model |
Outsic
H |
le Dimei
W |
nsions
D |
Inside
H |
e Dimen
W |
sions
D |
Cubic
Inches |
Approx.
Weight (lbs.) |
Shelves |
|---|---|---|---|---|---|---|---|---|---|

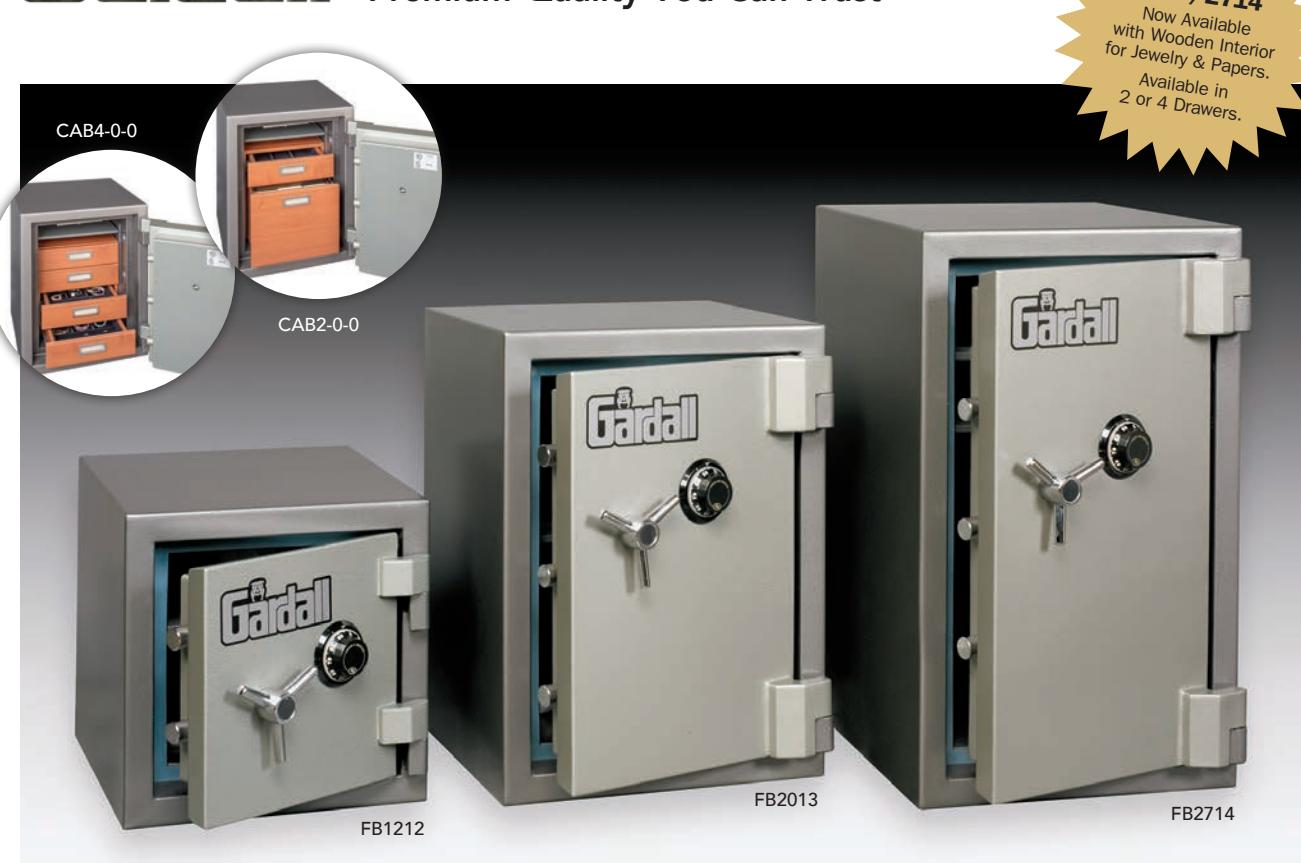

| FB1212 | 17¾" | 17¾" | 20½" | 12" | 11½" | 12¾" | 1836 | 205 | 1 |
| FB2013 | 27" | 20" | 20½" | 20½" | 13¾" | 12¾" | 3558 | 313 | 2 |
| FB2714 | 33½" | 20" | 22¾" | 27½" | 13¾" | 14¾" | 5982 | 412 | 2 |
| CAB2-0-0 | 15¾" | 13¾" | 121/4" | 2 Drawer Insert | 28 | ||||
| CAB4-0-0 | 15¾" | 13¾" | 12¼" | 4 Drawer Insert | 33 | ||||
2 or 4 Drawer Wooden Interiors (Models FB2013 or FB2714)
Add 2" to outside depth for dial and handle.
