Gardall Insulated Wall Safes Catalog
Open the original PDF document
View PDF
Your Best Protection Against Robbery
Visit us online at www.gardall.com

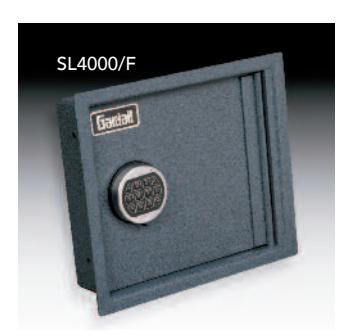

Heavy Duty Concealed Wall Safes
Wall safes have a 1" flange for easier installation. Designed to be recessed into a wall and concealed by a picture or a mirror. Available with U.L. Group II electronic lock as an option. Available for 4" or 6" wall depth.
| Outside Dimensions | Inside Dimensions | Inside | Approx. | |||||
|---|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | Cubic Inches | Weight (lbs.) |
| SL4000/F | 12%" | 14%" | 4" | 12" | 14" | 2¾" | 446 | 41 |
| SL6000/F | 12¾" | 14%" | 6" | 12" | 14" | 4½" | 756 | 47 |
Shelf is not adjustable. 1/4" door (4) 3/8" holes on sides for anchoring.

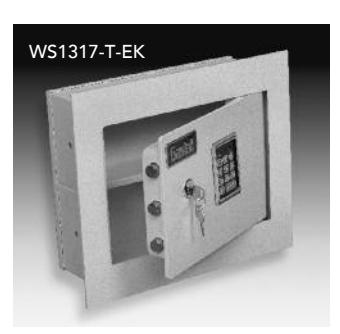

Concealed Wall Safes
Wall safes have a 1" flange for easier installation. Designed to be recessed into a wall and concealed by a picture or a mirror. Available with either a key operated lock or a 6 digit electronic and key lock for extra security. 3 active bolts in boltwork. Available for 4" or 6" wall depth.
| Outside Dimensions | In | Weight | |||||
|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | (lbs.) |
| WS1314-T-K or EK | 12¼" | 14½" | 4" | 12" | 14" | 2½" | 27 |
| WS1317-T-K or EK | 121/4" | 14½" | 5½" | 12" | 14" | 3½" | 30 |
Key required to open safe door. Shelf is not adjustable. EK – push button electronic lock
Insulated Wall Safes
We have four models of insulated wall safes. They come with a 2" flange and bolt down hardware to make installation easier. Safes are horizontal or vertical in design and have the same features as our Microwave Safes on page 6. Flange and safe shipped separate.
| Outside Dimensions | Inside Dimensions | Approx. | |||||
|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | Weight (lbs.) |
| WMS911-G-CK or E | 12" | 15¾" | 12½" | 8½" | 12" | 81/2" | 75 |
| WMS119-G-CK or E | 15¾" | 12" | 12½" | 12¼" | 8½" | 8½" | 75 |
| WMS912-G-CK or E* | 14" | 17¼" | 15¼" | 9½" | 12¾" | 10¼" | 101 |
| WMS129-G-CK or E★ | 17¼" | 14" | 15¼" | 12¾" | 9½" | 10¼" | 101 |
