Gardall Heavy Duty Under Counter Depositories Safes – Compact Utility
Open the original PDF document
View PDF
Visit us online at www.gardall.com
Keep excess till cash locked away and out of sight to prevent loss from pilferage.

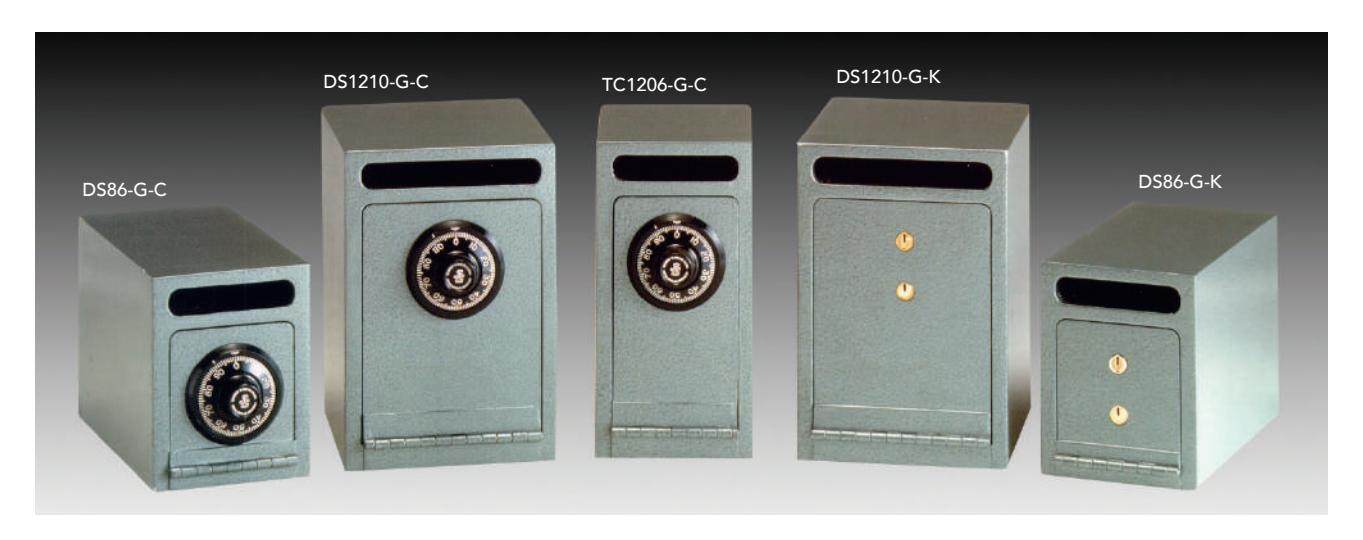

Under Counter Depository Safes – 1/2" Plate Steel Door, 1/4" Body
| Outsi | de Dimen | sions | Ins | Weight | |||
|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | (lbs.) |
| DS86-G-K | 8" | 6" | 12" | 7½" | 5½" | 11" | 34 |
| DS86-G-C | 8" | 6" | 12" | 7½" | 5½" | 11" | 34 |
| TC1206-G-K | 12" | 6½" | 8" | 91/4" | 6" | 7" | 35 |
| TC1206-G-C | 12" | 61/2" | 8" | 91/4" | 6" | 7" | 35 |
| DS1210-G-K | 12" | 8" | 10" | 10¼" | 7½" | 9" | 47 |
| DS1210-G-C | 12" | 8″ | 10" | 10¼" | 7½" | 9" | 47 |
Anchoring holes in bottom for easy installation
Compact Utility Safes
Designed for use in walls, basements, car trunks, and RV's. Solid steel plate with insurance "B" rated construction. This safe also features a U.L. listed Group II combination lock. Door will interchange with many other Gardall Safes. 1/2" pre-drilled mounting holes in base.
Standard Features
- 1/2" plate steel door
- Independent relock on lock
- UL listed, S&G Group II combination lock
- Group II electronic lock (optional) 4 anchoring holes in bottom
| Outs | side Dimen | sions | ln: | Inside Dimensions |
Approx.
Weight |
|||
|---|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | Inches | (lbs.) |

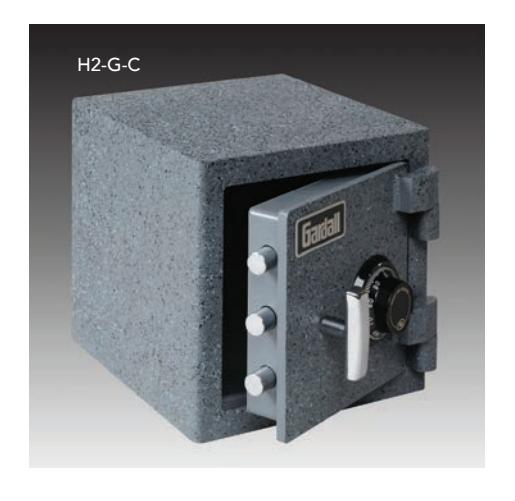

| H2-G-C | 11¼" | 11½" | 12¾" | 10½" | 11" | 10¾" | 1242 | 70 |
Add 11/2" to outside depth for dial and handle.
