Visit us online at www.gardall.com
Designed to protect money collection where immediate deposit is required. Deposit can be made into the safe while the door is locked. Exclusive baffle design prevents contents from being removed through the entry opening. Hopper rotor is built into safe body and cannot be removed to gain access to the safe.
Heavy Duty Depositories Standard Design Benefits
- CLASS B Insurance Rating 1/2" steel door with punch resistant bolt and relocking device to deter forcible entry. 1/4" steel body construction.
- Dual Custody Key Locks Requires 2 keys to open door for absolute security.
- UL listed, S&G Group II combination lock.
- Triple boltwork with independent relocking device.
- Relocking device If back cover is knocked off of lock, the independent relock device is activated, preventing bolt withdrawal. Available on either combination or dual key operated doors.
- Rotary Hopper Capacity 3¾" x 9" x 4" designed to fit most standard money bags and envelopes.
- Front Loading Capacity designed to fit most large money bags – 2¾" x 10½" x 7½"
- Interchangeable Doors 2 sizes 9" x 9" and 12" x 12".
- 4 anchoring holes in base.
Standard color: Gray
All specifications are subject to change without notice.
To Operate Front Loading Depository
Pull drop door forward, place items to be deposited inside, release the drop door. Deposited item should drop inside. Open the drop door to be certain.
| Model |
Outsic
H |
de Dimei
W |
nsions
D |
Inside Dimensions
H W D |
Inside
Cubic Inches |
Door
Size |
Approx.
Weight (lbs.) |
|||
|---|---|---|---|---|---|---|---|---|---|---|

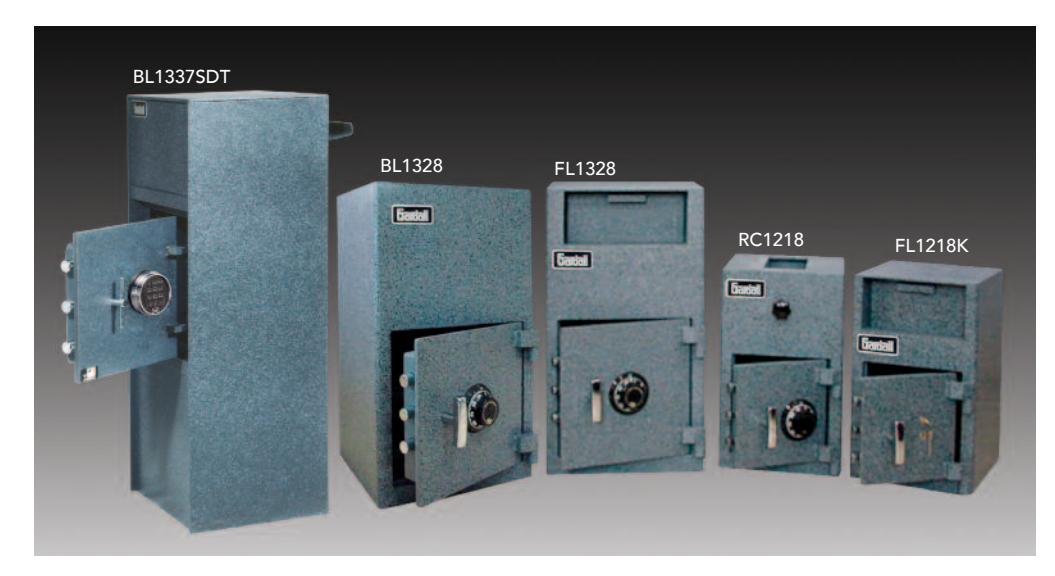

| FL1218 | 18" | 11½" | 13" | 10½" | 10¾" | 10¾" | 1213 | 9"x 9" | 103 | |
| FL1328 | 25" | 14½" | 13" | 15" | 13½" | 11½" | 2329 | 12"x12" | 165 | |
| BL1328 | 25" | 14½" | 13" | 15" | 13½" | 11½" | 2329 | 12"×12" | 150 | |
| RC1237 | 36¾" | 14½" | 13" | Т | 15¼" | 13¾" | 10¾" | 2180 | 12"x12" | 220 |
| В | 14¾" | 13¾" | 10¾" | 2180 | ||||||
| *BL1337 | 36½" | 14½" | 13" | Т | 12" | 13½" | 10¾" | 1742 | 12"x12" | 215 |
| В | 13¾" | 13¾" | 10¾" | 2032 | ||||||
Above available as (K) dual key lock (C) Group II combination lock, (KO) key-op lock or (E) S&G 6120 electronic lock. Please specify.
IMPORTANT! These safes are built with the intent of keeping large bills and valuables out of unprotected areas, until deposits can be made. They are not meant to be used as unprotected storage safes for overnight, or lengthy periods of time. Discuss your needs with your local safe professional or if you are in doubt, call GARDALL and we will recommend a safe expert.
* BL designates depository on back side of safe from door. Add 2" to outside depth for dial and handle.
