Visit us online at www.gardall.com
Gardall Firelined Gun Safes

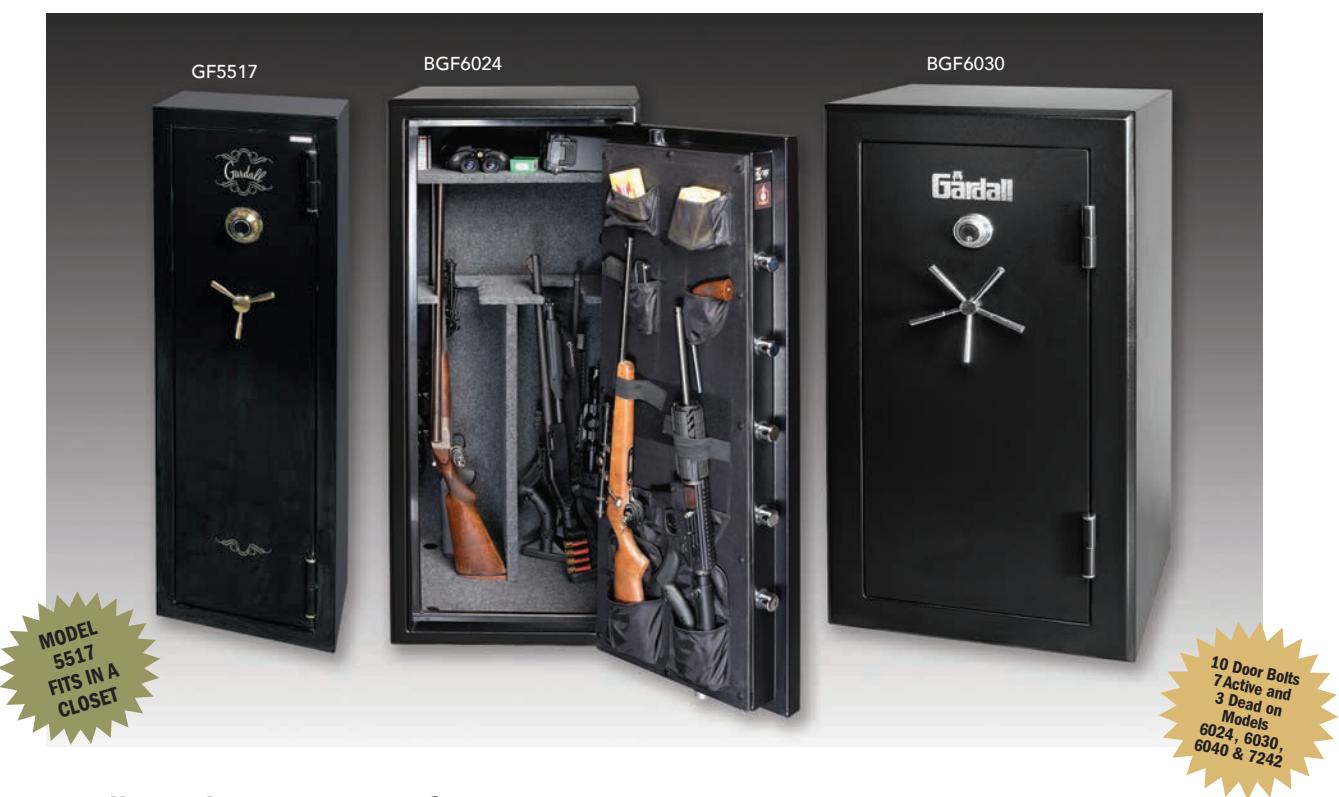

GF5517
Single Layer of Fire Protection
- 3-way locking bolts 5 active 1" bolts
- 3 wheel lock with spyproof dial
- 3 spoke handle
- 4 anchoring holes in bottom
- 11 gun capacity
- Powder coated paint
- Safe fits in a standard closet
- Fire tested at 1200°F for 30 minutes
- Premium quality door organizer
- Add 2" to depth for handle
BGF6024/6030/6040/7242
Double Layer of Fire Protection
- 3-way locking bolts 7 active 1½" bolts
- U.L. Group II lock with keylocking spyproof dial
- 2 layers 1/2" U.L. rated fire board insulation
- 5 spoke handle
- 4 anchoring holes in bottom
- Capacity: BGF6024: 16 gun slots
BGF6030: 22 gun slots BGF6040: 39 gun slots BGF7242: 45 gun slots
- U.L. Approved Intumescent door seal expands to 7X original size
- Fire tested at 1400°F for 60 minutes
- U.L. RSC Burglary Label
- 3 dead bolts on hinge side
- Premium quality door organizer
| Outside Dimensions | Inside Dimensions | Approx. | |||||
|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | Weight (lbs.) |
| GF5517 | 55¼" | 17¾" | 16" | 53" | 16" | 11½″ | 265 |
| BGF6024 | 59%" | 24" | 22" | 55" | 21" | 16" | 520 |
| BGF6030 | 59%" | 30" | 26" | 55" | 26¾" | 20" | 650 |
| BGF6040 | 591/3" | 40" | 26" | 55" | 37¼" | 20" | 805 |
| BGF7242 | 72" | 42" | 27½" | 68½" | 39" | 21" | 882 |
Powder Coated Matte Finish: Black. 4 Anchoring Holes with Hardware included. U.L. Group II combination lock standard. U.L. Type I electronic lock available as option.
