Gardall Fire Lined Gun Safes Catalog

GUN OWNERS

MODELS 6024-7242 Now Feature Both 1 Hour Fire (1400°F) and U.L. RSC Burglary Labels (BF)

Protect Your Guns And Valuables From Fire or Burglary

New Premium Quality Door Organizers With All Safes

Model	Outsi H	de Dime W	nsions D	Insid H	le Dimens W	sions D	Approx. Weight (lbs.)
GF5517-C or E	55¼"	17¾"	16"	53"	16"	11½"	265
BGF6024-C or E	59%"	24"	22"	55"	21"	16"	520
BGF6030-C or E	59%"	30"	26"	55"	26¾"	20"	650
BGF6040-C or E	59%"	40"	26"	55"	37¼"	20"	805
BGF7242-C or E	72"	42"	27½"	68½"	39"	21"	882

Powder Coated Matte Finish in Black – Extremely Durable. Gold or Silver Trim Available. BGF6024/6030/6040/7242 safes have Group II combination locks as a standard feature. S&G Type I Electronic Lock, add $195 Retail List. All Purpose (3 shelf) interiors available as an option. 4 anchoring holes with hardware included.

"Protect Your Guns and Valuables and Take A Bite Out of Crime with Gardall"

www.gardall.com

Gardall Firelined Gun Safes

MODEL

GF5517 Single Layer of Fire Protection

ĺ	Outside Dimensions (Inches)			Inside D	imensions	Approximate
ı	Н	W	D	H	W	D	Weight (lbs.)
	55¼"	17¾"	16"	53"	16"	11½"	265
	0 1			411.1.1.	ъ.

• 3-way locking bolts 5 active 1" bolts
• 3 spoke handle
• 4 anchoring holes in bottom
• S&G electronic lock available as option
• 11 gun slots

• Powder coated paint: black
• Safe fits in standard closet.
• Fire tested at 1200°F for 30 minutes
• Add 2" to depth for handle
• 3-1" dead bolts on hinge side

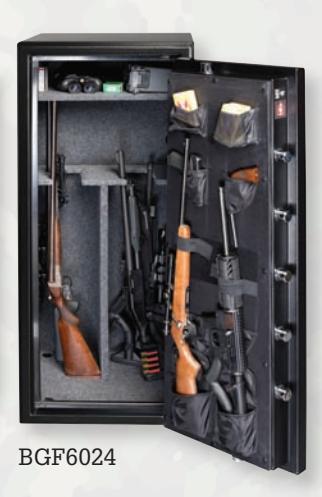

MODEL BGF6024 Double Layer of Fire

Protection

ı	Outside Dimensions (Inches)		Inside D	Approximate
ı	H	W	D	H	W	D	Weight (lbs.)
	59%"	24"	22"	55"	21"	16"	520

• 3-way locking bolts 7 active 1½" bolts
• U.L. Group II lock with spyproof dial
• 2 layers ½" U.L. rated fire board insulation
• U.L. Approved Intumescent door seal expands to 7X original size
• S&G electronic lock available as option
• 16 gun slots, 5 spoke handle
• 4 anchoring holes in bottom
• U.L. RSC Burglary Label/CA DOJ
• Fire tested at 1400° F for 60 minutes
• Add 3" to depth for handle
• 3 dead bolts on hinge side

MODEL BGF6030 Double Layer of Fire Protection

Outside 1	Dimension	ıs (Inches)	Inside D	imensions (	Inches)	Approximate
H	W	D	Н	W	D	Weight (lbs.)
59%"	30"	26"	55"	26¾"	20"	650

• 3-way locking bolts 7 active 1½" bolts
• U.L. Group II lock with spyproof dial
• 2 layers ½" U.L. rated fire board insulation
• U.L. Approved Intumescent door seal expands to 7X original size
• S&G electronic lock available as option
• 22 gun slots, 5 spoke handle
• 4 anchoring holes in bottom
• U.L. RSC Burglary Label/CA DOJ
• Fire tested at 1400° for 60 minutes
• Add 3" to depth for handle
• 3 dead bolts on hinge side

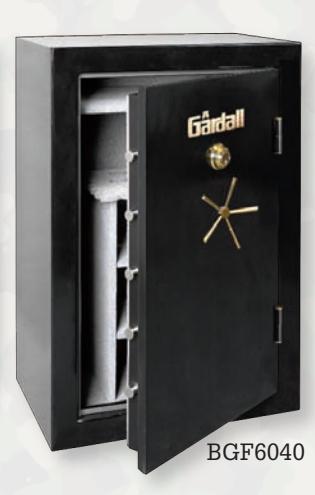

MODEL. BGF6040 Double Layer of Fire Protection

Outside Dimensions (Inches)			Inside I	Approximate
H	W	D	H	W	D	Weight (lbs.)
59%"	40"	26"	55"	37¼"	20"	805

• 3-way locking bolts 9 active 1½" bolts
• U.L. Group II lock with spyproof dial
• 2 layers ½" U.L. rated fire board insulation
• U.L. Approved Intumescent door seal expands to 7X original size
• S&G electronic lock available as option
• 39 gun slots, 5 spoke handle
• 4 anchoring holes in bottom
• U.L. RSC Burglary Label/CA DOJ
• Fire tested at 1400° for 60 minutes
• Add 3" to depth for handle
• 3 dead bolts on hinge side

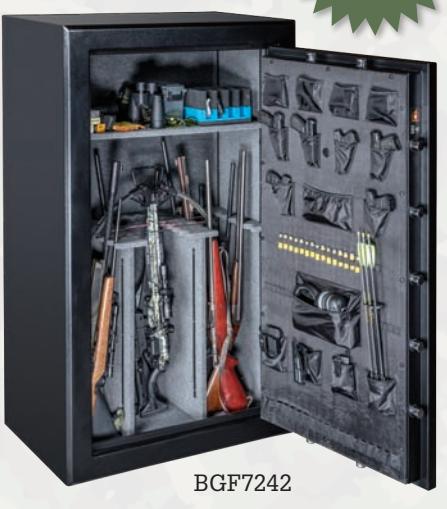

BGF7242 Double Laver of Fire Protection

MODEL

Outside Dimensions (Inches)			Inside D	imensions	Approximate
H	W	D	H	W	D	Weight (lbs.)
72"	42"	27½"	68½"	39"	21"	882
- O

• 3-way locking bolts 9 active 1½" bolts
• U.L. Group II lock with spyproof dial
• 2 layers ½" U.L. rated fire board insulation
• U.L. Approved Intumescent door seal expands to 7X original size
• S&G electronic lock available as option
• 45 gun slots, 5 spoke handle
• 4 anchoring holes in bottom
• U.L. RSC Burglary Label/CA DOJ
• Fire tested at 1400° for 60 minutes
• Add 3" to depth for handle
• 3 dead bolts on hinge side

"Protect Your Guns and Valuables and Take A Bite Out of Crime with Gardall"
