Visit us online at www.gardall.com
MADE IN THE U.S.A.
Designed for complete protection of your valuables, a "B" rated burglary safe securely welded inside a 2-hour fire resistive safe.
Standard Features
- Class "B" Rated interior safe construction. Door of inner safe will interchange with other Gardall safes key lock or combination.
- Fire Resistive Exterior Safe Insulated to withstand 1850°F for 2 hours.
- UL listed, S&G Group II combination lock
- Relocking Device If back cover is knocked off of the lock, the independent relock device is activated, preventing bolt withdrawal.
- Boltwork Interior Door Triple boltwork with independent relock device (except Models 1812 and 1818).
- Boltwork Exterior Door Interlocking bolts extend into the safe walls, deadbolts on hinge side of door to deter forcible entry by removal of hinges.
- Hard plate on both interior and exterior
| Model |
Outsi
H |
de Dime
W |
ensions
D |
Insid
H |
e Dimen |
sions
D |
Inside Cubic |
Appx.
Wt. (lbs.) |
Shelves | |
|---|---|---|---|---|---|---|---|---|---|---|
| Z1812/2 | 25" | 17¼" | 19¾" | MS | 9¾" | 11" | 8" | 858 | 365 | NA |
| SS | 7¾" | 12" | 10¾" | 1000 | ||||||
| Z1818/2 | 25" | 17¼" | 25¾" | MS | 9¾" | 11" | 14" | 1502 | 455 | NA |
| SS | 8" | 12" | 16¾" | 1608 | ||||||

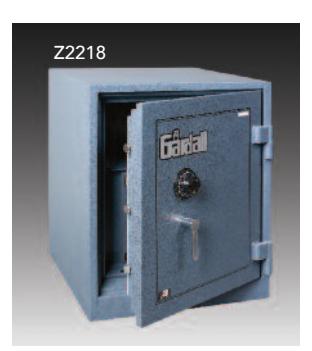

| Z2218/2 | 291/4" | 23¼" | 25¾" | MS | 12½" | 17¼" | 14" | 3019 | 645 | NA |
| SS | 9" | 18" | 16¾" | 2714 | ||||||
| Z3018/2 | 37¼" | 23¼" | 25¾" | MS | 12½" | 17¼" | 14" | 3019 | 740 | 2 |
| SS | 17½" | 18" | 16¾" | 5162 | ||||||
| Z3620 | 43½" | 25¾" | 26¾" | MS | 12½" | 19½" | 15¼" | 3717 | 940 | 2 |
| SS | 23¼" | 20½" | 18¾" | 8937 | ||||||
| Z4220 | 49½" | 25¾" | 26¾" | MS | 12½" | 19½" | 15¼" | 3717 | 1010 | 3 |
| SS | 29¼" | 20½" | 18¾" | 11243 | ||||||
| Z4820 | 55½" | 25¾" | 26¾" | MS | 12½" | 19½" | 15¼" | 3717 | 1110 | 3 |
| SS | 35¾" | 20½" | 18¾" | 13595 |
Standard colors: Gray or sandstone. Add 2" to outside depth for dial and handle.
Safe/Chest Combination - TL15 Money Safe/Two Hour Fire Safe
|
Outside Dimensions
Model H W D |
Inside Dimensions
H W D |
Inside Cubic
Inches |
Approx.
Wt. (lbs.) |
||||||
|---|---|---|---|---|---|---|---|---|---|

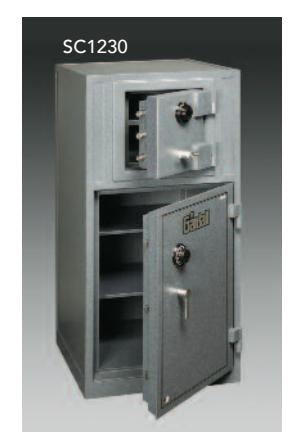

| SC1230 | 55¾" | 25¾" | 26¾" | Тор | 11¾" | 12" | 11" | 1158 | 1695 |
| Bottom | 30½" | 20½" | 20" | 12505 | 1073 | ||||
Weights measured w/pallet. Shelves SC1120 - 2, SC1130 - 3. All specifications are subject to change without notice.
