Commercial In-Floor Safes
In floor safes are designed to be buried in the floor and concealed by a dust cover under a rug or carpet. Installation should be done by a professional safe dealer.
Standard Features
- UL listed, S&G Group II combination lock
- Hard plate between the lock and dial ring.
- Full length locking bar hinge side of door.
- Independent relocking device to deter forced entry.
- Door frame is reinforced on bolt side.
- Coil spring assist on all doors for ease of opening and closing.
- Dust cover included.
- "B" rate burglary construction.
- 5 active 3/4" bolts on Models 1307, 1311 and 3600.
Square Tube Safe with Liftout Head
| Outside Dimensions | Inside Dimensions | Inside Cubic | Approx. | Door | |||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | Inches | Wt. (lbs.) | Size |
| G500 | 8" | 8" | 11¼" | 7%" | 7%" | 9" | 523 | 42 | 7½"x7½"x1/2" |
| G700 | 8" | 8" | 15¼" | 7%" | 7%" | 13" | 755 | 51 | 7½"x7½"x1/2" |

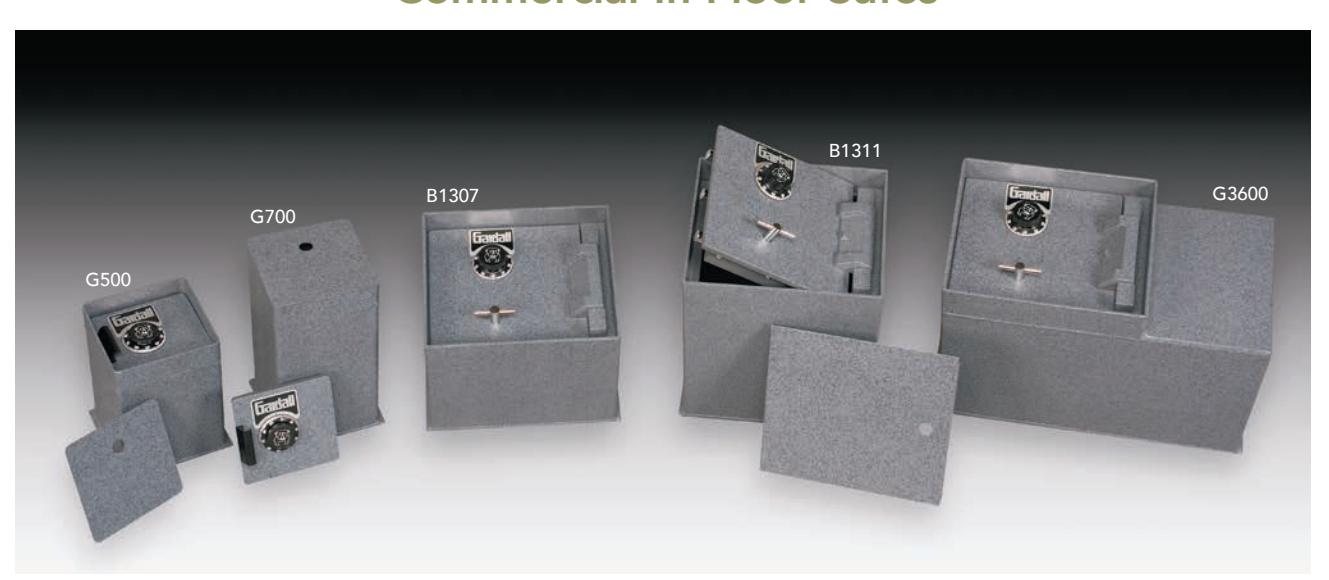

Commercial In-Floor Safes
| Outside Dimensions | Inside Dimensions | Inside Cubic | Approx. | Door | |||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Н | W | D | Н | W | D | Inches | Wt. (lbs.) | Size |
| B1307* | 14¾" | 12¾" | 12¼" | 13¾" | 12½″ | 8" | 1375 | 100 | 12"x12"x1/2" |
| B1311* | 14¾" | 12¾" | 17¼" | 13¾" | 12½" | 13" | 2234 | 117 | 12"x12"x1/2" |
| G3600* | 23½" | 12½" | 17¼" | 22¾" | 12" | 13½" | 3686 | 150 | 12"x12"x1/2" |
Standard color: Gray. All specifications are subject to change without notice. *5 active locking bolts. Depth equals measurement into the ground. Width is left to right.
