Your Best Protection Against Robbery and Fire
Visit us online at www.gardall.com
Gardall Safe Corporation has been manufacturing premium quality safes for home and office applications since 1950. Our Commercial High Security safes are manufactured to specifications which are more stringent than many of our competitors requirements. Some of the standard features on Gardall TL15 and TL30 safes are options with other manufacturers. Please be sure to compare our specifications with those of our competitors before making your decision.
- • TL15 Tool Resistant for 15 minutes
- • TL30 Tool Resistant for 30 minutes
- • TL30/6 Tool Resistant for 30 minutes all six sides of safe.
Standard Features:
Door Construction:
- TL15 51 ⁄2" slab High Density Fiber Reinforced Material
- TL30 51 ⁄2" overall, 3" slab of High Density Fiber Reinforced Barrier Material – TDRII*
- TL30x6 TL30x6 51 ⁄2" overall thickness with 2" Defense Barrier
Body Construction:
- TL15 21 ⁄2" slab of High Density Barrier Material
- TL30 21 ⁄2" slab of High Density Barrier Material
- TL30x6 21 ⁄2" thick composite Reinforced Manganese steel armor plate
Anti Burglary Components:
- Cross locking relockers.
- Punch resistant spindle handle and lock.
- Tempered glass relocking trigger.
- Bridge mounted lock.
- Formed stainless steel locking bar 11 ⁄2" depth.
Locks:
• Group 2M listed combination. Key lock available for dual custody.
Hinges:
• Massive heavy duty adjustable ball bearing hinges.
Fire Rating:
• Fire tested to 1850°F. Interior temperature less than 350°F for 1 hour.
| Model | H |
Outside Dimensions
W |
D | H |
Inside Dimensions
W |
D |
Approx.
Cubic Ft. |
Approx.
Weight* |
Shelves | |
|---|---|---|---|---|---|---|---|---|---|---|
| TL15 | 1818T15 | 23" | 23" |
201
⁄4" |
18" | 18" | 12" | 2.25 | 650 | 1 |
| 2218T15 | 27" | 23" |
251
⁄2" |
22" | 18" | 17" | 3.9 | 870 | 1 | |
| 3822T15 | 43" | 27" |
281
⁄2" |
38" | 22" | 20" | 9.7 | 1345 | 2 | |
| 5022T15 | 55" | 27" |
281
⁄2" |
50" | 22" | 20" | 12.7 | 1730 | 3 | |
| 6222T15 | 67" | 27" |
281
⁄2" |
62" | 22" | 20" | 15.8 | 2245 | 4 | |
|
0
TL3 |
1818T30 | 23" | 23" |
201
⁄4" |
18" | 18" | 12" | 2.25 | 686 | 1 |

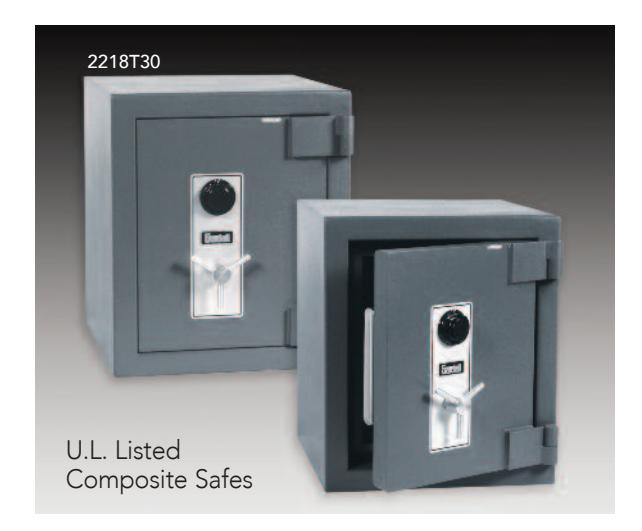

| 2218T30 | 27" | 23" |
251
⁄2" |
22" | 18" | 17" | 3.9 | 905 | 1 | |
| 3822T30 | 43" | 27" |
281
⁄2" |
38" | 22" | 20" | 9.7 | 1400 | 2 | |
| 5022T30 | 55" | 27" |
281
⁄2" |
50" | 22" | 20" | 12.7 | 1800 | 3 | |
| 6222T30 | 67" | 27" |
281
⁄2" |
62" | 22" | 20" | 15.8 | 2335 | 4 | |
| 7236T30 | 77" | 41" |
281
⁄2" |
72" | 36" | 20" | 30 | 3860 | 4 | |
|
6
X 0 TL3 |
1818T30X6 | 23" | 23" |
201
⁄4" |
18" | 18" | 12" | 2.25 | 855 | 1 |
| 2218T30X6 | 27" | 23" |
251
⁄2" |
22" | 18" | 17" | 3.9 | 1105 | 1 | |
| 3822T30X6 | 43" | 27" |
281
⁄2" |
38" | 22" | 20" | 9.7 | 2050 | 2 | |
| 5022T30X6 | 55" | 27" |
281
⁄2" |
50" | 22" | 20" | 12.7 | 2325 | 3 | |
| 6222T30X6 | 67" | 27" |
281
⁄2" |
62" | 22" | 20" | 15.8 | 3015 | 4 | |
| 7236T30X6 | 77" | 41" |
281
⁄2" |
72" | 36" | 20" | 30 | 4660 | 4 |
