ELECTROMECHANICAL GATELOCK FOR ACCESS CONTROL

GL160/GL260 GATELOCK

FOR TUBULAR STEEL AND WROUGHT IRON GATES

Electromechanical GateLock for Access Control of Tubular Steel and Wrought Iron Gates

Higher Security than Electromagnetic Locks

The IDC GL160 and 260 series electromechanical GateLoks are designed to provide access control and remote locking and unlocking capability for manual or automatic chain link, tubular steel and wrought iron sliding or swinging gates.

Made in the USA

Available in either failsafe (locked when energized) or failsecure (unlocked when energized) the electromechanical GateLok provides a higher degree of security than electromagnetic locks. Locking and unlocking may be accomplished with an access control such as a card reader, digital keypad or remote control.

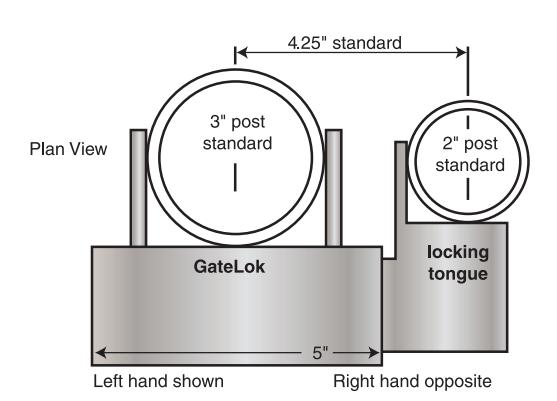

All GateLoks are designed for a 3" (76mm) fence post and 2" (51mm) gate post and are adaptable to smaller sizes.

Features

Higher Security than Electromagnetic Locks
Solid Stainless Steel 0.625" (15.9mm) diameter locking bolt
Continuous duty operation
Low current draw
Auto relock switch
Heavy gauge 0.125" (3.2mm)
Weather sealed steel housing
Access control compatible

Operation

The GL160A/GL260A GateLocks may be unlocked by an access control and remote control. While handing is required they are field reversible.

The GL163A GateLock may be unlocked by an access control, remote control and built-in keyswitch. Handing is required and they are not field reversible.

The GL263A GateLock may be unlocked by an access control, remote control and built-in mechanical key. The mechanical key is for momentary override and does not maintain a sustained unlocked mode. Handing is required and the lock is not field reversible.

Standard with all GateLocks the adjustable Auto Relock Switch keeps the bolt retracted until the gate is in the closed position.

International Door Closers, Inc.

Models

GL163AI Failsafe, built-in keyswitch 12/24VDC

GL260AH Failsecure 12/24VDC

GL160AI Failsafe, 12/24VDC

GL263AH Failsecure, built-in keyswitch, 12/24VDC GL260MRAH Failsecure, mechanical key release, 12/24VDC

Mortise key cylinder provided by others.

Hand

LH Left Hand RH Right Hand

Options

D Gate position sensor SPDT, 10Amp @ 30VDC B Bolt lock position sensor, 10Amp @ 30VDC

BR64XL Rectifier for AC operation

Specifications

Size 5"W x 6.5"H x 2"D (127 x 16.5 x 50.8mm)

Material 0.125 (3.2mm) Steel

Bolt 0.625" dia. x 0.625" throw (15.9mm x 15.9mm)

Key Cylinder ANSI 1.125" or 1.250"

Standard or interchangeable core mortise key cylinder.

Provided by others.

Failsafe 12/24 VDC 900/450mA Failsecure 12/24 VDC 900/450mA
