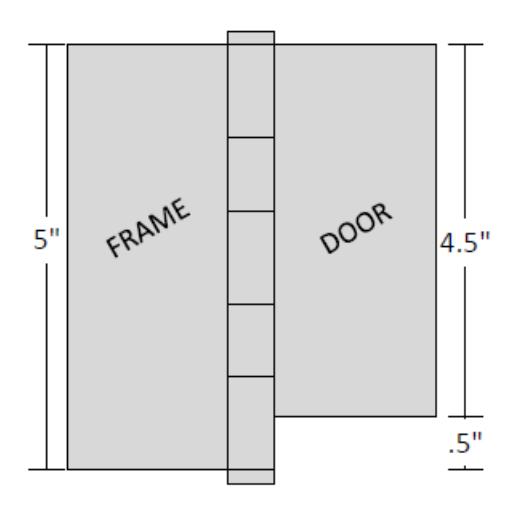

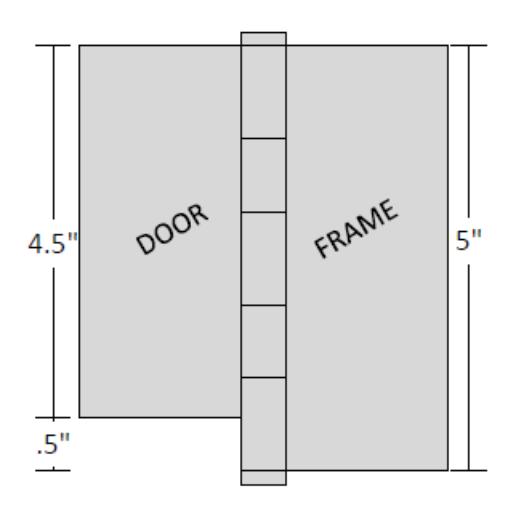

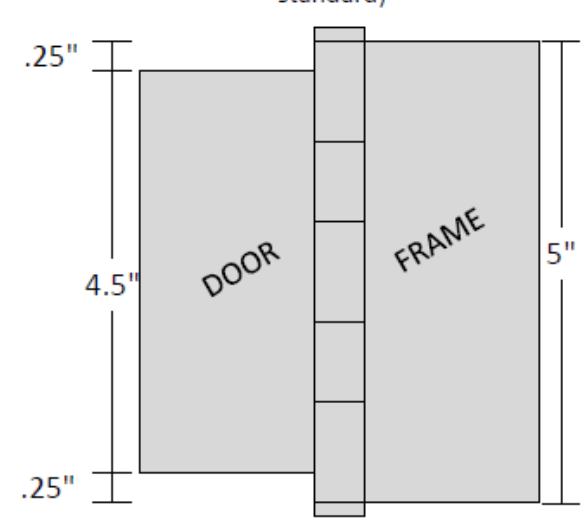

Visual Guide for Unequal Leaf Hinges
| Based on Hinge | Industrial Part |
|---|---|
| Model | Number |
| BB1279 | O-071 |
| BB1191 | X351 |
| BB1168 | T463 |
| BB1199 | E368 |
| Based on Hinge | Industrial Part |
|---|---|
| Model | Number |
| BB1279 | A580 |
| BB1191 | X350 |
| BB1168 | T461 |
| BB1199 | E367 |
G-ALL-EN-000.029 Rev. Date: 2-21-22 Rev. Level: 0
